1- Line, Bi-directional, Transient Voltage Suppressor-ESD5V0D3BA-TVS 5V VCC

Features

●Stand-off voltage:±5V Max

●Transient protection for each line according to

         IEC61000-4-2(ESD): ±30kV (contact)

         IEC61000-4-5(surge): 24A (8/20μs)

●Low leakage current:

●Ultra low clamping voltage

●RoHS Compliant

Applications

●Cellular Handsets and Accessories

●Personal Digital Assistants

●Notebooks and Handhelds

●Portable Instrumentation

●Peripherals

●Pagers Peripherals

●Desktop and Servers

Mechanical Characteristics

●Package:SOD-323

●Lead Finish:Matte Tin

●Case Material:"Green"Molding Compound

●Moisture Sensitivity: Level 1 per J-STD-020

●Marking Information: See Below



Product  Drawing

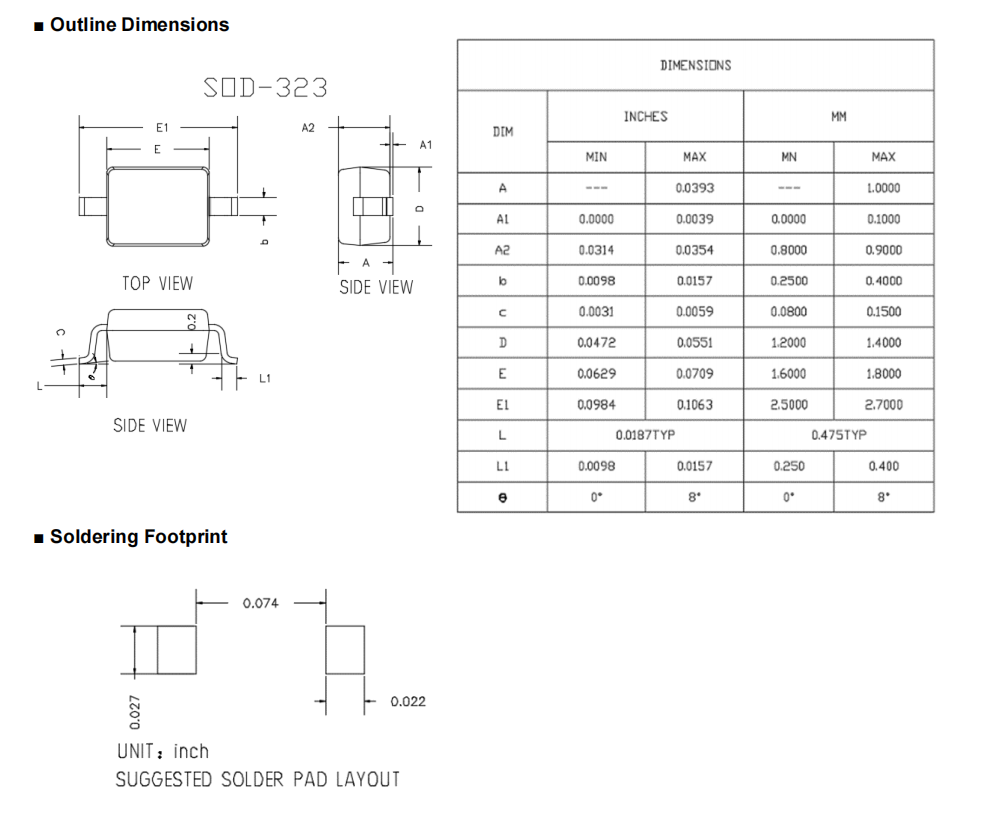

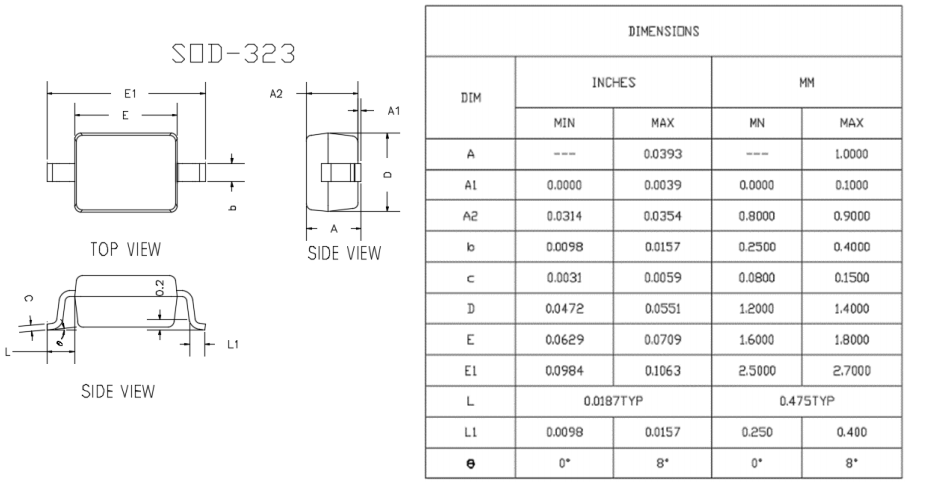

Outline Dimensions

Limiting Values (Absolute Maximum Rating)

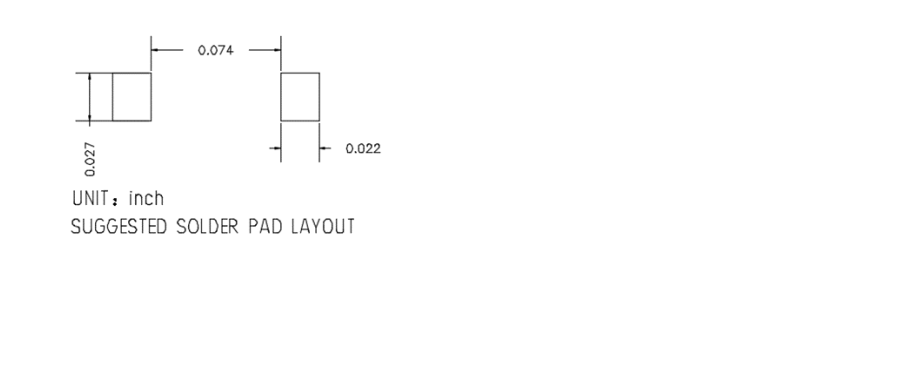

Soldering Footprint

Maximum Ratings

PARAMETER	SYMBOL	LIMITS	UNIT
Peak pulse power (tp  = 8/20μs)	Ppk	300	W
Peak pulse current (tp  = 8/20μs)	IPP	24	A
ESD according to IEC61000-4-2 air discharge	VESD	±30	KV
ESD according to IEC61000-4-2 contact discharge		±30
Junction temperature	TJ	125	oC
Operating temperature	TOP	-40~85	oC
Storage temperature	TSTG	-55~150	oC

Electrical Characteristics (Ta=25℃ Unless otherwise specified)

PARAMETER	Symbol	UNIT	Conditions	Min	Typ	Max
Reverse maximum working voltage	VRWM	V				±5
Reverse leakage current	IR	μA	VRWM  = 5V			0.5
Reverse breakdown voltage	VBR	V	IBR  = 1mA	5.5
Clamping voltage 1)	VCL	V	IPP  = 1A, tp  = 8/20μs		8.5	10
		V	IPP  = 10A, tp  = 8/20μs		9.5	11
		V	IPP  = 24A, tp  = 8/20μs		11	13
Junction capacitance	CJ	pF	VR  = 0V, f = 1MHz		66	80

Notes:

(1). Non-repetitive current pulse, according to IEC61000-4-5.

Ordering Information (Example)

PREFERED P/N	PACKING CODE	UNIT WEIGHT(mg)	MINIMUM PACKAGE(pcs)	INNER BOX QUANTITY(pcs)	OUTER CARTON QUANTITY(pcs)	DELIVERY MODE
ESD5V0D3BA	F2	Approximate 4	3000	30000	120000	7 reel
