ECM Condenser Fan Motor

•  High energy efficiency rating and variable speed design reduce energy
waste and lower costs
•   Long lifespan, reducing maintenance and replacement costs
•  Provide customized services based on requirments

TRUSTEC ECM Condenser Fan Motor Manufacturer in China

Based on signals such as system pressure and ambient temperature, the fan speed is automatically adjusted to prevent traditional AC motors from operating at full load under no-load conditions, significantly enhancing energy efficiency and system stability. Trustec designs and manufactures ECM condenser fan motors for air conditioners, commercial HVAC equipment, and other fields, helping you achieve energy saving, low noise operation and reliable performance. Based on years of export experience, we provide customized ECM motor solutions for suppliers in the global market.

ECM Condenser Fan Motor Types Trustec Can Offer

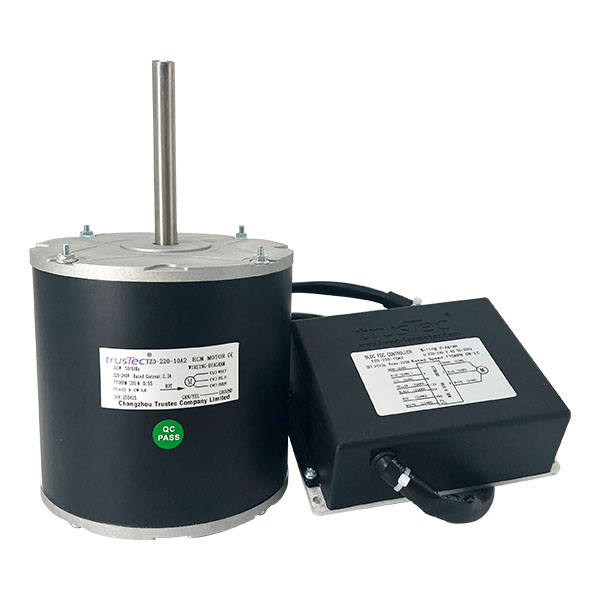

ECM Condenser Motor For Air Conditioner 220w 770RPM
Supply Voltage:  220-240V
Supply Frequency:   50/60HZ
Output Power:   220W
Speed:   770RPM
Current:  2.3A
Frame:   48 Frame
Poles:   10P
Insulation Class:   Class B
Rotation:   CCW(LE)

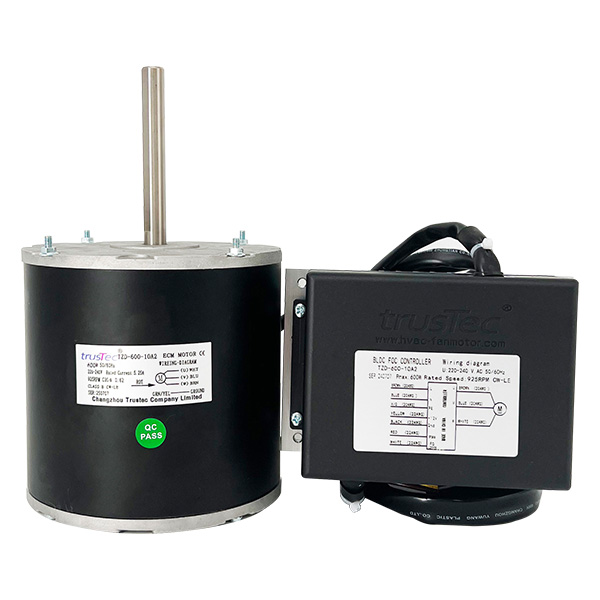

ECM Condenser Motor For Air Conditioner 600w 925RPM-1
Supply Voltage:    220-240V
Supply Frequency:    50/60HZ
Output Power:    600W
Speed:    925RPM
Current:    5.25A
Frame:    48 Frame
Poles: 10P
Insulation Class:    Class B
Rotation:    CW(LE)
Customized Solution-1
Customized according to requirments

Voltage options:  208-230V / 220 -240V
Output power and speed range customization
Shaft size, mounting and rotation direction

ECM Condenser Fan Motor Advantages

• ECM motors require less maintenance as there are no brushes to clean, inspect, or replace
• Higher motor efficiency and lower power consumption
• Speed can be adjusted by controlling the input DC Voltage
• Reduced heat generation and longer service life
• Can operate silently without producing a lot of acoustic noise
• Stable performance under different load conditions
ECM Condenser Motor For Air Conditioner 600w 925RPM-2

ECM Condenser Fan Motor Application

The ECM condenser fan motor is specifically designed for applications requiring condenser heat dissipation, installed in outdoor units of room air                                                                   conditioners, commercial air conditioners, central air conditioning sysytems, and similar equipment.

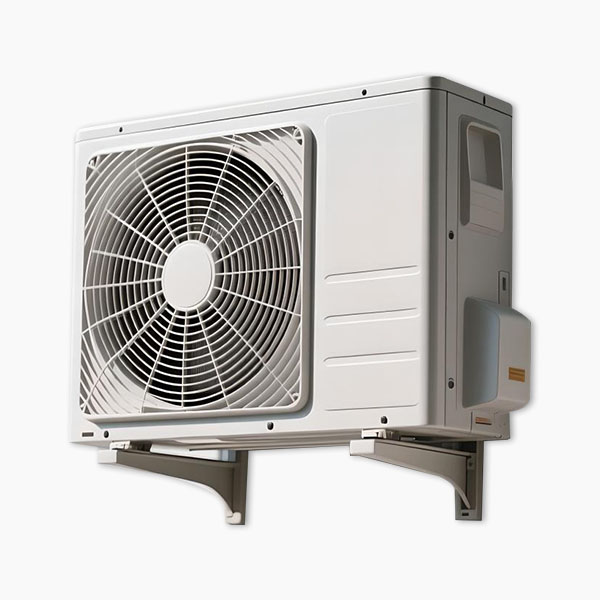

Air conditioner outdoor unit 1

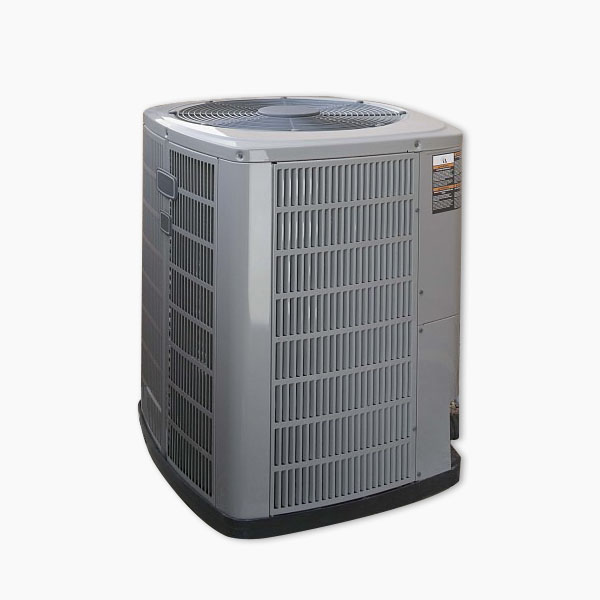

Air conditioner outdoor unit 2

Why Choose Our ECM Condenser Fan Motors

Trustec Advantages

•  Professional ECM condenser fan motor manufacturer
•  Trustec is able to provide customers unique ODM service and quality guarantee
•  All ECM condenser fan motors are produced under PDCA quality control process, and approved by ISO9001, CE, Rohs, also our ECM motors have UL certification
•  Trustec condenser fan motors are 100% exported to America, Europe, Mid-East, Aisa, and have been approved by the global market
•  Our company is attending HVAC/R fairs held in China, Aisa, Europe, Midd-East and America every year
•  We are growing into a reliable solutions provider and maintaining close relationships with global customers by offering one-stop services

Our Company

Changzhou trustec company limited, established in 2011, is a technological innovative enterprise focusing on the designing, manufacturing and sales of HVAC / air conditioner motors.
changzhou_trustec_com
Trustec-factory

Motors Packaging

Internal foam cushioning prevents shipping damage.
Sturdy corrugated cardboard boxws with clear labels for easy customs inspection.
Industrial stretch wrap packaging enhances carton stability while blocking moisture and dust.
Export-specific pallents compliant with global import regulations.
Trustec-factory7
motors packaging 2

ECM Condenser Fan Motor FAQ

  • Q How long you could prepare samples?

    A Normally 3 days if we have the sample in hand. If customized one, about a week around.

  • Q How about batch order production?

    A Normally 15-30 days.

  • Q How do you ship the goods?

    A By sea, by air, by courier ( UPS, DHL, Fedex, TNT etc) .

  • Q Can you design the motor according to the different request?

    A Yes, we can offer the ODM.

  • Q What is the warranty of the motors?

    A The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.

  • Q How to get the accurate offer?

    A The precise price will be quoted after checking the specification and mounting dimension of the motor.

Consult Your Trustec Experts

We help you avoid the pitfalls to deliver the quality and value your ECM condenser fan motors  need, on-time and on-budget.
