ECM Fan Coil Unit Motor OEM Supplier

• High efficiency and energy savings, low-noise operation, supports variable speed control, and longer lifespan
• Suitable for hotel central air conditioning systems, apartment fan coil systems,
commercial building HVAC equipement, etc
• Our ECM motors have obtained RoHS, CCC, CE, and UL certifications
• Trustec offers customization services, tailoring motors to your specific requirements
such as performance parameters and installation dimensions

TRUSTEC ECM Fan Coil Unit Motor Manufacturer

ECM is a high-efficiency brushless DC motor technology that achieves commutation through electronic control.
ECM fan coil unit motors  are widely used in HVAC fan coil systems to drive fans for air circulation and temperature regulation. Compared to AC motors, ECM motors offer significant advantages in energy efficiency, noise control, and speed regulation performance.

Trustec ECM FCU Motor Types

The models currently listed are our customized versions. If you require other specifications , please feel free to contact us at any time. Our technical team will customize the motor according to your requirements.

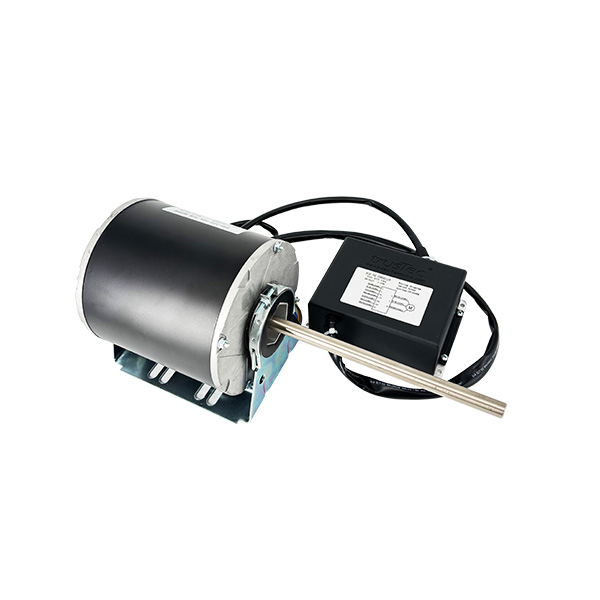

Fan Coil Unit Motor 375W 208-230V 500-2400PRM 1-1
Supply Voltage:  208-230V
Supply Frequency:   50/60HZ
Output Power:   375W
Speed:   500 - 2400 RPM
Current:  A
Frame:   48 Frame
Poles:   10P
Insulation Class:   Class B
Rotation:   CCW(LE)

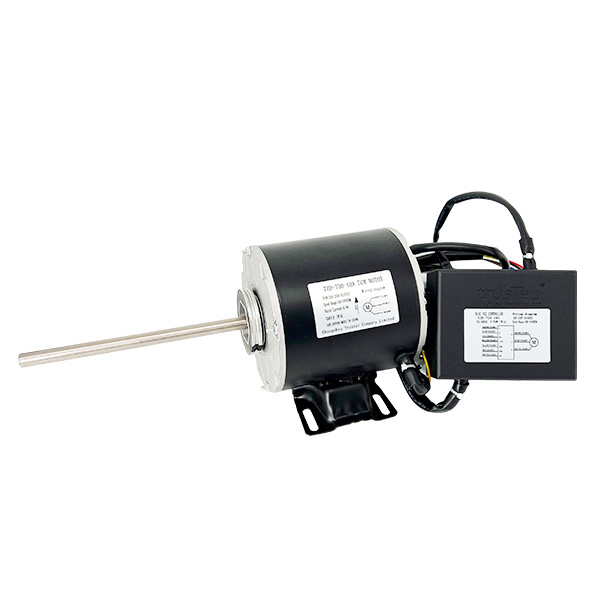

Fan Coil Unit Motor 750W 208-230V 500-2400PRM 1-1
Supply Voltage:    208-230V
Supply Frequency:    50/60HZ
Output Power:    750W
Speed:    500 - 2400 RPM
Current:    6.4A
Frame:    48 Frame
Poles: 10P
Insulation Class:    Class B
Rotation:    CW(LE)

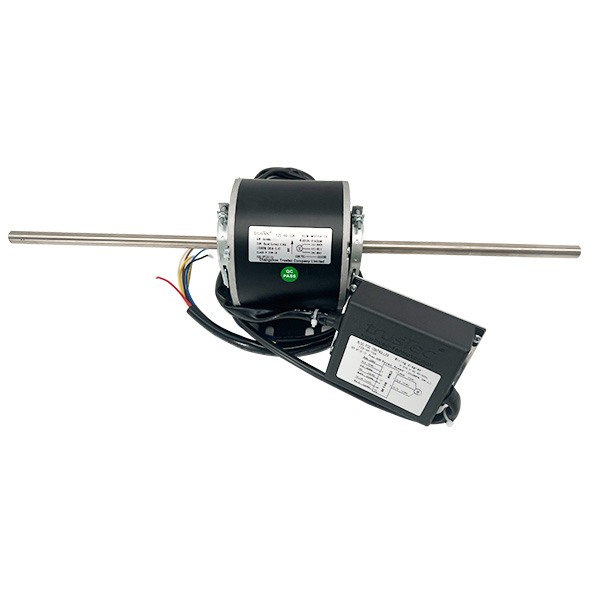

Fan Coil Unit Motor 60W 310V 1300RPM 4-1
Supply Voltage:  310V
Supply Frequency:   50/60HZ
Output Power:   60W
Speed:   1300 RPM
Current:  0.66A
Frame:   42 Frame
Poles:   10P
Insulation Class:   Class F
Rotation:   CCW(LE)

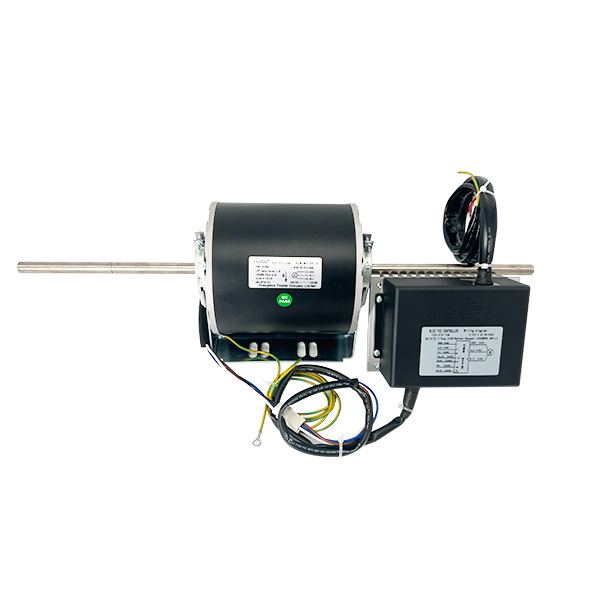

Fan Coil Unit Motor 375W 310V 1300RPM 2-1
Supply Voltage:    310V
Supply Frequency:    50/60HZ
Output Power:    375W
Speed:    1300 RPM
Current:    0.64A
Frame:    48 Frame
Poles: 10P
Insulation Class:    Class F
Rotation:    CW(LE)

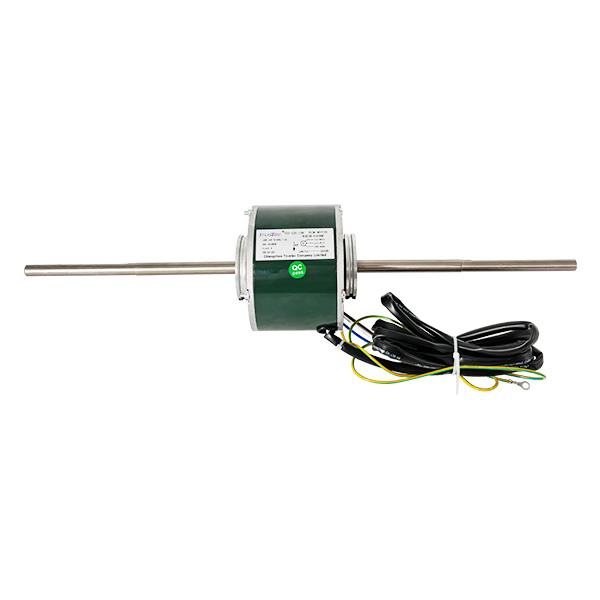

Fan Coil Unit Motor 125W 120V 300-1600RPM 1-1
Supply Voltage:  120V
Supply Frequency:   50/60HZ
Output Power:   125W
Speed:   300 - 1600 RPM
Current:  2.1A
Frame:   42 Frame
Poles:   10P
Insulation Class:   Class B
Rotation:   CCW(LE)

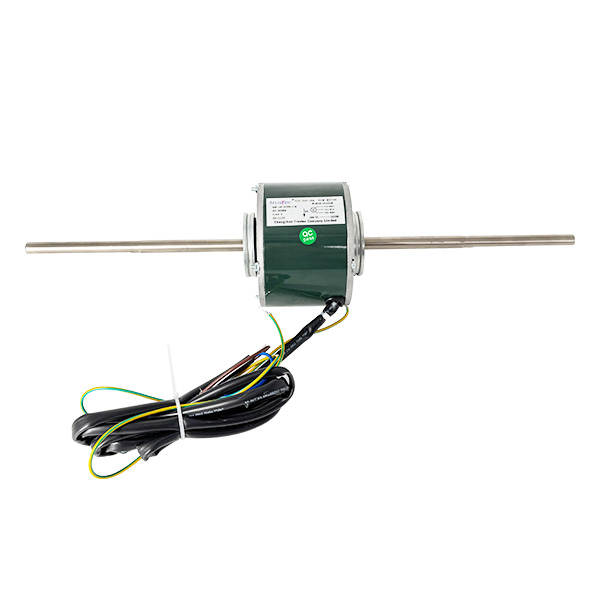

Fan Coil Unit Motor 250W 120V 300-1600RPM 1-1
Supply Voltage:    120V
Supply Frequency:    50/60HZ
Output Power:    250W
Speed:    300 - 1600 RPM
Current:    4.2A
Frame:    42 Frame
Poles: 10P
Insulation Class:    Class B
Rotation:    CCW(LE)

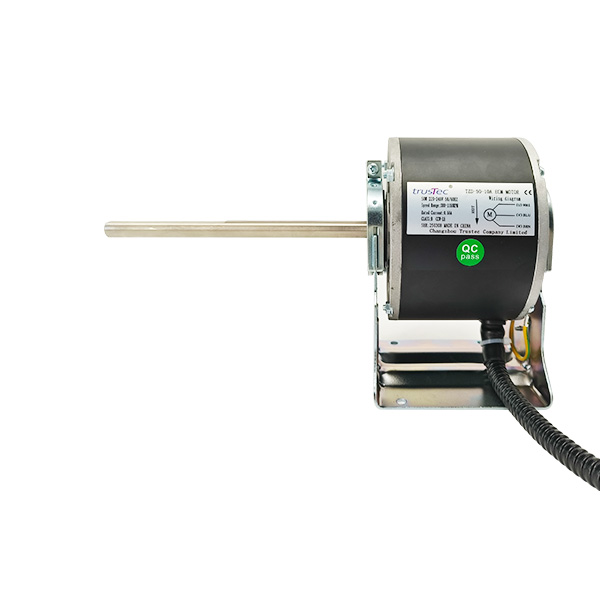

Fan Coil Unit Motor 50W 220-240V 300-1150RPM 1-1
Supply Voltage:  220 - 240V
Supply Frequency:   50/60HZ
Output Power:   50W
Speed:   300 - 1150 RPM
Current:  0.56A
Poles:   10P
Insulation Class:   Class B
Rotation:   CCW(LE)
Single Shaft

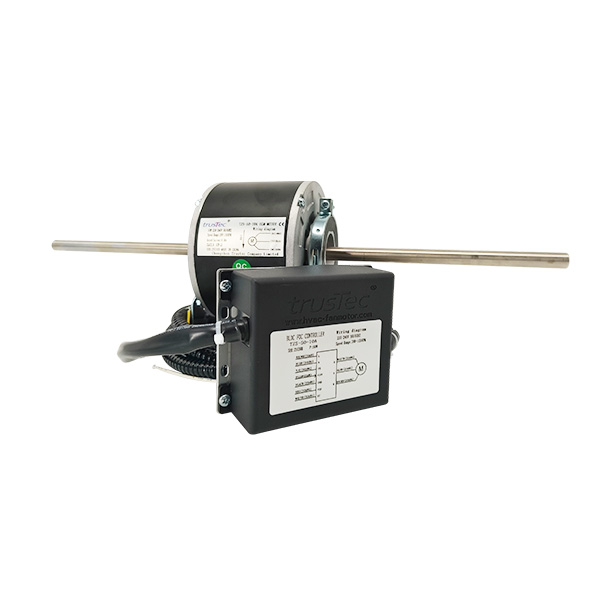

Fan Coil Unit Motor 50W 220-240V 300-1150RPM 1-1
Supply Voltage:    220-240V
Supply Frequency:    50/60HZ
Output Power:    50W
Speed:    300-1150 RPM
Current:    0.56A
Poles: 10P
Insulation Class:    Class B
Rotation:    CCW(LE)
Double Shaft

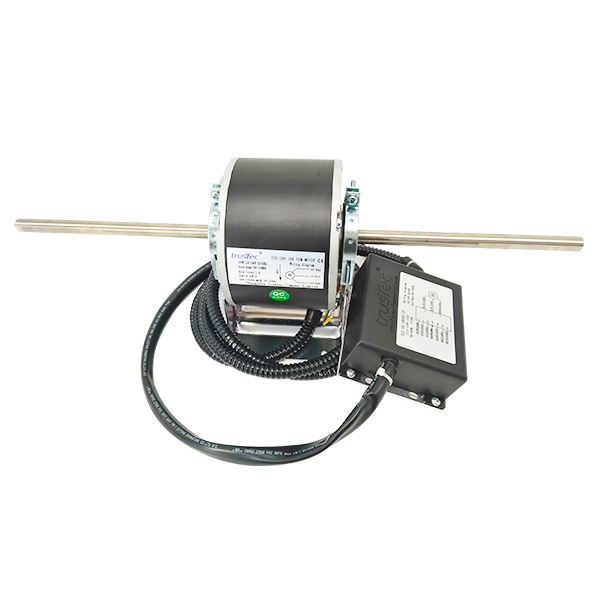

Fan Coil Unit Motor 100W 220-240V 300 - 1250 RPM 3-1
Supply Voltage:  220 - 240V
Supply Frequency:   50/60HZ
Output Power:   100W
Speed:   300 - 1250 RPM
Current:  1.1A
Poles:   10P
Insulation Class:   Class B
Rotation:   CCW(LE)
Customized Solution-1
Customized according to requirments

Voltage options:  208-230V / 220 -240V
Output power and speed range customization
Shaft size, mounting and rotation direction
Not sure which ECM motor fits your system?
share your airflow, static pressure, and control setup. We'll recommend
a model that actually works for your application



Fan Coil Unit Motor Features

• High Efficiency

ECM FCU motors use electronic commutation, which helps reduce energy waste. Even under load, the motor still runs efficiently--typically saving 30%-70% compared to traditional motors.

• Low Noise

The optimization of the ECM motor structure results in less vibration and lower noise during operation. It is used in noise-sensitive environments, such as hotels and hospitals

• Flexible Speed Control

ECM motor speed control options include 0-10V or PWM, you can adjust the speed according to your application to meet various requirements.

• Longer Lifespan

ECM fan coil unit motors use electronic control for commutation, which reduces mechanical wear and helps extend the motor's service life.
Fan Coil Unit Motor 100W 220-240V 300 - 1250 RPM 3-1

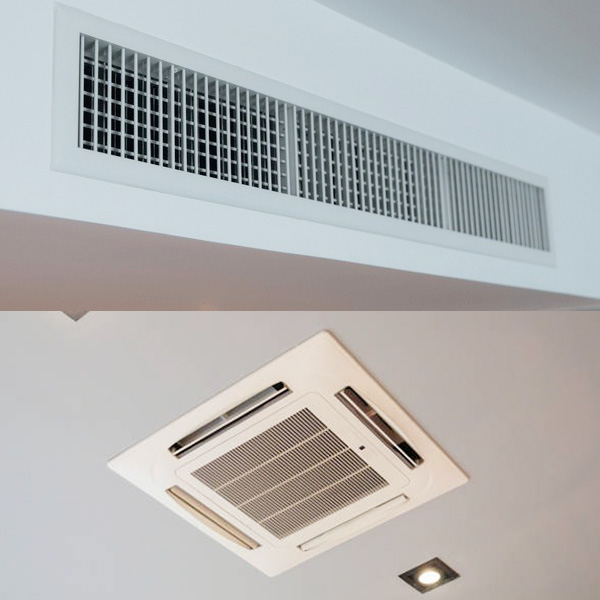

ECM Blower Motor Application 2
Fan Coil Unit Motor Application
ECM motors are highly efficient, energy-saving, and low-noise, and are used in a wide range of HVAC systems
Hotel HVAC system: guest rooms, hall, corridor fan coil units, low-noise operation that does not disturb guests.
Commercial buildings: central air conditioning terminals for office buildings and shopping malls, meeting the requirements for long-term operation.
Air conditioning for apartments and residential buildings: high-end apartments and residential  community fan coil units, quiet operation, better licing comfort
Schools and publish buildings: air conditiong systems for classrooms, libraries, and office buildings
Which type of ECM motor is suitable for your project? Tell us about your application and parameter requirements, and we will provide you with selection and customization services.
changzhou_trustec_com
Trustec-factory7



Why Choose Our ECM Fan Coil Unit Motors

Trustec is an original equipment manufacturer (OEM) specializing in HVAC ECM motors, providing stable supply and reliable product quality.


Customization Capability

With strong design and manufacturing capabilities, Trustec support customized fan coil unit motor, including:
•  Performance specifications
•  Electrical parameters
•  Mounting dimensions
•  Application-specific designs


Quality Guarantee

•  All ECM fan coil unit motors from Trustec are manufactured by following the ISO9001 management system
•  ECM motor enjoy at least 2 full years warranty since leaving the factory
•  100% replacement is guaranteed for any defect among the warranty period
•  Our ECM HVAC motors have been approved by RoHS, CCC, CE and UL certificates
•  Trustec ECM motors are 100% exported to American, Eurpoe, Mid-East, Asia, and have been approved by the global market


Motors Packaging

Foam And Cardboard Box And Stretch Film And Wooden Pallet
•  Internal foam cushioning prevents shipping damage.
•  Sturdy corrugated cardboard boxws with clear labels for easy customs inspection.
•  Industrial stretch wrap packaging enhances carton stability while blocking moisture and dust.
•  Export-specific pallents compliant with global import regulations.

ECM Blower Motor FAQ

  • Q How long you could prepare samples?

    A Normally 3 days if we have the sample in hand. If customized one, about a week around.

  • Q How about batch order production?

    A Normally 15-30 days.

  • Q How do you ship the goods?

    A By sea, by air, by courier ( UPS, DHL, Fedex, TNT etc) .

  • Q Can you design the motor according to the different request?

    A Yes, we can offer the ODM.

  • Q What is the warranty of the motors?

    A The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.

  • Q How to get the accurate offer?

    A The precise price will be quoted after checking the specification and mounting dimension of the motor.

Consult Your Trustec Experts

We help you avoid the pitfalls to deliver the quality and value your ECM condenser fan motors  need, on-time and on-budget.
