1-Line, Bi-directional, Transient Voltage Suppressor-ESD5V0D5BS-TVS 5V VCC

Features

● Stand-off voltage:±5V Max

● Transient protection for each line according to

           IEC61000-4-2(ESD):±30kV (contact)

           IEC61000-4-4 (EFT):40A (5/50ns)

           IEC61000-4-5(surge):8A (8/20μs)

● Ultra-low capacitance:CJ=10pF typ

● Low leakage current

● Low clamping voltage: VCL =10V typ. @ IPP = 16A  (TLP)

● Solid-state silicon technology

Mechanical Characteristics

● Package: SOD-523

● Terminals: Tin plated leads, solderable per  J-STD-002 and JESD22-B102

● Polarity: No marking on bi-directional types

● Marking:

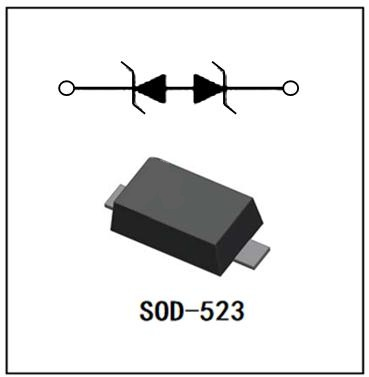

Product  Drawing

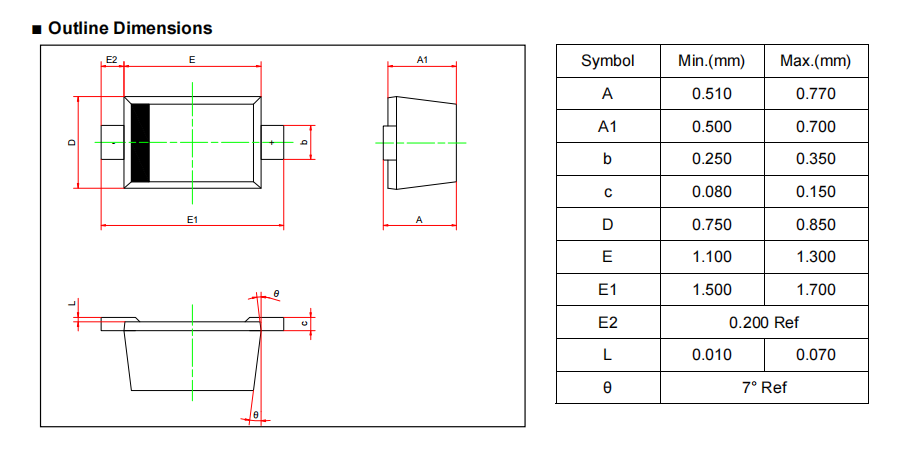

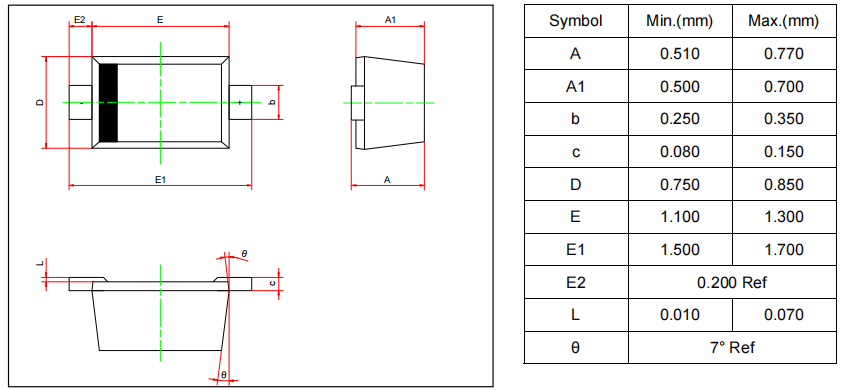

Outline Dimensions

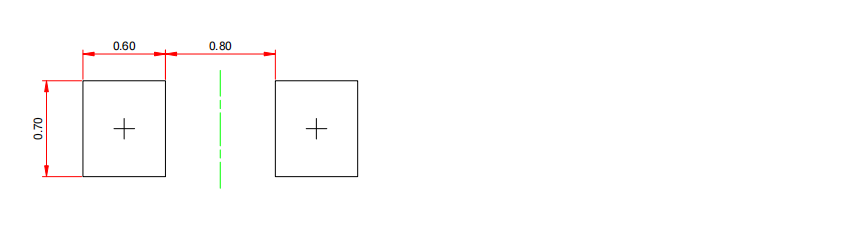

Recommend land pattern (Unit:mm)

Maximum Ratings

PARAMETER	SYMBOL	Rating	UNIT
Peak pulse power (tp  = 8/20μs)	Ppk	96	W
Peak pulse current (tp  = 8/20μs)	IPP	8	A
ESD according to IEC61000-4-2 air discharge	VESD	±30	KV
ESD according to IEC61000-4-2 contact discharge		±30	KV
Junction temperature	TJ	125	oC
Operating temperature	TOP	-40~85	oC
Storage temperature	TSTG	-55~150	oC

Electrical Characteristics (Ta=25℃ Unless otherwise specified)

PARAMETER	Symbol	UNIT	Conditions	Min	Typ	Max
Reverse maximum working voltage	VRWM	V				±5.0
Reverse leakage current	IR	nA	VRWM  =5V			100
Reverse breakdown voltage	VBR	V	IBR  = 1mA	5.3	6
Reverse holding voltage	VHOLD	V	IHOLD  = 50mA	5.3	6
Clamping voltage 1)	VCL	V	IPP  = 16A, tp  = 100ns		10
Dynamic resistance 1)	RDYN	Ω			0.2
Clamping voltage 2)	VCL	V	VESD  = 8kV		10
Clamping voltage 3)	VCL	V	IPP  = 1A, tp  = 8/20μs			8
		V	IPP  = 8A, tp  = 8/20μs			12
Junction capacitance	CJ	pF	VR  = 0V, f = 1MHz		10	13
		pF	VR  = 2.5V, f = 1MHz		8	11

(1). TLP parameter: Z0  = 50Ω, tp  = 100ns, tr  = 2ns, averaging window from 60ns to 80ns. RDYN  is calculated from 4A to 16A.

(2). Contact discharge mode, according to IEC61000-4-2.

(3). Non-repetitive current pulse, according to IEC61000-4-5.

Ordering Information (Example)

PREFERED P/N	PACKING CODE	UNIT WEIGHT(mg)	MINIMUM PACKAGE(pcs)	INNER BOX QUANTITY(pcs)	OUTER CARTON QUANTITY(pcs)	DELIVERY MODE
ESD5V0D5BS	F3	Approximate 0.9	3 000	30 000	120 000	Tape & reel
