1-Line,Transient Voltage Suppressor For ESD Protection - ESD12VF1 - TVS 12V VCC

Features

● Ultra small package

● Stand-off    voltage:5V~36V

● Transient protection for each line according to

              IEC61000-4-2(ESD):±30kV(contact)

              IEC61000-4-4(EFT):80A(5/50ns)

              IEC61000-4-5(surge):8/20μs waveform:IppM see Table 4

● Low clamping voltage

● RoHS Compliant

Applications

● Power supply protection

● Power management

● Battery Contacts

Mechanical Characteristics

● Package:SOD-123FL

● Case Material:"Green"Molding Compound

● Moisture Sensitivity:Level 1  per J-STD-020

● Marking  Information:See Below

  XX:Marking  Cdoe

    Uni-directional        Bi-directional

For uni-directional types the band denotes cathode end,no marking on bi-directional types

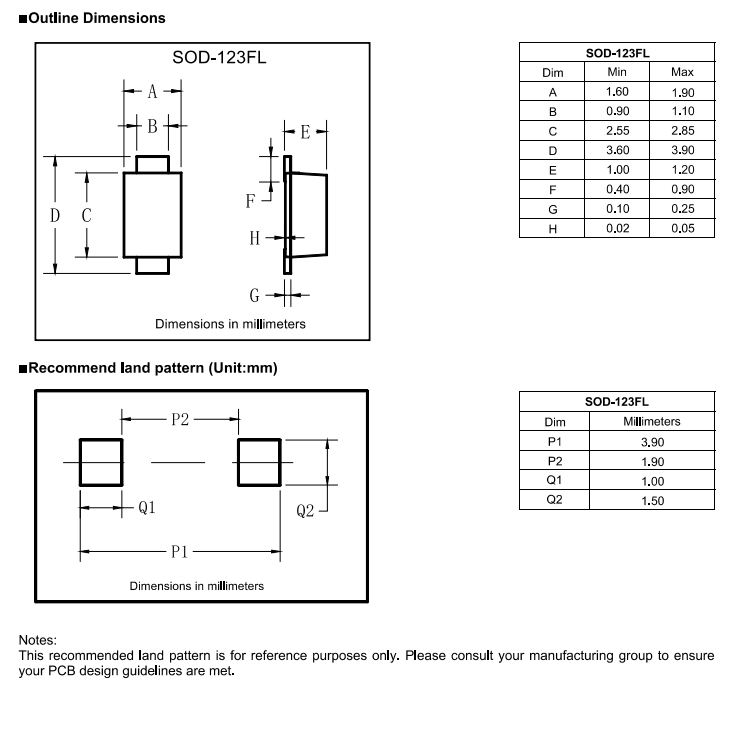

Product  Drawing

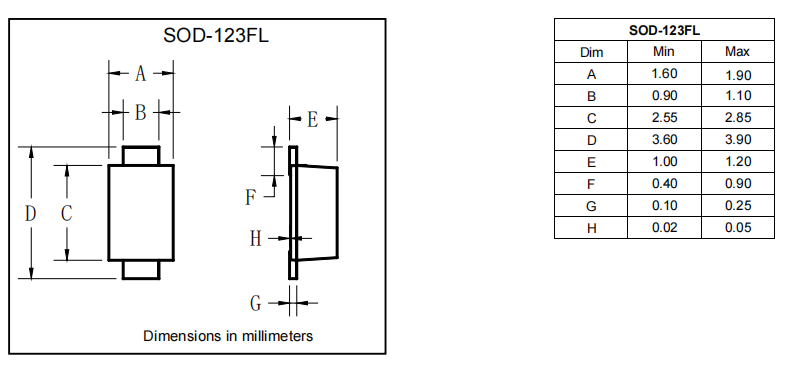

Outline  Dimensions

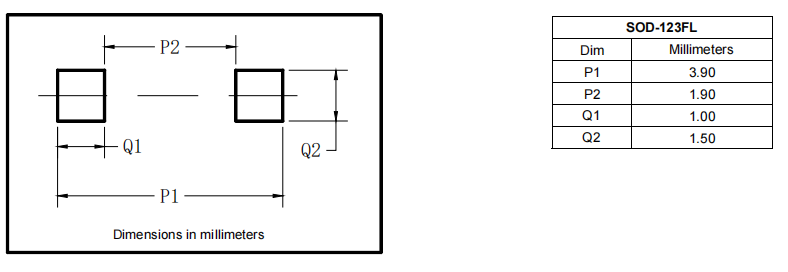

Recommend  land  pattern  (Unit:mm)

Notes:

This recommended land pattern is for reference purposes only.Please consult your manufacturing group to ensure your PCB design guidelines are met.

Limiting Values (Absolute Maximum Rating)

Absolute Maximum Ratings(Ta=25℃ unless otherwise specified)

PARAMETER	SYMBOL	VALUE	UNIT
Peak pulse power(tp=8/20μs)	Ppk	1300	W
ESD IEC61000-4-2(ESD)Air	VESD	±30	KV
ESD IEC61000-4-2(ESD)Contact		±30	KV
Operating Temperature Range	TJ	-55~150	℃
Storage Temperature Range	TSTG	-55~150	℃

Electrical Characteristics (Ta=25℃ Unless otherwise specified)

Uni-directional

Part Number	Marking Code	Reverse Working Voltage VRWM(V)	Breakdown Voltage VBR(V)@IT			Reverse Leakage Current lR(μA)@VRWM	Forward Voltage VF(V)@IF=10mA		Junction Capacitance Cj(pF)@ VR=0V,f=1MHz
		Max	Min	Max	IT mA	Max	Min	Max	Typ	Max
ESD5VOF1	05	5	6.4	7.1	10	400	0.45	1.5	1600	2000
ESD7VOF1	07	7	7.7	8.7	1	100	0.45	1.5	900	1200
ESD12VF1	12	12	13.2	15	1	2.5	0.45	1.5	600	900
ESD15VF1	15	15	16.5	19	1	1	0.45	1.5	450	700
ESD18VF1	18	18	20.0	23	1	1	0.45	1.5	400	600
ESD24VF1	24	24	26.7	30	1	1	0.45	1.5	270	400
ESD36VF1	36	36	40	45	1	1	0.45	1.5	200	300

Bi-directional

Part Number	Marking Code	Reverse Working Voltage VRWM(V)	Breakdown Voltage VBR(V)@IT			Reverse Leakage Current IR(μA)@VRWM	Junction Capacitance Cj(pF)@VR=0V,f=1MHz
		Max	Min	Max	IT mA	Max	Typ	Max
ESD5VOF1B	5B	5	6.4	7.1	10	400	850	1200
ESD7VOF1B	7B	7	7.7	8.7	1	100	700	900
ESD12VF1B	12B	12	13.2	15	1	2.5	400	600
ESD15VF1B	15B	15	16.5	19	1	1	250	400
ESD18VF1B	18B	18	20.0	23	1	1	170	250
ESD24VF1B	24B	24	26.7	30	1	1	160	240
ESD36VF1B	36B	36	40	45	1	1	100	160

Part Number		Rated peak pulse current IPP(A)¹)	Clamping voltage VCL(V)@IPP(A))
Uni	Bi	Max	Typ	Max
ESD5VOF1	ESD5VOF1B	105	-	12
ESD7VOF1	ESD7VOF1B	85		16
ESD12VF1	ESD12VF1B	50		26
ESD15VF1	ESD15VF1B	40	-	32
ESD18VF1	ESD18VF1B	35	-	38
ESD24VF1	ESD24VF1B	25	-	51
ESD36VF1	ESD36VF1B	17	-	75

Notes:

(1).Non-repetitive current pulse,according to IEC61000-4-5.(8/20μs current waveform).
