1-Line,Uni-directional,Transient Voltage Suppressor- ESD2V1L-TVS 1.8V VCC

Features

● Ultra small package

● Stand-off voltage: 2.1V Max

● Transient protection for each line according to

               IEC61000-4-2(ESD): ±8kV(contact)

               IEC61000-4-5(surge): 14A(8/20μs)

● Low leakage current

● Low clamping voltage

● RoHS Compliant

Applications

● Power supply protection

● Power management

Mechanical Characteristics

● Package: DFN1006-2L

● Case  Material: "Green"Molding  Compound.

● Moisture Sensitivity: Level 3 per J-STD-020

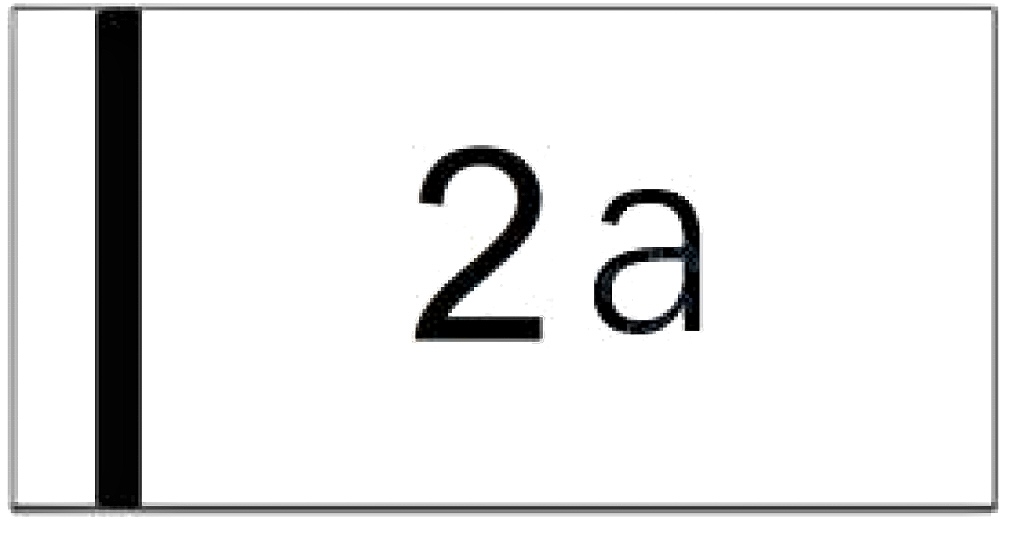

● Marking  Information: See Below

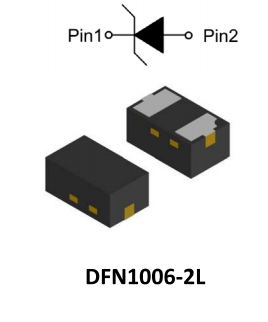

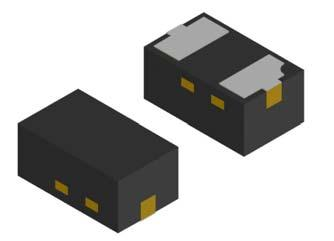

Product Drawing

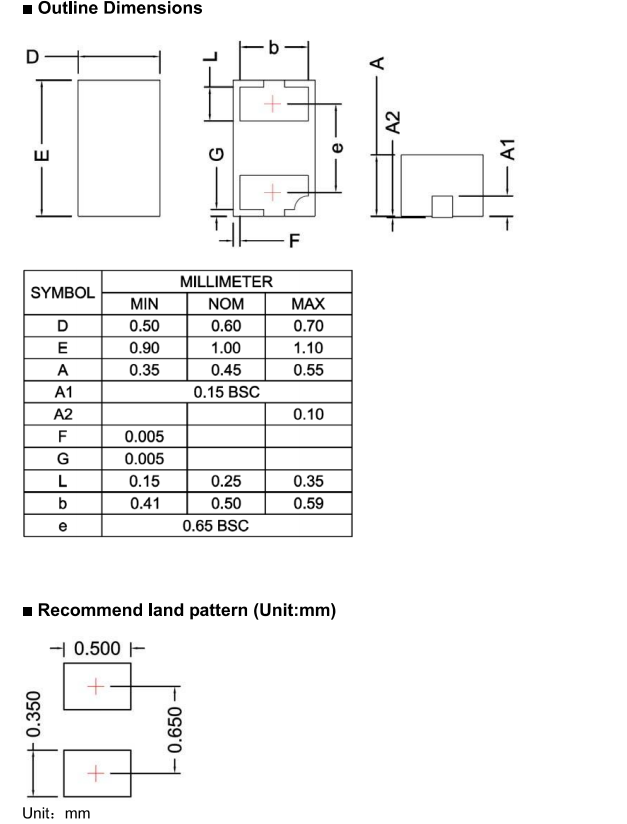

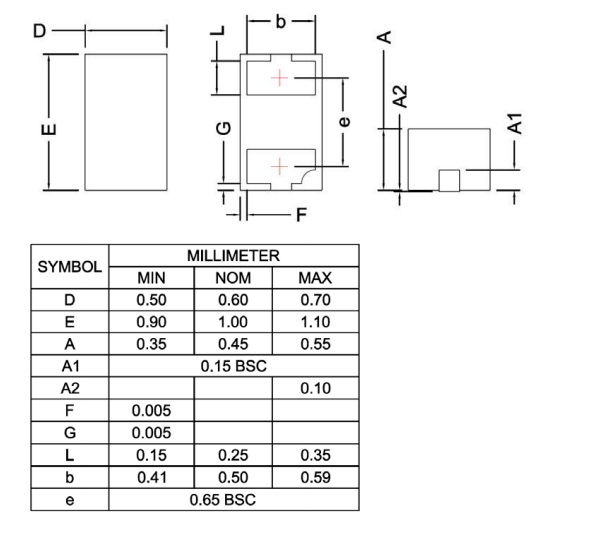

Outline Dimensions

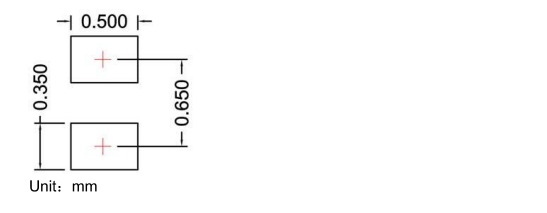

Recommend land pattern(Unit:mm)



Absolute Maximum Ratings(Ta=25℃ unless otherwise specified)

PARAMETER	SYMBOL	Rating	UNIT
Peak pulse power(tp=8/20μs)	Ppk	126	W
Peak pulse current (tp=8/20μs)	lpp	14	A
ESD according to IEC61000-4-2 air discharge	VESD	±30	KV
ESD according to IEC61000-4-2 contact discharge		±8	KV
Junction temperature	TJ	-55~125	℃
Storage temperature	TSTG	-55~150	℃

Electrical Characteristics (Ta=25℃ Unless otherwise specified)

PARAMETER	Symbol	UNIT	Conditions	Min	Typ	Max
Reverse maximum working voltage	VRWM	V				2.1
Reverse leakage current	IR	uA	VRWM=2.1V			1
Reverse breakdown voltage	VBR	V	IBR =1mA	2.5		6
Forward voltage	VF	V	IF=10mA	0.2		1.25
Clamping voltage ³3	VCL	V	lpp=1A,tp=8/20μs		3.7	5
		V	lpp=16A,tp=8/20μs		7.5	9.5
Junction capacitance	CJ	pF	VR=0V,f=1MHz		21

Notes:

(1).TLP parameter: Zo=50Ω,t=100ns,tr=2ns,averaging window from 60ns to 80ns.RoYn is calculated from 4A to   16A.

(2).Contact discharge mode,according to IEC61000-4-2.

(3).Non-repetitive current pulse,according to IEC61000-4-5.

Ordering Information (Example)

PREFERED P/N	UNIT WEIGHT(mg)	MINIMUM PACKAGE(pcs)	INNER BOX QUANTITY(pcs)	OUTER CARTON QUANTITY(pcs)	DELIVERY MODE
ESD2V1L	Approximate 0.9	10000	100000	400000	Tae&reel
