4-Line, Uni-directional, Ultra-low Capacitance, Transient Voltage Suppressor- SESDULC3304P5 - TVS 3.3V VCC

Features

● Stand-off voltage: 3.3V Max

● Transient protection for each line according to

              IEC61000-4-2(ESD): ±15kV (contact)

              IEC61000-4-5(surge): 7A (8/20μs)

● Ultra-low capacitance: CJ = 0.4 pF typ

● Low leakage current

● Low clamping voltage

● Up to 4 lines protects

● RoHS Compliant

Applications

● HDMI 2.0, USB 3.0/3.1 Type C

● Monitors and flat panel displays

● Set-top box and Digital TV

● MDDI ports

● Video graphics cards

● Digital Video Interface (DVI)

● Notebook Computers

● PCI Express and Serial SATA Ports

  *Caution:  This Device is designed for signal line protection only.  Not intended to be used under bias, not for                                              application  with a power line.

Mechanical Date

● Lead Finish: Matte Tin

● Case Material: "Green" Molding Compound.

● Moisture Sensitivity: Level 3 per J-STD-020

● Marking Information: See Below

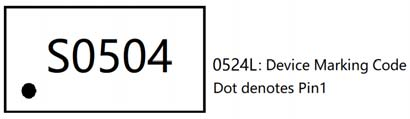

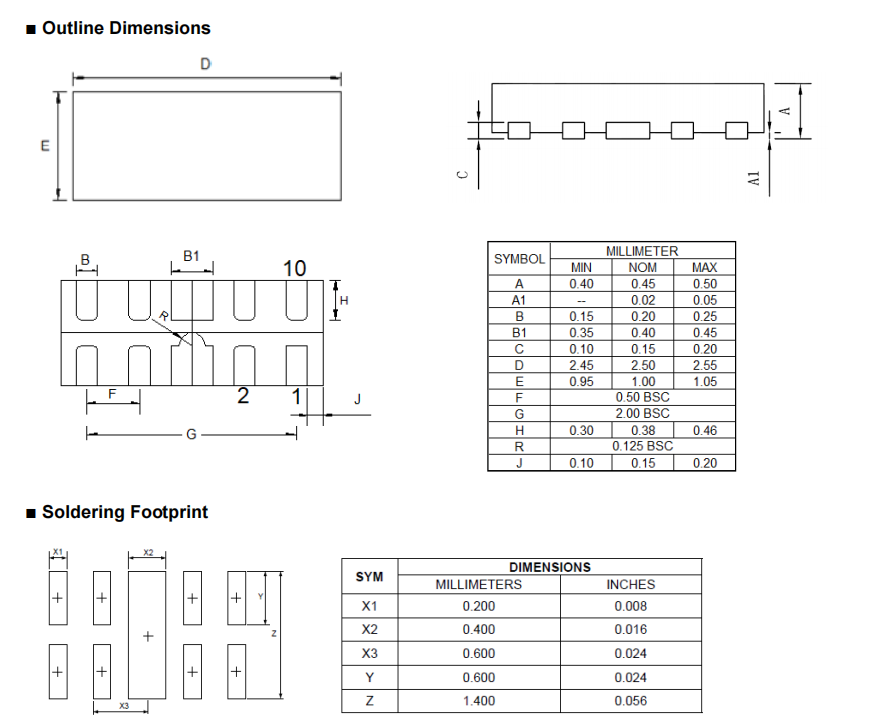

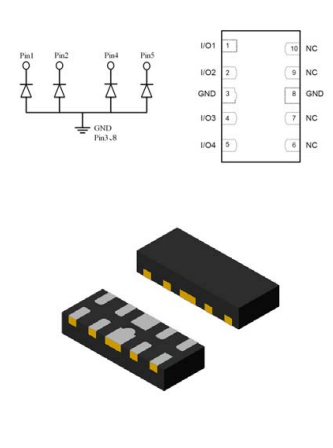

Product  Drawing

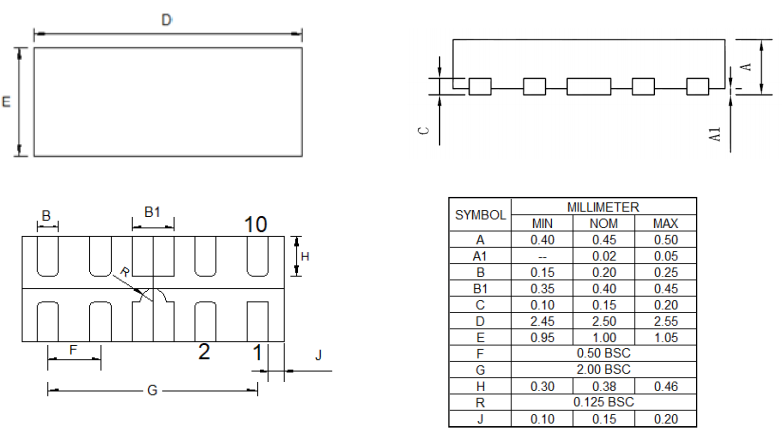

Outline  Dimensions

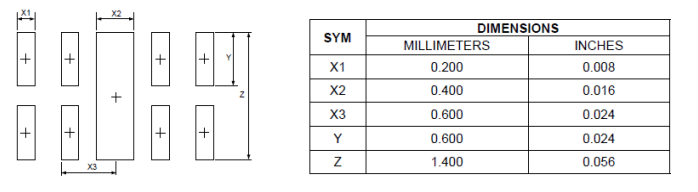

Soldering Footprint

Notes:

This recommended land pattern is for reference purposes only. Please consult your manufacturing group to ensure your PCB  design guidelines are met.

Limiting Values (Absolute Maximum Rating)

Limiting

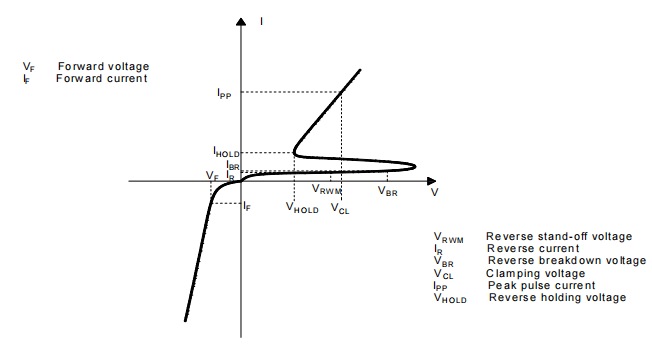

Definitions of electrical characteristics

Maximum Ratings

PARAMETER	SYMBOL	LIMITS	UNIT
Peak pulse power (tp  = 8/20μs)	Ppk	56	W
Peak pulse current (tp  = 8/20μs)	IPP	7	A
ESD according to IEC61000-4-2 air discharge	VESD	±15	KV
ESD according to IEC61000-4-2 contact discharge		±15
Junction temperature	TJ	-55~125	oC
Storage temperature	TSTG	-55~150	oC

Electrical Characteristics (Ta=25℃ Unless otherwise specified)

PARAMETER	Symbol	UNIT	Conditions	Min	Typ	Max
Reverse maximum working voltage	VRWM	V	Any I/O pin to ground			3.3
Reverse leakage current	IR	nA	VRWM  = 3.3V, any I/O pin to ground			200
Reverse breakdown voltage	V(BR)	V	IT = 1mA, any I/O pin to ground	6.0	8.0	10.0
Reverse holding voltage	VHOLD	V	IHOLD  = 50mA, any I/O pin to ground		2
Clamping voltage 1)	VCL	V	IPP= 16A, tp  = 100ns		3.2
Clamping voltage 2)	VCL	V	IPP= 1A, tp  = 8/20μs		2.5	5
		V	IPP= 7A, tp  = 8/20μs		4.5	8
Junction capacitance	CJ	pF	VR  = 0V, f = 1MHz   Any I/O pin to GND		0.4	0.55
			VR  = 1.5V, f = 1MHz Any I/O pin to GND		0.3	0.45

Notes:

(1) TLP parameter: Z0 = 50Ω, tp = 100ns, tr = 2ns, averaging window from 60ns to 80ns.

(2) Non-repetitive current pulse, according to IEC61000-4-5.

Ordering Information (Example)

PREFERED P/N	PACKING CODE	UNIT WEIGHT(mg)	MINIMUM PACKAGE(pcs)	INNER BOX QUANTITY(pcs)	OUTER CARTON QUANTITY(pcs)	DELIVERY MODE
SESDULC3304P5	F1	Approximate 3.48	3000	30000	120000	7 reel
