YDK-125-8A62（K55HXJPM-9251）-CXY
trusTec
48 Frame
125W 1/6HP
825RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|
Detailed Product Description

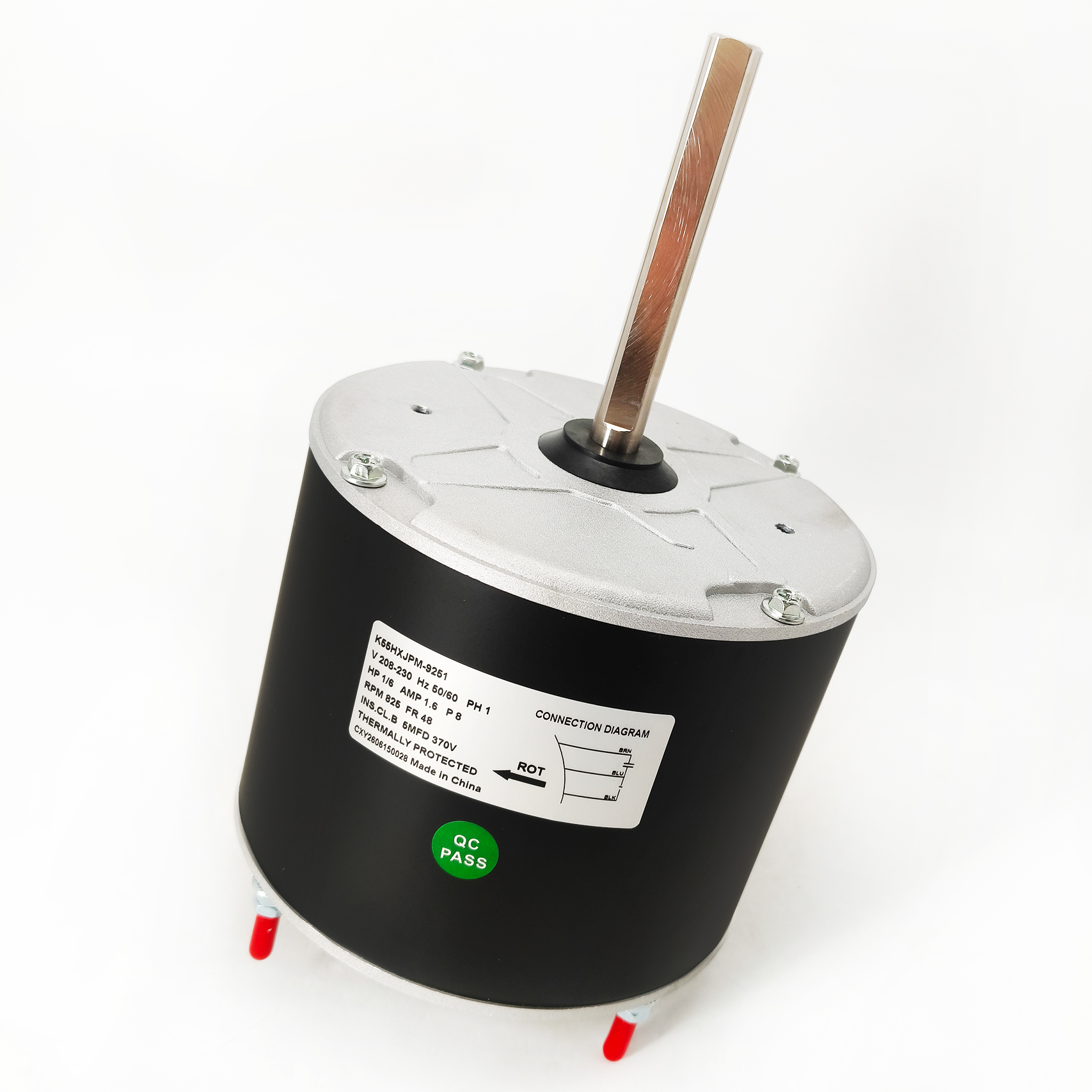

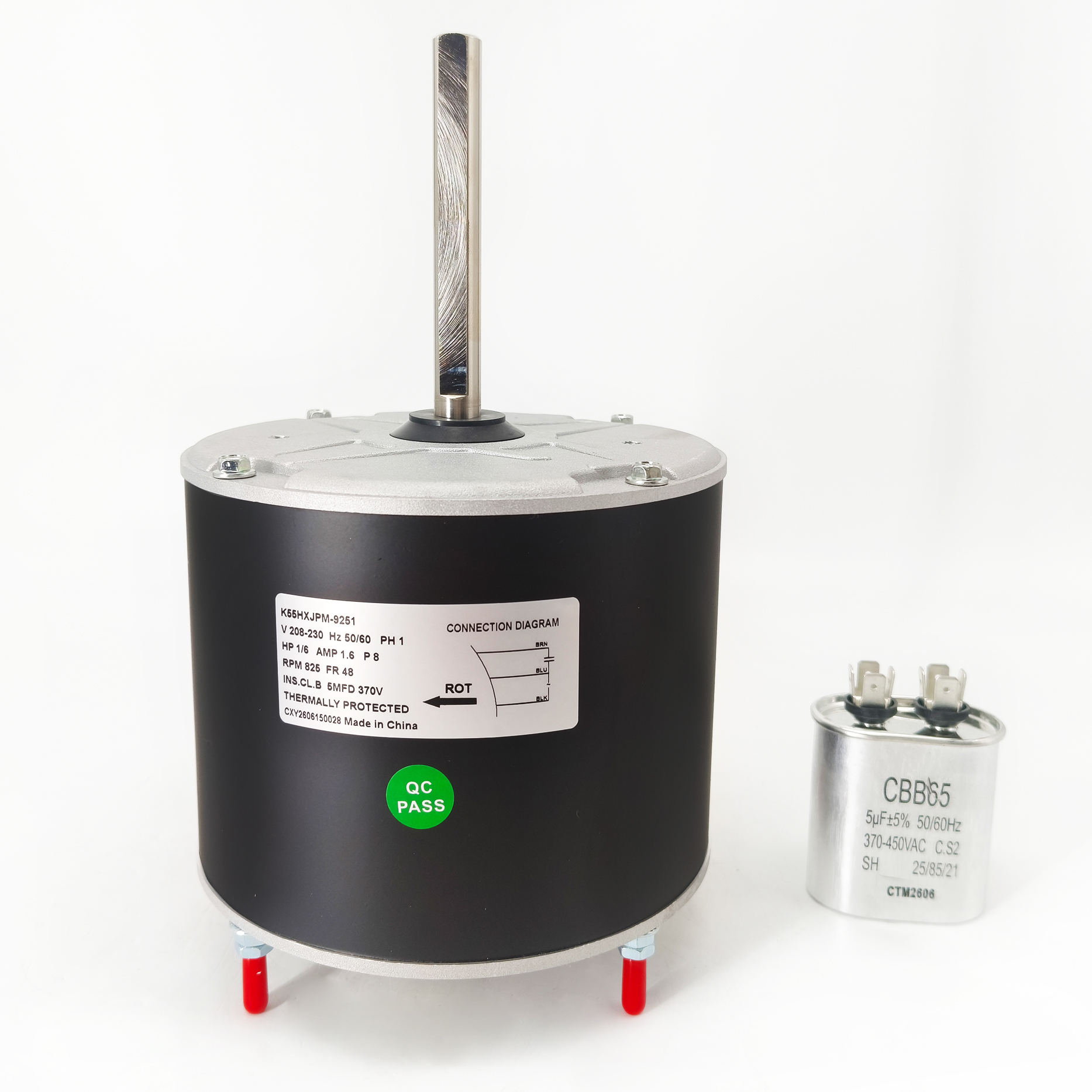

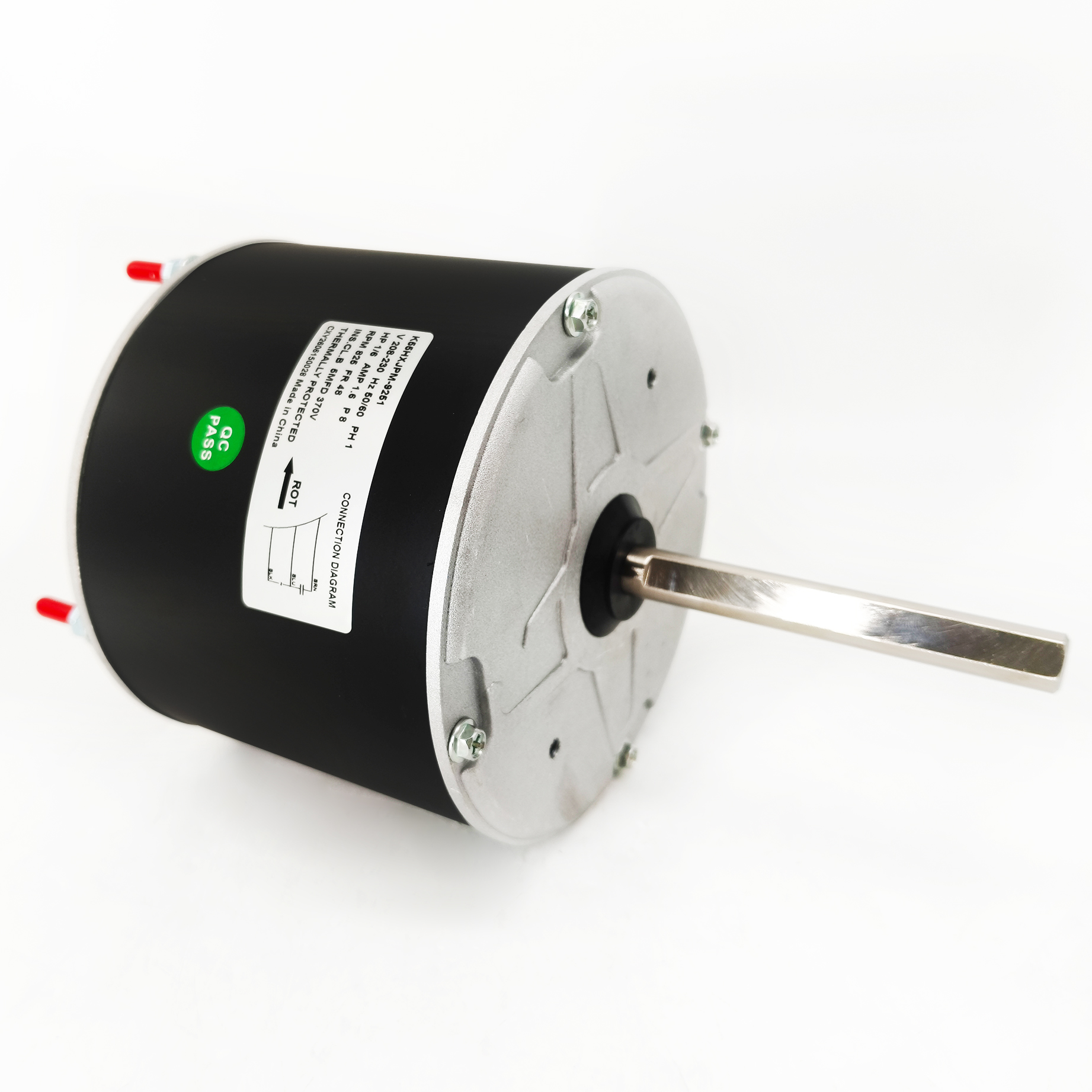

| Product: | AC Condenser Fan Motor | Frame: | 48 Frame |
| Motor Type: | Permanent Split Capacitor | Replacement Motor: | K55HXJPM-9251 |
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Output HP: | 125W 1/6HP |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Voltage: | 208-230V |
| Phase: | Single Phase | Supply Frequency: | 50/60Hz |
| Shaft Flat: | One Flat | Current: | 1.6A |
| Mounting Orientation: | Extended Studs | Speed: | 825RPM |
| Bearings: | Ball Bearing | Capacitor: | 5μF/370V |
| Insulation Class: | Class B | Max. Ambient Temperature: | 40℃/104℉ |
| Rotation: | CCW-LE | Pole: | 8P |
| Shaft Diameter: | 12.7mm/0.5" | Shaft Length: | 101.5mm/4" |
| Flat Length: | 90mm/3.54" | Motor Shell Length: | 116mm/4.57" |
Mounting Hole Spacing: | 132mm/5.20" | Screw Length: | 20mm/0.787" |
| Lead Length: | 1200mm/47.24" |
Our services:
1. In reply to your inquiry within 12 hours. Because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.
Our company:
1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
48 Frame Condenser Fan Motor - 1/6HP 208-230V 50/60HZ 825RPM - K55HXJPM-9251 Replacement Motor FAQ:
Q1- What is the warranty of the motors?
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Q2- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q3- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q4- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
