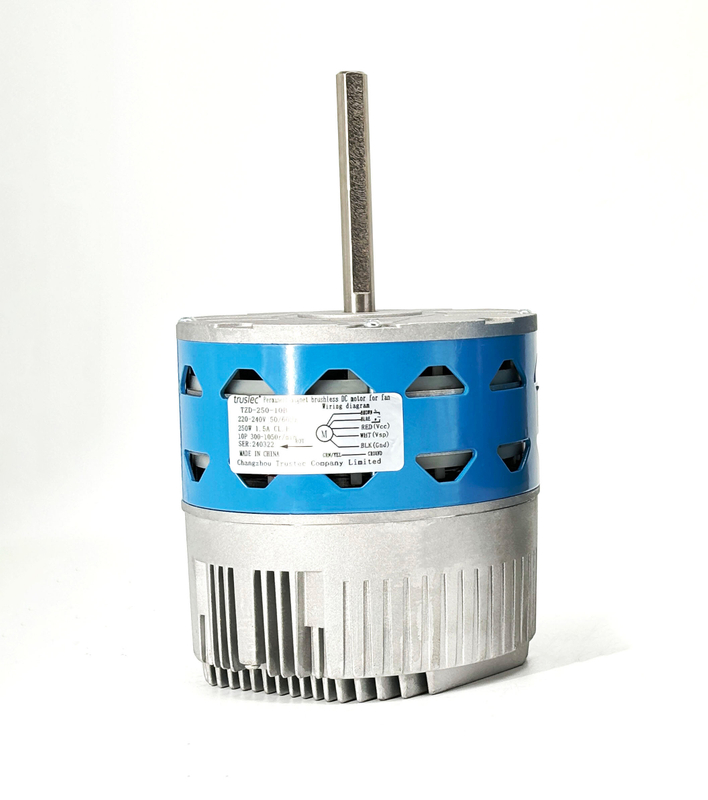

48 Frame ECM Motor For Fan and Blower - 250W 300-1050RPM 220-240V 50/60HZ

  • TZD-250-10B

  • trusTec

  • Nema 48

  • 250W

  • 300-1050RPM

  • 200pcs

  • Negotiable (FOB/CNF/CIF)

  • Standard carton packing, foam board inside for protection.

  • T/T, L/C

  • 15 days fresh products after order confirmation.

  • 100,000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

250W 48 Frame ECM Motor Specifications and Features

Product:Electroncally Commutated Motor (ECM)Frame:Nema 48
Motor Type:Direct Drive BlowerSupply Voltage:220-240V
Enclosure Type:OAO(Open Air Over)Supply Frequency:50/60HZ
Thermal Overload:Equipped With An Automatic Thermal OverloadCurrent:1.5A
Phase:Single PhaseOutput Power:250W
Mounting:RoundSpeed:300-1050RPM
Bearings:Ball BearingPoles:10P
Mounting Orientation:Stud Mounting All AngelShaft Diameter:1/2" / 12.7mm
Insulation Class:Class FShaft Length:4.0" / 101.6mm
Rotation:CW(SE)Max. Ambient Temperature:40℃/104℉
Speed Control:0-10V Speed Control/PWM
