YSL-750-6A60
trusTec
154mm
750W
900RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|

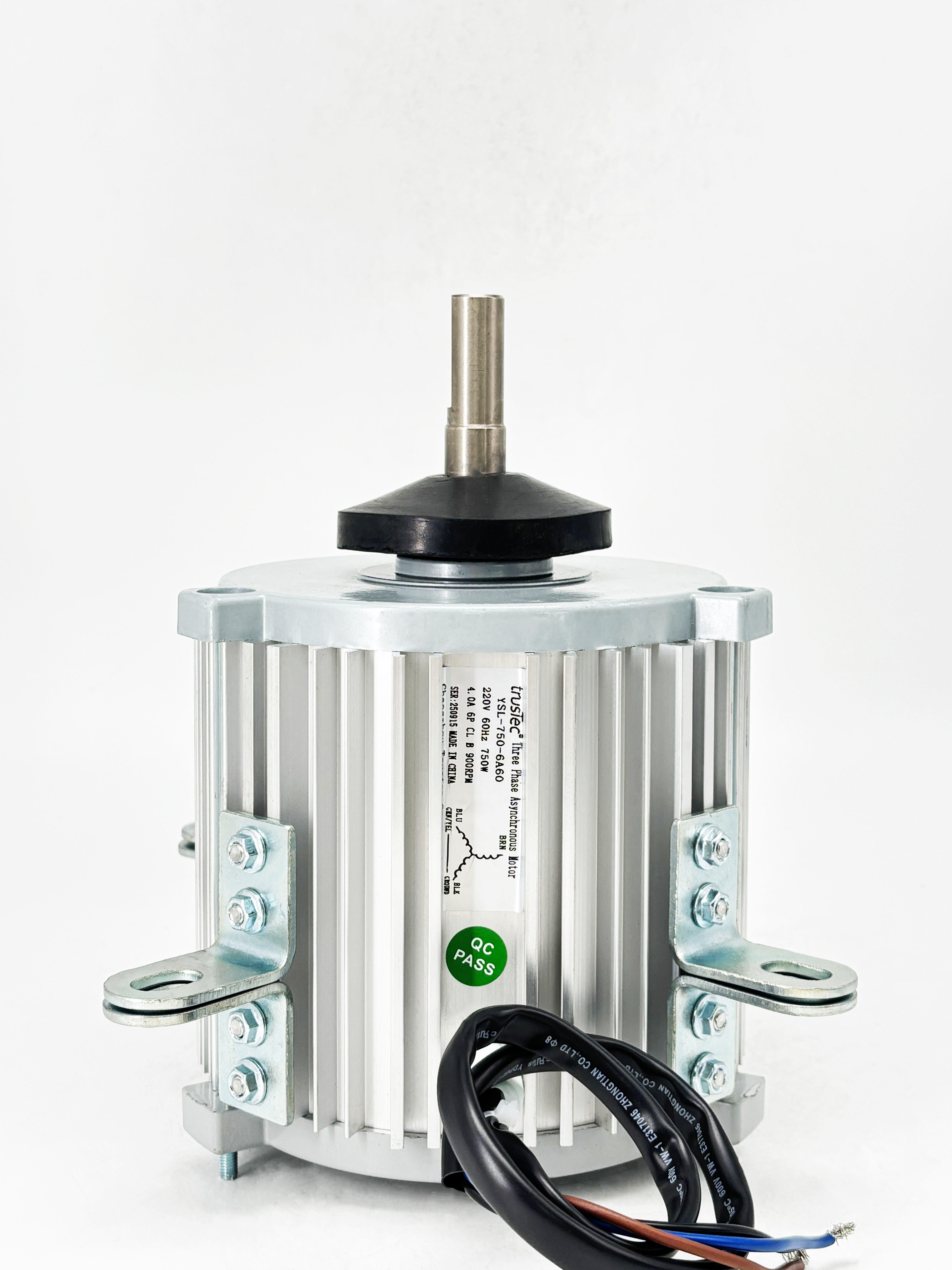

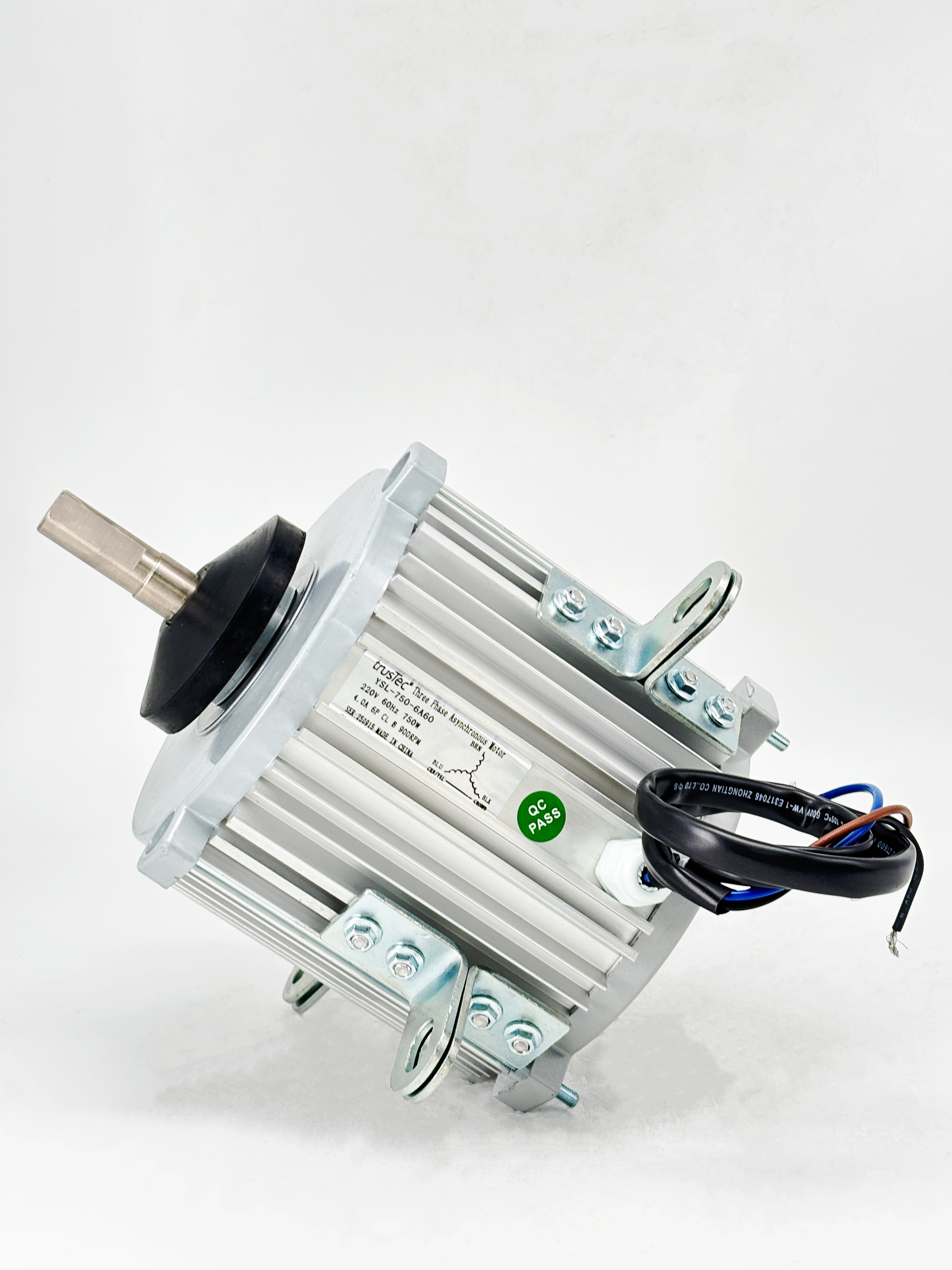

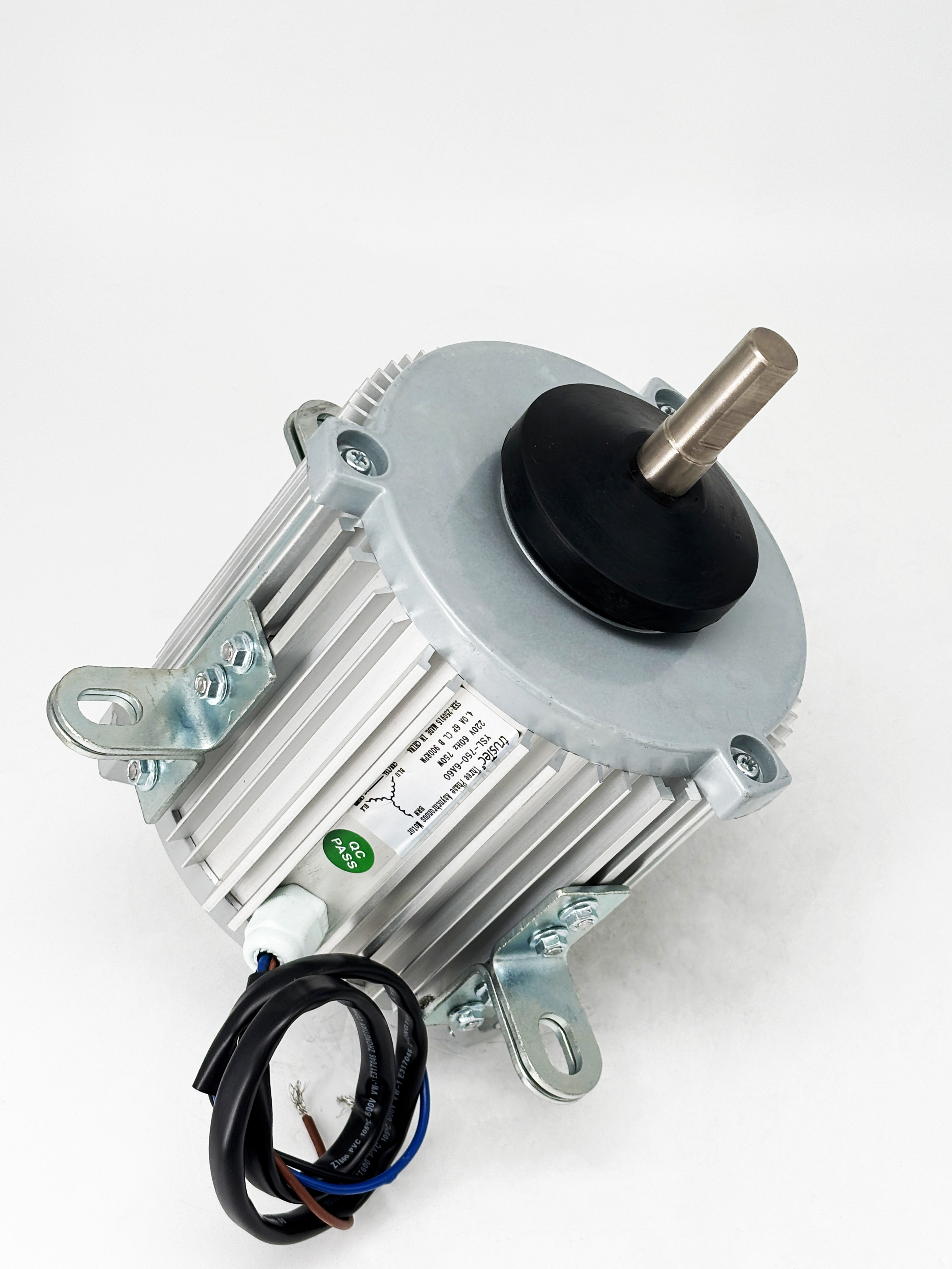

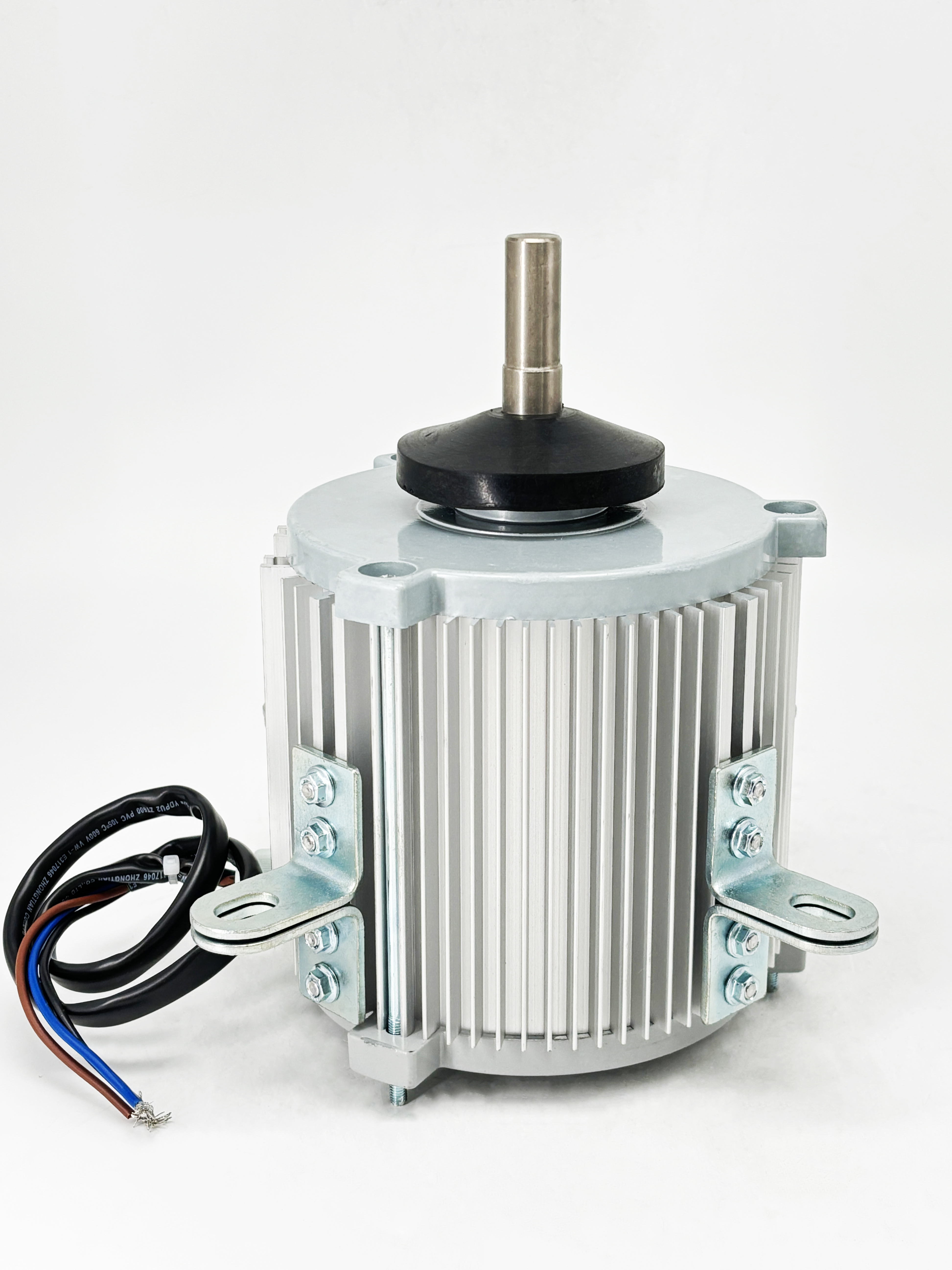

EC Fan Motor For Air Conditioner-YSL-750-6A60 750W 900RPM 220V 60HZ
Specifications and Features：
Product: | EC Fan Motor | Frame Size: | 154mm |
Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 220V |
Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 60Hz |
Phase: | Three phase | Current: | 4.0 A |
Mounting: | Bracket | Output HP: | 750W |
Shaft Flats: | One Flat | Rated Speed: | 900RPM |
Bearings: | Ball Bearing | Pole: | 6P |
Insulation Class: | Class B | Shaft Diameter: | 0.67''/17mm |
Max. Ambient Temperature: | 40°C/104°F | Shaft Length: | 2.76''/70mm |
Lead Length: | 19.69''/500mm | Flat Length: | 1.18''/30mm |
Our services:
1. In reply to your inquiry within 12 hours. Because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.
Our company:
1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
EC Fan Motor For Air Conditioner-YSL-750-6A60 750W 900RPM 220V 60HZ FAQ:
Q1- What is the warranty of the motors?
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Q2- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q3- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q4- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
EC Fan Motor For Air Conditioner-YSL-750-6A60 750W 900RPM 220V 60HZ
Specifications and Features：
Product: | EC Fan Motor | Frame Size: | 154mm |
Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Voltage: | 220V |
Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 60Hz |
Phase: | Three phase | Current: | 4.0 A |
Mounting: | Bracket | Output HP: | 750W |
Shaft Flats: | One Flat | Rated Speed: | 900RPM |
Bearings: | Ball Bearing | Pole: | 6P |
Insulation Class: | Class B | Shaft Diameter: | 0.67''/17mm |
Max. Ambient Temperature: | 40°C/104°F | Shaft Length: | 2.76''/70mm |
Lead Length: | 19.69''/500mm | Flat Length: | 1.18''/30mm |
Our services:
1. In reply to your inquiry within 12 hours. Because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.
Our company:
1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
EC Fan Motor For Air Conditioner-YSL-750-6A60 750W 900RPM 220V 60HZ FAQ:
Q1- What is the warranty of the motors?
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Q2- Can you design the motor according to the different request?
Yes, we can offer the ODM.
Q3- Do you have distributors overseas?
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
Q4- How to get the accurate offer?
The precise price will be quoted after checking the specification and mounting dimension of the motor.
