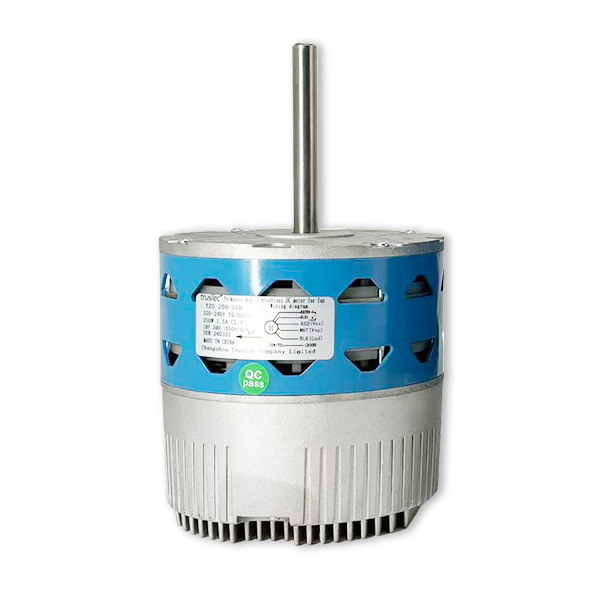

ECM Blower Motor - 48 Frame 250W 300-1050RPM 220-240V -Trustec Motor

  • TZD-250-10B

  • trusTec

  • Nema 48

  • 250W

  • 300-1050RPM

  • 200pcs

  • Negotiable (FOB/CNF/CIF)

  • Standard carton packing, foam board inside for protection.

  • T/T, L/C

  • 15 days fresh products after order confirmation.

  • 100,000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

250W 48 Frame ECM Blower Motor Product Specifications

Product:
ECM Blower MotorFrame:
Nema 48
Motor Type:
Direct Drive BlowerSupply Voltage:220-240V
Enclosure Type:OAO(Open Air Over)Supply Frequency:50 / 60 HZ
Thermal Overload:Equipped With An Automatic Thermal OverloadCurrent:1.5A
Phase:Single PhaseOutput Power250W
Mounting:RoundSpeed:300-1050RPM
Bearings:Ball BearingPoles:10P
Mounting Orientation:Stud Mounting All AngelShaft Diameter:1/2" / 12.7mm
Insulation Class:Class FShaft Length:4.0" / 101.6mm
Rotation:CW(SE)Max. Ambient Temperature:40℃ / 104℉
Speed Control:0-10V Speed Control/PWM



250W 48 Frame ECM Blower Motor Application

Indoor ECM blower motors

In residential air conditioning: wall-mounted units, floor-standing units, and residential central air conditioning systems

In commercial air conditioning: office building central air conditioning systems, hotel-specific air conditioning systems, and muil-split systems for shopping malls



ECM Blower Motor Quality Guarantee

•All ECM blower motors from trusTec are manufactured by strictly following the ISO9001 management system

•48 Frame blower motor enjoy at least 2 full years warranty since leaving the factory

•100% replacement is guaranteed for any defect among the warranty period

•Our ECM Blower Motors have been approved by RoHS, CCC, CE and UL certificates


trusTec Advantages

1. ODM

Original Equipemnt Manufacturer, Support Customization Service

2. Powerful R&D Manufacturing Capability for Custom ECM Motors

Depending on trusTec Team's powerful designing and manufacturing ability, customers' special needs of the ECM motors, including performance and parameters and mounting dimensions, will be perfectly fulfilled

3. Exported worldwide, recognized by the market

trusTec branded ECM blower moters are 100% exported to America, Europe, Mid-East, Asia, and have been approved by the global market

4. Exhibiting at HVAC / R trade shows worldwide

Our company is attending HVAC / R fairs held in China, Asia, Europe, Mid-East and America every year

5. Building Trust Together, Mutual Benefit in Odm Partnerships

The beneficial ODM co-operative relation will be warmly established with trust and loyalty



NEMA Frame 48 250W 50/60 Hz ECM Blower Motor FAQ


Q1- How to get the accurate offer?

The precise price will be quoted after checking the specification and mounting dimension of the motor.


Q2- What is the application of the motors?

All our motors are widely used in HVAC&R line.


Q3- Can you design the motor according to the different request?

Yes, we can offer the ODM.


Q4-How do you ship the goods?

By sea, by air, by courier (UPS, DHL, Fedex, TNT etc.)


Q5-How about batch order production?

Normally 15-30 days.


Q6-How long you could prepare samples?

Normally 3 days if we have the sample in hand. If customized one, about a week around.
