TZD-375-10B
trusTec
Nema 48
375W
300-1150RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|

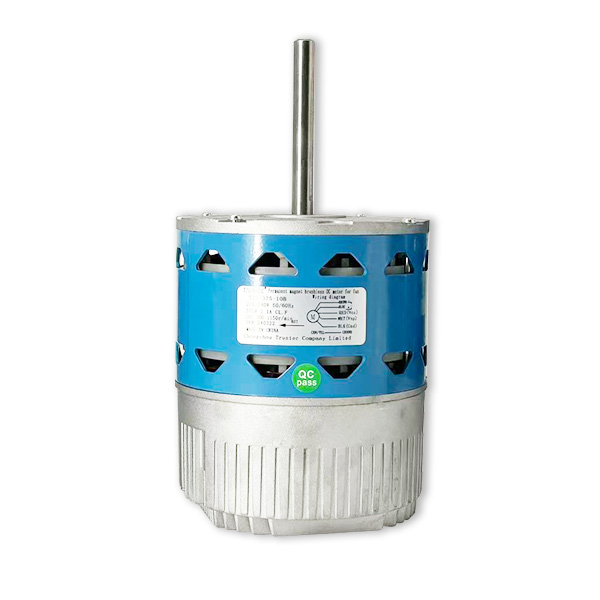

| Product: | ECM Blower Motor | Frame: | Nema 48 |
| Motor Type: | Direct Drive Blower | Supply Voltage: | 220-240V |
| Enclosure Type: | OAO(Open Air Over) | Supply Frequency: | 50 / 60 HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 2.1A |
| Phase: | Single Phase | Output Power | 375W |
| Mounting: | Round | Speed: | 300-1150RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | Stud Mounting All Angel | Shaft Diameter: | 1/2" / 12.7mm |
| Insulation Class: | Class F | Shaft Length: | 4.0" / 101.6mm |
| Rotation: | CW(SE) | Max. Ambient Temperature: | 40℃ / 104℉ |
| Speed Control: | 0-10V Speed Control/PWM | ||
Indoor ECM blower motors
In residential air conditioning: wall-mounted units, floor-standing units, and residential central air conditioning systems
In commercial air conditioning: office building central air conditioning systems, hotel-specific air conditioning systems, and muil-split systems for shopping malls
• All ECM blower motors from trusTec are manufactured by strictly following the ISO9001 management system
• 48 Frame blower motor enjoy at least 2 full years warranty since leaving the factory
• 100% replacement is guaranteed for any defect among the warranty period
• Our ECM Blower Motors have been approved by RoHS, CCC, CE and UL certificates
1. In reply to your inquiry with 12 hours. Because we are valuing every customer
2. We cooperate with customer to design and develop new product. Provide OEM
3. We provide quality after-sales service
4. 15-30 days leading time
5. we are willing to help you arrange delivery, testing or other requests
