TZD-220-10A2-NLR
trusTec
48
220W
770RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection
T/T, L/C
15 days fresh products after order confirmation
100,000 pcs per month
| Quantity: | |
|---|---|
| Product: | ECM Condenser Fan Motor | Frame: | 48 Frame |
| Enclosure Type: | TEAO (Totally Enclosed Air Over) | Supply Voltage: | 220-240V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50 / 60 HZ |
| Phase: | Single Phase | Current: | 2.3A |
| Mounting: | Bracket | Output Power | 220W |
| Bearings: | Ball Bearing | Speed: | 770RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class B | Flat Length: | 3.54" / 90mm |
| Control Mode: | PWM | Shaft Length: | 3.88" / 98.5mm |
| Rotation: | CCW(LE) | Shaft Diameter: | 0.5" / 12.7mm |
| Lead Length: | 19.69" / 500mm | Max. Ambient Temperature: | 40℃ / 104℉ |
| Motor Shell Length: | 5.47" / 139mm | ||

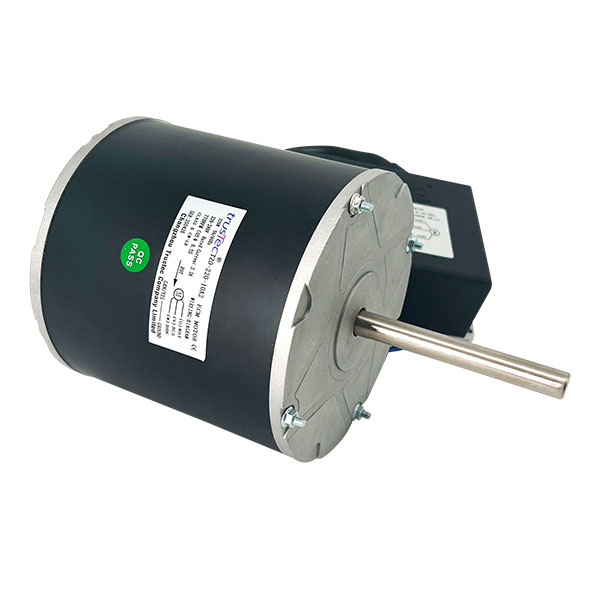

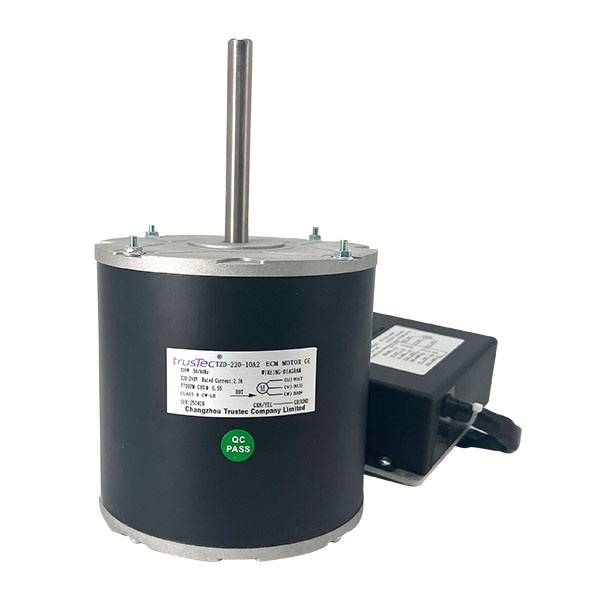

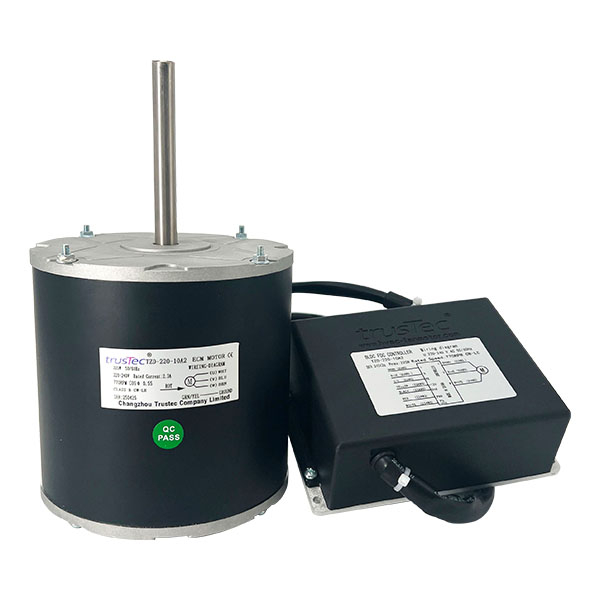

Trustec 48 Frame ECM Condenser Fan Motor 220W 770RPM 220-240V is a high-performance electronically commutated motor specifically designed for HVAC and air conditioning applications.
1. Cost Saving: Slash energy bills by 40-70% compared to traditional motor
2. Global Compatibility: Wide voltage range of 220-240V suitable for Europe, Asia, Australia, and other regions
3. Low maintenance: Permanently lubricated bearings and brushless design eliminate the need of regular lubrication or replacement of parts
4. Compliance and Quality: Rigorous testing under real-world operating conditions, certified to meet CCC, RoHS, SABER, UL CSA, CE, UKCA, and ISO 9001:2015 standards
5. We have over 15 years of export experience. In addition to sales within mianland China, our diverse product range is exported to over 80 countries including the United States, Mexico, Brazil, the Netherlands, the United Kingdom, and Australia
We value every customer and guarantee a prompt replay to your inquiries within 12 hours
We partner qith you to co-design and develop new products, offering full OEM services tailored to your requirements
We provide professional, high-quality after-sales support to ensure your long-term satisfaction with our products
Standard lead time ranges from 15 to 30 days, balancing production quality and delivery speed for your orders
We are ready to assist with additional needs, including shipment arrangement, product testing, and other customized requests
