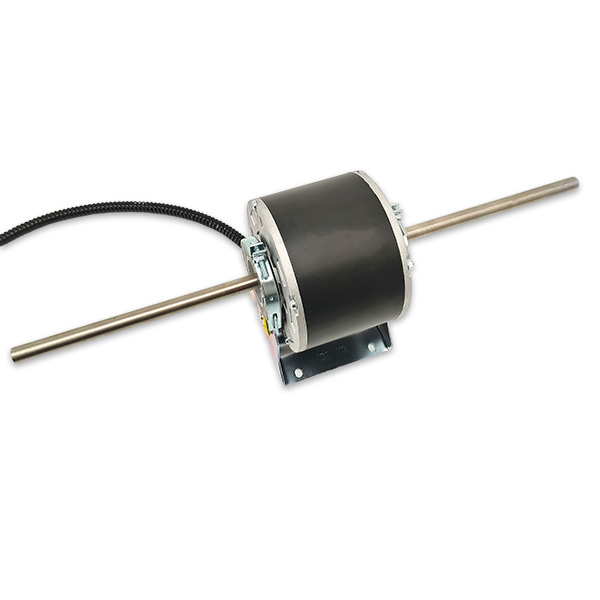

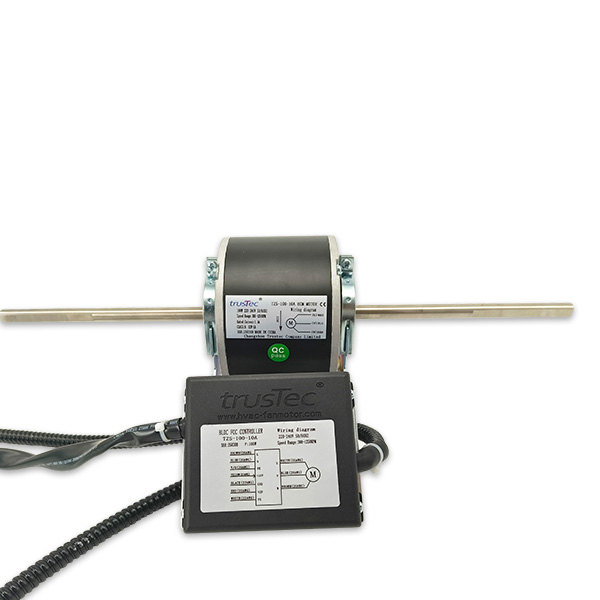

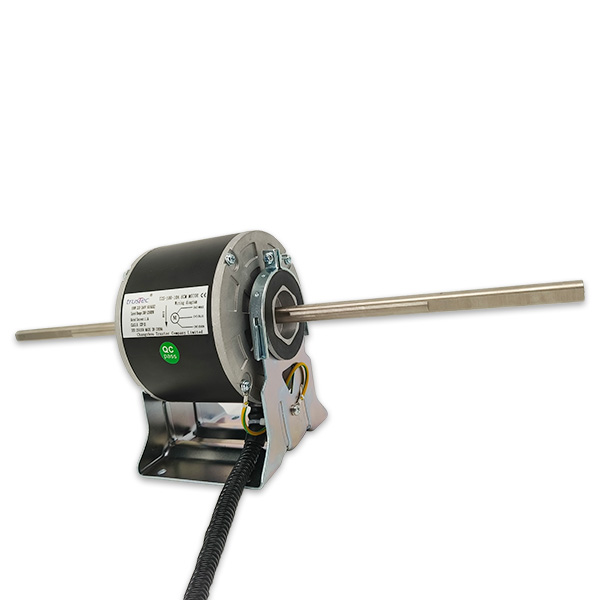

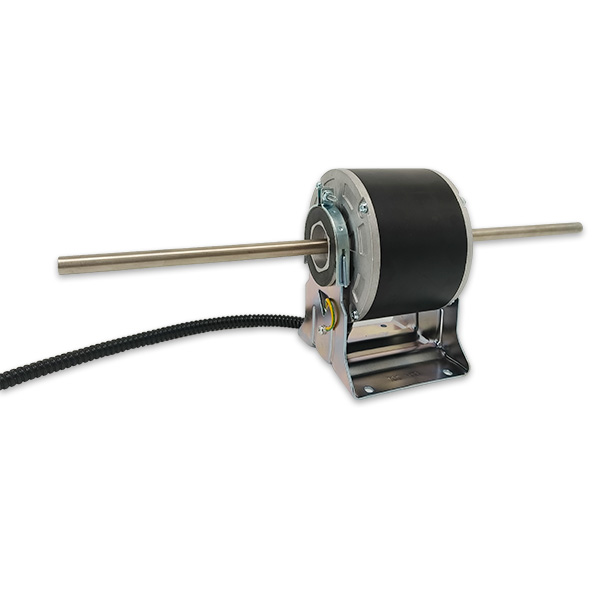

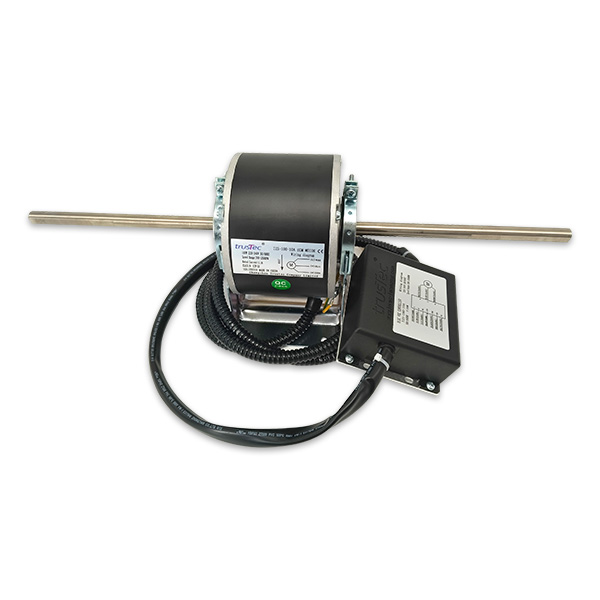

TZS-100-10A-UTZ
trusTec
100W
300-1250RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|
| Product: | ECM Fan Coil Unit Motor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO (Toatlly Enclosed Air Over) | Supply Frequency: | 50 / 60 HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.1A |
| Phase: | Single Phase | Output Power | 2/15HP |
| Mounting: | Bracket | Speed: | 300-1250RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | All Angle | Flat Length: | 3.15" / 80mm |
| Insulation Class: | Class B | Shaft Length: | 18.5" / 470mm |
| Control Mode: | VSP (0-10V) | Shaft Diameter: | 0.49" / 12mm |
| Rotation: | CCW(LE) | Lead Length: | 62.99" / 1600mm |
| Max. Ambient Temperature: | 40 ℃ / 104℉ | ||
An ECM motor is a high-efficiency motor that combines a brushless DC motor with electronic control technology.
Through electronic commutation control, it achieves variable speed operation and high efficiency.
ECM fan unit coil motors offer distinct advantages in four key areas--energy efficiency, quiet operation, variable speed control, and longevity. Suitable for a wide range of applications including HVAC, fresh air systems, and home appliances, they reduce operating costs while enhancing the user experience, making them the ideal choice for modern energy-efficient equipment.
Trustec ECM motors utilize electronic commutation technology to achieve significant energy savings, aligning with the trends toward energy-efficient buildings while balancing envirommental sustainability and cost-effectiveness.
Our ECM motors effectively reduce both electromagnetic and mechanical noise during operation, ensuring smmother and quieter performance. Our motors maintain low noise levels even at low speeds, making them ideally suited for noise-sensitive enviroments--such as hotel guest rooms and residential spaces--thereby enhancing user comfort.
Supports stepless speed control, allowing the speed to be adjusted as needed to accommodate different airflow rates and load conditions, eliminating the need for frequent starts and stops.
Trustec motors feature a brushless design that minimizes the mechanical wear associated with traditional brushed motors, thereby effectively extending the motor's service life. This provides a reliable guarantee for the long-term, stable operation of equipment, making them particularly well-suited for applications requiring continuous, prolonged operation--such as those found in industrial and commercial settings.
Trustec ECM fan coil unit motors are widely adaptable to various building HVAC and air handing applications. Key areas of application include:
• Hotel Air Conditioning Systems
• Commercial Building HVAC Systems
• Apartment Air Conditioning Systems
• Hospitals and Scools
All Trustec ECM fan coil unit motors are manufactured under the strict ISO9001 quality management system, ensuring stable performance and consistent quality
• All ECM fan coil unit motors from trusTec are manufactured by strictly following the ISO9001 management system
• 48 Frame ECM motor enjoy at least 2 full years warranty since leaving the factory
• 100% replacement is guaranteed for any defect among the warranty period
• Our ECM HVAC motors have been approved by RoHS, CCC, CE and UL certificates.
• Trustec ECM motors are 100% exported to American, Eurpoe, Mid-East, Asia, and have been approved by the global market.
Trustec is an original equipment manufacturer (OEM) specializing in HVAC ECM motors, providing stable supply and reliable product quality.
With strong design and manufacturing capabilities, Trustec can support customized ECM motor, including:
• Performance specifications
• Electrical parameters
• Mounting dimensions
• Application-specific designs
Trustec ECM motors are exported worldwide and widely used in HVAC systems across America, Europe, the Middle East, and Asia.
Trustec actively participates in major HVAC/R exhibitions in China, Asia, Europe, the Middle East, and North America every year, strengthening partnerships with global HVAC equipment manufacturers.
Trustec welcome long-term OEM/ODM cooperation and look forward to building mutually beneficial partnerships with customers worldwide.
The pricise price will be quoted after checking the specification and mounting dimension of the motor.
The warranty is 18 months on the production date, under the warranty we will aford the shipping cost to send the replacement.
Yes, we can offer the ODM.
By sea, by air, by courier(UPS, DHL, Fedex, TNT etc.)
Normally 15-30 days.
Normaly 3 days if we have the sample in hand. If customized one, about a week around.
No. our design team works with end users and OEMs to provide the lowest total life cycle cost solution. If continuous operation is criticl to your operation, our technologies can design and manufacturer motors based your specific or unique needs to avoid costly equipment down time.
