TZS-250-10A-UCT
trusTec
Nema 42
250W
300-1600RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|

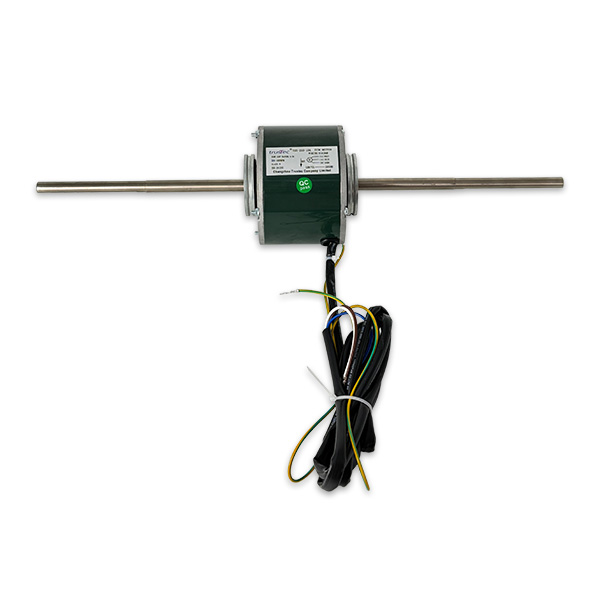

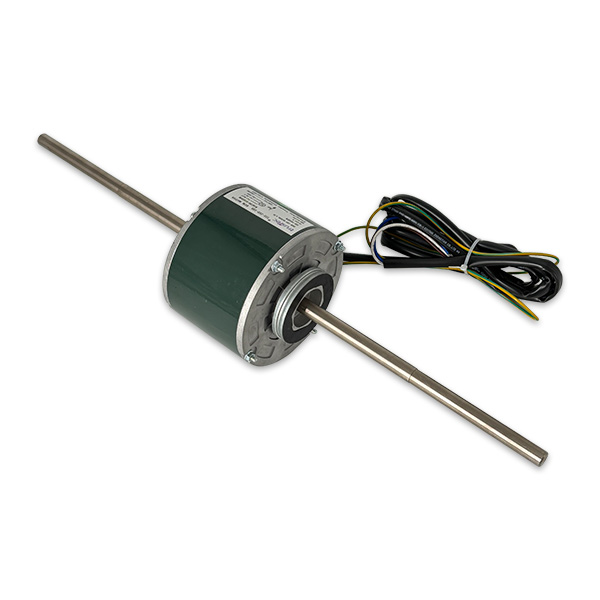

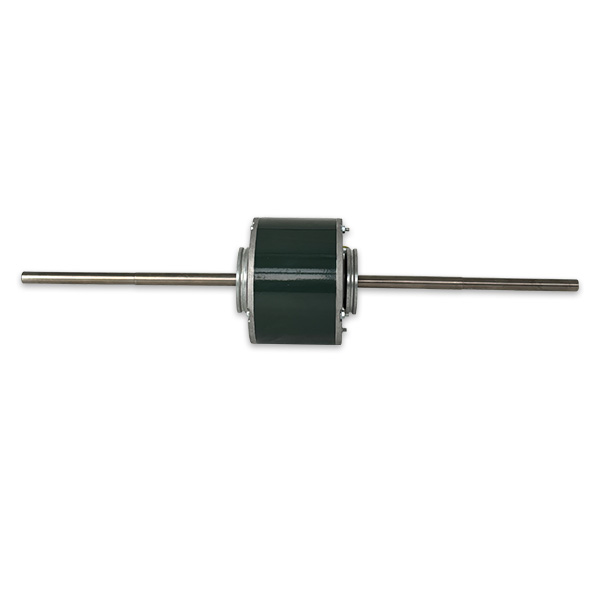

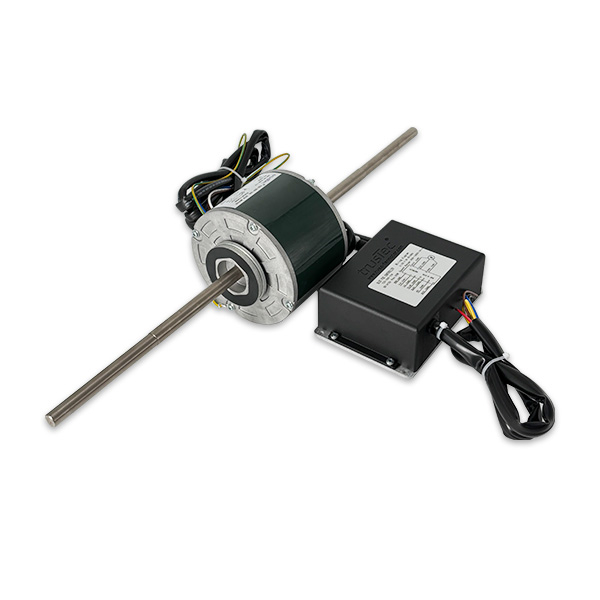

| Product: | ECM Fan Coil Unit Motor | Frame: | 42 Frame |
| Enclosure Type: | TEAO (Toatlly Enclosed Air Over) | Supply Voltage: | 120V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50 / 60 HZ |
| Phase: | Single Phase | Current: | 4.2A |
| Mounting: | All Angle | Output Power | 250W |
| Bearings: | Ball Bearing | Speed: | 300-1600RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class B | Shaft Diameter: | 1/2" / 12.7mm |
| Control Mode: | VSP (0-10V) | Max. Ambient Temperature: | 40 ℃ / 104℉ |
| Rotation: | CCW(LE) | ||
This 120V ECM fan coil unit motor is designed for seamless integration with a wide rang of HVAC control systems, proving flexible control and reliable performance in modern air conditioning systems.
• Fan Coil Unit Controllers
• Smart Building Management Systems
• HVAC Variable Frequency Control Modules
•0-10V Control
•PWM Control
•Constant Speed Mode
With flexible control options and strong system compatibility, this ECM motor can be easily integrated into various HVAC applications, ensuring stable performance and efficient system operation.
Precisely adapts to different airflow requirements, enabling comfortable air distribution and improved system energy efficiency.
Advanced ECM (Electronically Commutated Motor) technology significantly improves motor efficiency, reduces operating energy costs, and meets the energy-saving requirements of modern green buildings.
Maintains strong torque output even at low speed, ensuring quiet and stable operation—ideal for noise-sensitive environmrnts such as hotel rooms and residential applications.
1/3HP 120V ECM motor is widely used in various HVAC and air handling applications, including:
• Hotel air conditioning systems
• Apartment HVAC systems
• Commercial building fan coil units
• Air conditioning terminal units in healthcare and educatioanl facilities
• Light commercial air handling equipment
All Trustec ECM fan coil unit motors are manufactured under the strict ISO9001 quality management system, ensuring stable performance and consistent quality.
• Minimum 2-year warranty from the date of shipment
• 100% replacement guarantee for any manufacturing defects during the warranty period
• Certified with RoHS, CCC, CE, and UL standards
• Products exported worldwide, including North America, Europe, the Middle East, and Asia.
Trustec motors have been widely recognized and trusted by global HVAC equipment manufacturers.
Trustec is an original equipment manufacturer (OEM) specializing in HVAC ECM motors, providing stable supply and reliable product quality.
With strong design and manufacturing capabilities, Trustec can support customized ECM motor, including:
• Performance specifications
• Electrical parameters
• Mounting dimensions
• Application-specific designs
Trustec ECM motors are exported worldwide and widely used in HVAC systems across America, Europe, the Middle East, and Asia.
Trustec actively participates in major HVAC/R exhibitions in China, Asia, Europe, the Middle East, and North America every year, strengthening partnerships with global HVAC equipment manufacturers.
Trustec welcome long-term OEM/ODM cooperation and look forward to building mutually beneficial partnerships with customers worldwide.
The pricise price will be quoted after checking the specification and mounting dimension of the motor.
The warranty is 18 months on the production date, under the warranty we will aford the shipping cost to send the replacement.
Yes, we can offer the ODM.
By sea, by air, by courier(UPS, DHL, Fedex, TNT etc.)
Normally 15-30 days.
Normaly 3 days if we have the sample in hand. If customized one, about a week around.
No. our design team works with end users and OEMs to provide the lowest total life cycle cost solution. If continuous operation is criticl to your operation, our technologies can design and manufacturer motors based your specific or unique needs to avoid costly equipment down time.
