TZS-60-10A-SPT
trusTec
Nema 42
60W
1300RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|
| Product: | ECM Fan Coil Unit Motor | Frame: | 42 Frame |
| Enclosure Type: | TEAO (Toatlly Enclosed Air Over) | Supply Voltage: | 310V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50 / 60 HZ |
| Phase: | Single Phase | Current: | 0.66A |
| Mounting: | Bracket | Output Power | 60W |
| Bearings: | Ball Bearing | Speed: | 1300RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class F | Max. Ambient Temperature: | 70 ℃ / 158℉ |
| Control Mode: | VSP (2-9V) | Flat Length: | 75mm / 2.95" *2 |
| Rotation: | CCW(LE) | Shaft Length: | 209.6mm / 8.25" *2 |
| Shaft Diameter: | 12.7mm / 0.5" | Lead Length: | 1300mm / 51.18" |
| Motor Shell Length: | 130.8mm / 5.15" | ||

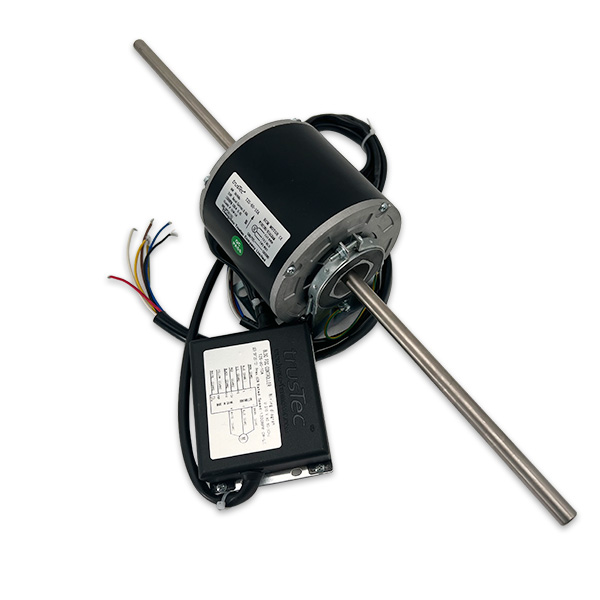

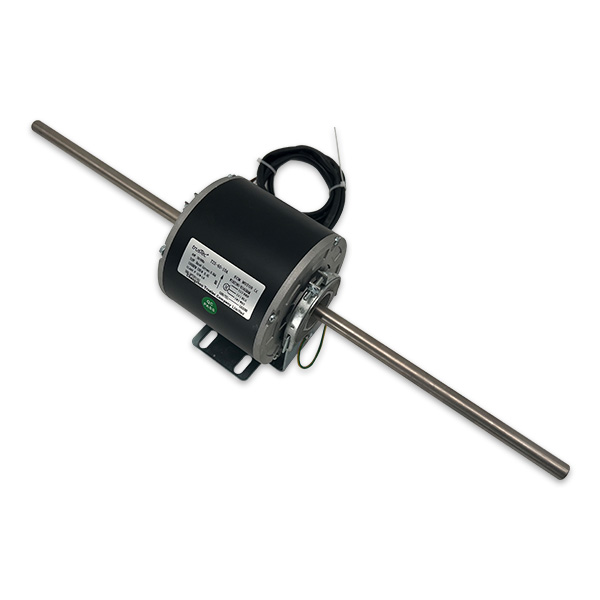

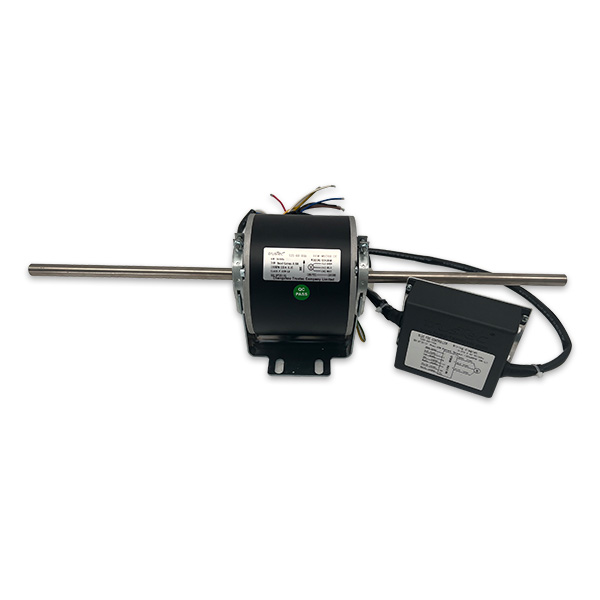

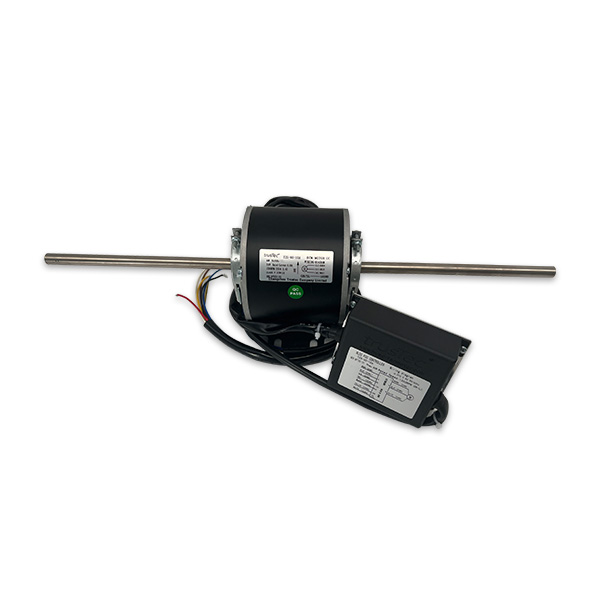

This 60W 310VECM fan coil unit motor adopts high-efficiency permanent magnet brushless technology and an integrated drive control module. It is specially developed for low-air-volume fan coil systems and energy-saving HVAC equipment, maintaining stable speed and low noise even under low power consumption.
Compared with traditional AC motors, it significantly reduces system energy consumption, ideal for energy-saving FCU designs.
Stable speed and more uniform air volume control for improved system comfort.
Optimized electromagnetic and structural design, suitable for quiet environments such as hotels, residences and offices.
Ideal for fan coil and ventilation systems requiring long-hour operation.
Widely compatible with various small and medium-sized fan coil units, covering the following applications:
• Commercial :central air conditioning fan coil systems in office buildings, hotels, shopping malls, supermarkets, convention centers, etc.
• Apartments and residential central air conditioning
• Silent HVAC equipment
• Fresh air and small ventilation systems
All ECM motors from trusTec are manufactured by strictly following the ISO9001 management system.
42 Frame fan coil unit motor enjoy at least 2 full years warranty since leaving the factory.
100% replacement is guaranteed for any defect among the warranty period.
Our ECM motors have been approved by RoHS, CCC, CE and UL certificates.
Trustec ECM fan coil unit motors are 100% exported to American, Eurpoe, Mid-East, Asia, and have been approved by the global market.
Original Equipemnt Manufacturer, Support Customization Service.
Depending on trusTec Team's powerful designing and manufacturing ability, customers' special needs of the ECM motors, including performance and parameters and mounting dimensions, will be perfectly fulfilled.
trusTec branded ECM moters are 100% exported to America, Europe, Mid-East, Asia, and have been approved by the global market.
Our company is attending HVAC / R fairs held in China, Asia, Europe, Mid-East and America every year.
The beneficial ODM co-operative relation will be warmly established with trust and loyalty.
We value every customer and guarantee a prompt replay to your inquiries within 12 hours
We partner qith you to co-design and develop new products, offering full OEM services tailored to your requirements
We provide professional, high-quality after-sales support to ensure your long-term satisfaction with our products
Standard lead time ranges from 15 to 30 days, balancing production quality and delivery speed for your orders
We are ready to assist with additional needs, including shipment arrangement, product testing, and other customized requests
The pricise price will be quoted after checking the specification and mounting dimension of the motor.
The warranty is 18 months on the production date, under the warranty we will aford the shipping cost to send the replacement.
Yes, we can offer the ODM.
By sea, by air, by courier(UPS, DHL, Fedex, TNT etc.)
Normally 15-30 days.
Normaly 3 days if we have the sample in hand. If customized one, about a week around.
No. our design team works with end users and OEMs to provide the lowest total life cycle cost solution. If continuous operation is criticl to your operation, our technologies can design and manufacturer motors based your specific or unique needs to avoid costly equipment down time.
