TZS-375-10A-SPT
trusTec
Nema 48
375W
1300RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|
| Product: | ECM Fan Coil Unit Motor | Frame: | 48 Frame |
| Enclosure Type: | TEAO (Toatlly Enclosed Air Over) | Supply Voltage: | 310V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50 / 60 HZ |
| Phase: | Single Phase | Current: | 0.64A |
| Mounting: | Bracket | Output Power | 375W |
| Bearings: | Ball Bearing | Speed: | 1300RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class F | Max. Ambient Temperature: | 70 ℃ / 158℉ |
| Control Mode: | VSP (2-9V) | Flat Length: | 70mm / 2.76" |
| Rotation: | CW(LE) | Shaft Length: | 200mm / 7.87" |
| Shaft Diameter: | 12.7mm / 0.5" | Lead Length: | 1300mm / 51.18" |
| Motor Shell Length: | 165mm / 6.50" | ||

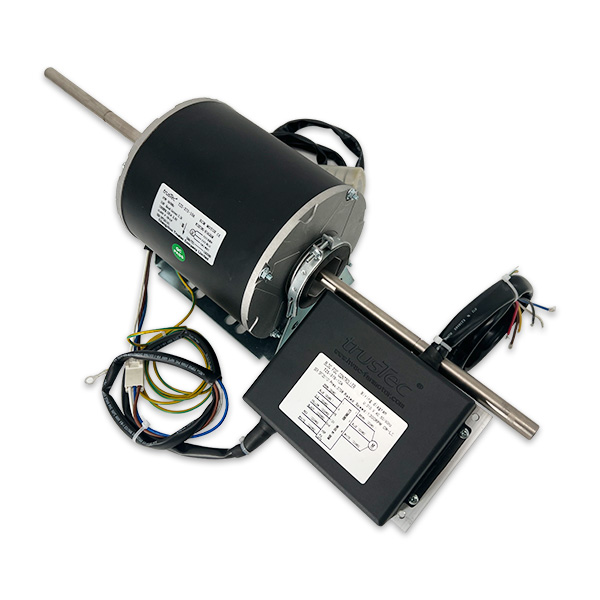

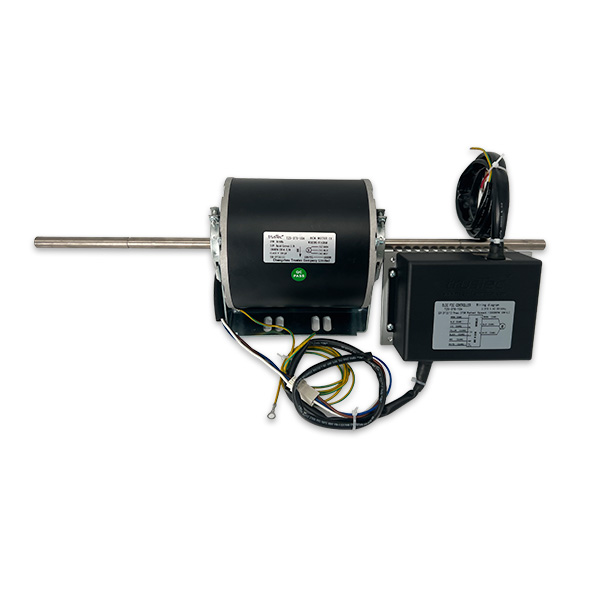

This 375W 310V 1300RPM ECM fan coil unit motor uses permanent magnet brushless electronically commutated (ECM) technology, integrating a high-efficiency drive control module. It is specially designed for medium-airflow fan coil units and energy-saving HVAC systems.
While delivering stable speed output, Trustec ECM FCU motor achieves lower power consumption, low noise and longer service life, making it ideal for commercial and high-end residential air conditioning systems.
Minimal speed fluctuation and consistent airflow output greatly improve system comfort and reliability.
Specially engineered for medium-airflow fan coil units, ensuring stable and non-overloading operation.
Ideal for noise-sensitive applications including hotels, office, residential buildings and high-end facilities.
Reduces startup impact, extending the service life of bearings and the entire motor system.
Trustec ECM fan coil motor: Stable, quiet, energy-efficient, buit for long-lasting HVAC performance.
Widely compatible with various small and medium-sized fan coil units, covering the following applications:
• Commercial :central air conditioning fan coil systems in office buildings, hotels, shopping malls, supermarkets, convention centers, etc.
• Apartments and residential central air conditioning
• Silent HVAC equipment
• Fresh air and small ventilation systems
All ECM blower motors from trusTec are manufactured by strictly following the ISO9001 management system.
48 Frame ECM coil unit motor enjoy at least 2 full years warranty since leaving the factory.
100% replacement is guaranteed for any defect among the warranty period.
Our ECM motors have been approved by RoHS, CCC, CE and UL certificates.
Trustec ECM motors are 100% exported to American, Eurpoe, Mid-East, Asia, and have been approved by the global market.
Original Equipemnt Manufacturer, Support Customization Service
Depending on trusTec Team's powerful designing and manufacturing ability, customers' special needs of the ECM motors, including performance and parameters and mounting dimensions, will be perfectly fulfilled
trusTec branded ECM moters are 100% exported to America, Europe, Mid-East, Asia, and have been approved by the global market
Our company is attending HVAC / R fairs held in China, Asia, Europe, Mid-East and America every year
The beneficial ODM co-operative relation will be warmly established with trust and loyalty
Trustec company is not only a quality and competitive products manufacturing & sales enterprise, but also a reliable solution supplier for customers around the world.
We cooperate with customer to design and develop new product. Provide OEM.
We are willing to help you arrange delivery, testing or other requests.
From quick demand response, professional and high efficient following up, to helping optimize shipping & save cost, offering overseas. technial support, Trustec will ensure customers the best matched ECM fan coil unit motors, as well as the best service.
The pricise price will be quoted after checking the specification and mounting dimension of the motor.
The warranty is 18 months on the production date, under the warranty we will aford the shipping cost to send the replacement.
Yes, we can offer the ODM.
By sea, by air, by courier(UPS, DHL, Fedex, TNT etc.)
Normally 15-30 days.
Normaly 3 days if we have the sample in hand. If customized one, about a week around.
No. our design team works with end users and OEMs to provide the lowest total life cycle cost solution. If continuous operation is criticl to your operation, our technologies can design and manufacturer motors based your specific or unique needs to avoid costly equipment down time.
