TZD-750-10A-UMG
trusTec
Nema 48
750W
500-2400RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|
| Product: | ECM Fan Coil Unit Motor | Frame: | 48 Frame |
| Enclosure Type: | TEAO (Toatlly Enclosed Air Over) | Supply Voltage: | 208-230V |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Supply Frequency: | 50 / 60 HZ |
| Phase: | Single Phase | Current: | 6.4A |
| Mounting: | Bracket | Output Power | 750W |
| Bearings: | Ball Bearing | Speed: | 500-2400RPM |
| Mounting Orientation: | All Angle | Poles: | 10P |
| Insulation Class: | Class B | Shaft Length: | 14.63" / 371.5mm |
| Control Mode: | VSP | Shaft Diameter: | 0.5" / 12.7mm |
| Rotation: | CW(LE) | Lead Length: | 19.69" / 500mm |
| Max. Ambient Temperature: | 40 ℃ / 104℉ | Motor Shell Length: | 5.22" / 132.6mm |

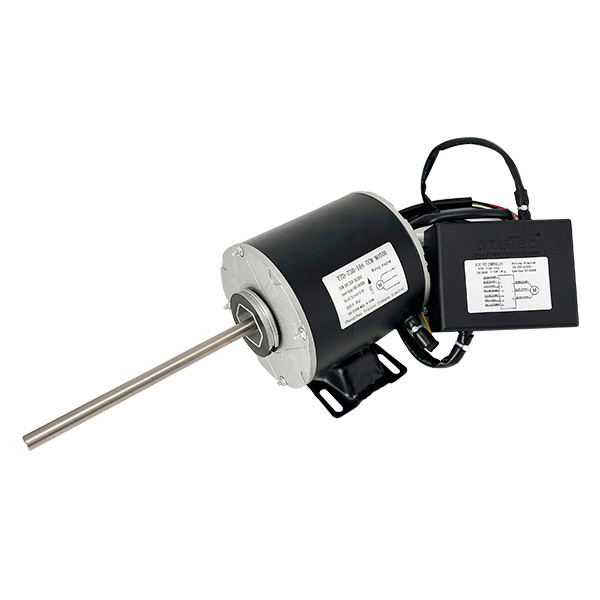

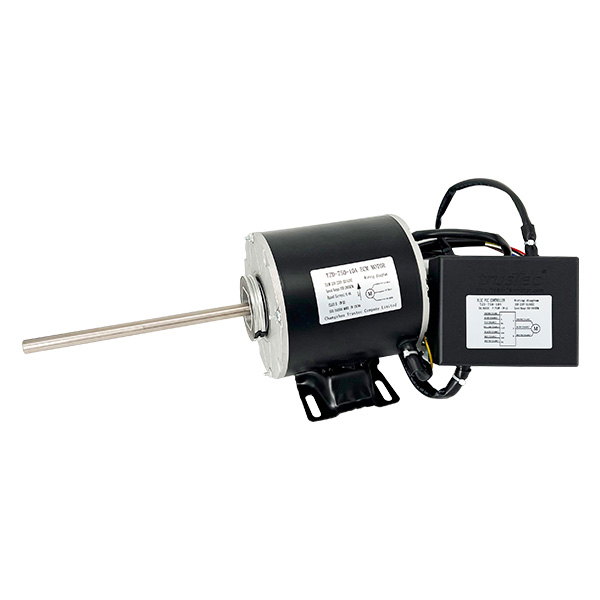

This 750W ECM fan coil unit motor is specifically designed for medium to large commercial fan coil system, delivering exceptional performance, reliability and energy efficiency to meet the high standards demanded by modern HVAC applications.
This 375W ECM fan coil unit motor features a permanent magnet synchronous motor design with an integrated control module. It maintains high efficiency and low noise performance even under-high-load operating conditions, effectively reducing system energy consumption while ensuring a quiet and comfortable indoor environment.
Delivers robust and sustained power to meet the airflow demands of medium to large fan coil units.
Feature speed adjustment to adapt to varying temperature and airflow requirements, further optimizing energy efficiency and comfort.
Wide voltage design seamlessly integrates with most commercial HVAC systems, elimnating the need for additional voltage conversion equipment.
Trustec offers flexible OEM customization services to meet specific design and spatial layout requirements for diverse products. Trustec also maintain bulk supply capabilities to ensure timely delivery for large-scale projects.
Suitable for various medium-to-large commercial HVAC and air control system applications, including:
• Commercial building fan coil unit
• Hotel fan coil systems
• Office building HVAC systems
• Large commercial central air conditioning systems
• Retroft and upgrade projects
All ECM fan coil unit motors from trusTec are manufactured by strictly following the ISO9001 management system.
48 Frame ECM fan coil unit motor enjoy at least 2 full years warranty since leaving the factory.
100% replacement is guaranteed for any defect among the warranty period.
Our ECM blower motors have been approved by RoHS, CCC, CE and UL certificates.
Trustec ECM motors are 100% exported to American, Eurpoe, Mid-East, Asia, and have been approved by the global market.
Original Equipemnt Manufacturer, Support Customization Service.
Depending on trusTec Team's powerful designing and manufacturing ability, customers' special needs of the ECM motors, including performance and parameters and mounting dimensions, will be perfectly fulfilled.
trusTec branded ECM moters are 100% exported to America, Europe, Mid-East, Asia, and have been approved by the global market.
Our company is attending HVAC / R fairs held in China, Asia, Europe, Mid-East and America every year.
The beneficial ODM co-operative relation will be warmly established with trust and loyalty.
The pricise price will be quoted after checking the specification and mounting dimension of the motor.
The warranty is 18 months on the production date, under the warranty we will aford the shipping cost to send the replacement.
Yes, we can offer the ODM.
By sea, by air, by courier(UPS, DHL, Fedex, TNT etc.)
Normally 15-30 days.
Normaly 3 days if we have the sample in hand. If customized one, about a week around.
No. our design team works with end users and OEMs to provide the lowest total life cycle cost solution. If continuous operation is criticl to your operation, our technologies can design and manufacturer motors based your specific or unique needs to avoid costly equipment down time.
