TZS-100-10A-UTZ
trusTec
50W
300-1600RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|
| Product: | ECM Fan Coil Unit Motor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO (Toatlly Enclosed Air Over) | Supply Frequency: | 50 / 60 HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 1.1A |
| Phase: | Single Phase | Output Power | 1/15HP |
| Mounting: | Bracket | Speed: | 300-1150RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | All Angle | Flat Length: | 3.15" / 80mm |
| Insulation Class: | Class B | Shaft Length: | 18.5" / 470mm |
| Control Mode: | VSP (0-10V) | Shaft Diameter: | 0.49" / 12mm |
| Rotation: | CCW(LE) | Lead Length: | 62.99" / 1600mm |
| Max. Ambient Temperature: | 40 ℃ / 104℉ | ||

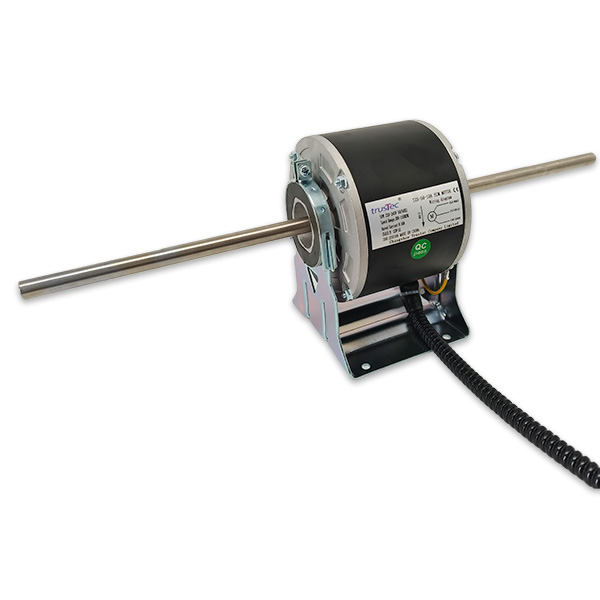

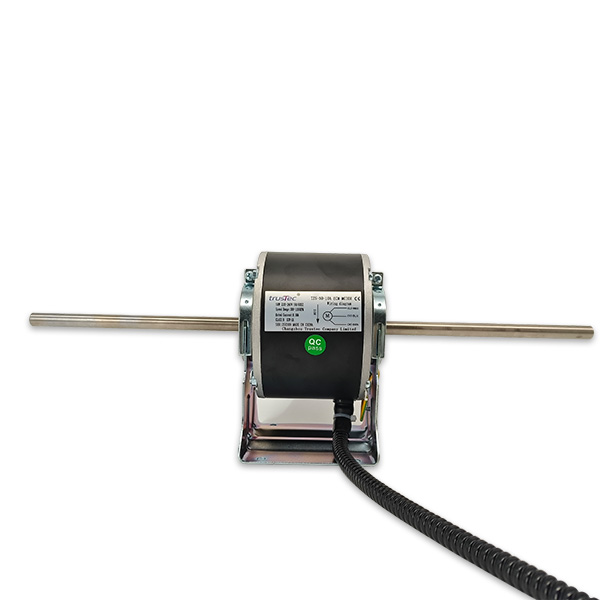

Specifically designed for HVAC fan coil systems, this motor utilizes high-efficiency ECM brushless motor technology and features a double-shaft structure capable of simultaneously driving two fan blades for more stable airflow output.
Our ECM motors deliver higher efficiency, low noise, and extended service life, making them the ideal choice for modern HVAC systems.
The double-shaft ECM motor is specifically designed for dual-impeller HVAC equipment, enabling:
• Synchronized drive of both impellers
• More uniform airflow output
• More stable air volume control
Simultaneously, optimized dynamic balancing design reduces vibration and noise.
• Speed Range: 300-1150RPM
• Supports: 0-10V analog speed control
• Smooth speed adjustment with no jitter or jerking
• Enables automatic airflow reglation, energy-efficient operation, and intelligent temperature control.
Our fan coil unit motors are widely used in:
• Central air conditioning fan coils for hotels, office buildings, and shopping malls
• Air conditioning terminal units for hospitals, schools, and office buildings
• Fresh air systems, cleanroom fans, and ventilation equipment
• Central air conditioning retrofits and replacement of old motors
All Trustec ECM fan coil unit motors are manufactured under the strict ISO9001 quality management system, ensuring stable performance and consistent quality
• All ECM fan coil unit motors from trusTec are manufactured by strictly following the ISO9001 management system
• 48 Frame ECM motor enjoy at least 2 full years warranty since leaving the factory
• 100% replacement is guaranteed for any defect among the warranty period
• Our ECM HVAC motors have been approved by RoHS, CCC, CE and UL certificates.
• Trustec ECM motors are 100% exported to American, Eurpoe, Mid-East, Asia, and have been approved by the global market.
Original Equipment Manufacturer, Support Customization Service
Depending on Trustec team's powerful designing and manufacturing ability, customers' special needs of the motors and fans, including performance parameters and mounting dimensions, will be perfectly fulfilled
Trustec branded motord and fans are 100% exported to America, Europe, Mid-East, Asia, and have been approved by the global market
Our company is attending HVAC/R fairs held in China, Asia, Europe, Mid-East and America every year
The beneficial ODM co-operative relation will be warmly established with trust and loyalty
The pricise price will be quoted after checking the specification and mounting dimension of the motor.
The warranty is 18 months on the production date, under the warranty we will aford the shipping cost to send the replacement.
Yes, we can offer the ODM.
By sea, by air, by courier(UPS, DHL, Fedex, TNT etc.)
Normally 15-30 days.
Normaly 3 days if we have the sample in hand. If customized one, about a week around.
No. our design team works with end users and OEMs to provide the lowest total life cycle cost solution. If continuous operation is criticl to your operation, our technologies can design and manufacturer motors based your specific or unique needs to avoid costly equipment down time.
