TZD-50-10A-UTZ
trusTec
50W
300-1150RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|

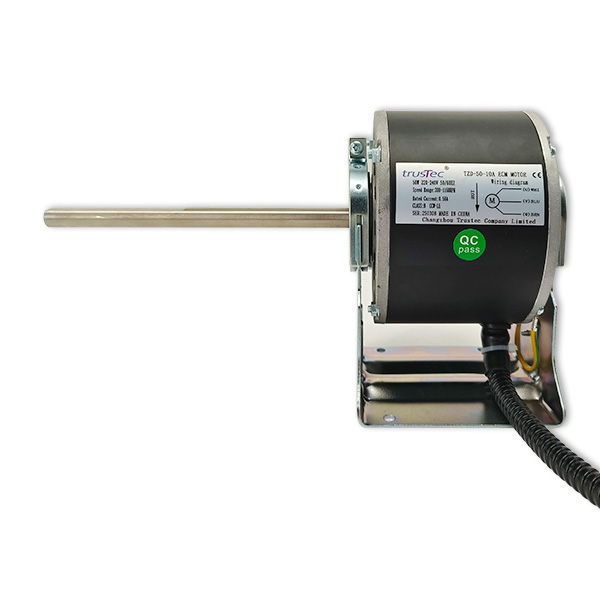

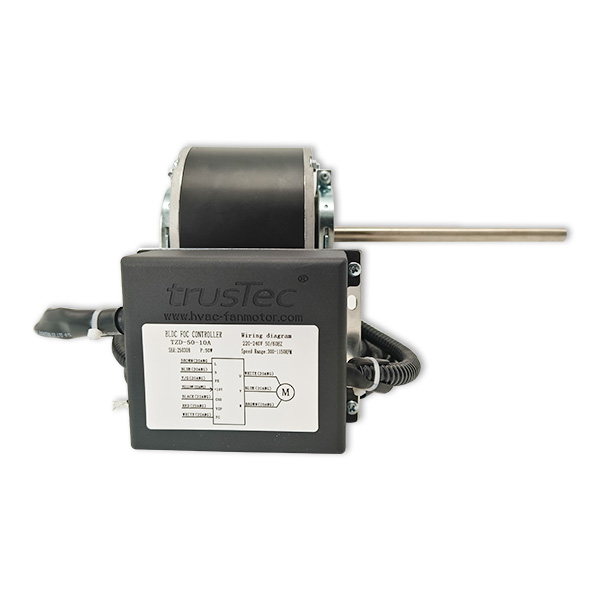

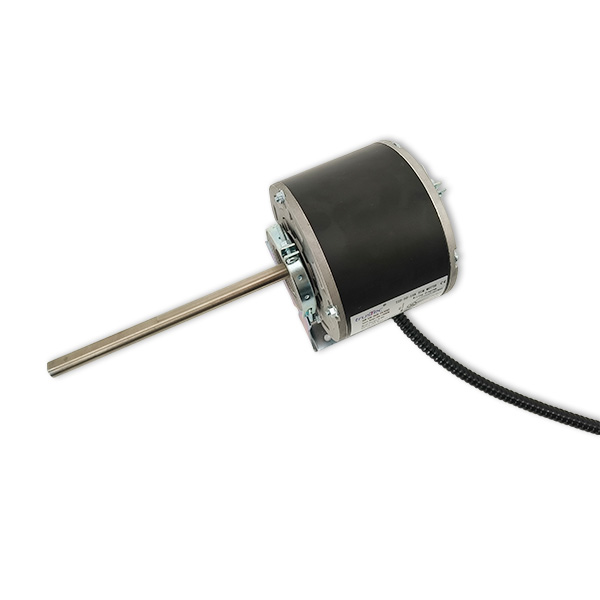

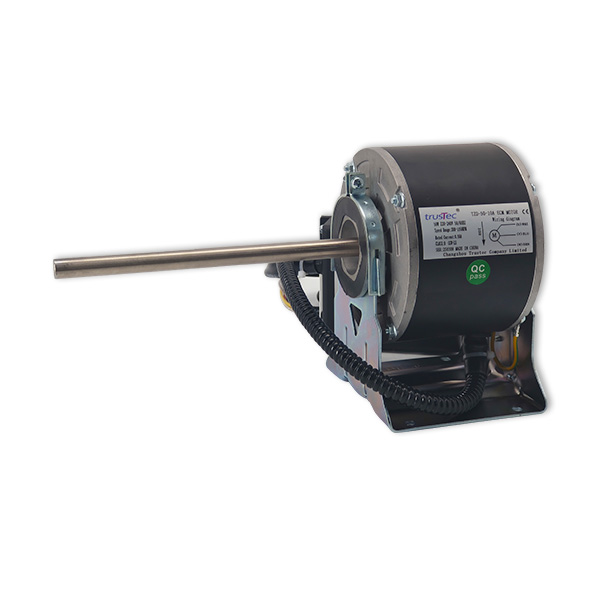

| Product: | ECM Fan Coil Unit Motor | Supply Voltage: | 220-240V |
| Enclosure Type: | TEAO (Toatlly Enclosed Air Over) | Supply Frequency: | 50 / 60 HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.56A |
| Phase: | Single Phase | Output Power | 1/15HP |
| Mounting: | Bracket | Speed: | 300-1150RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | All Angle | Flat Length: | 3.15" / 80mm |
| Insulation Class: | Class B | Shaft Length: | 11.50" / 292mm |

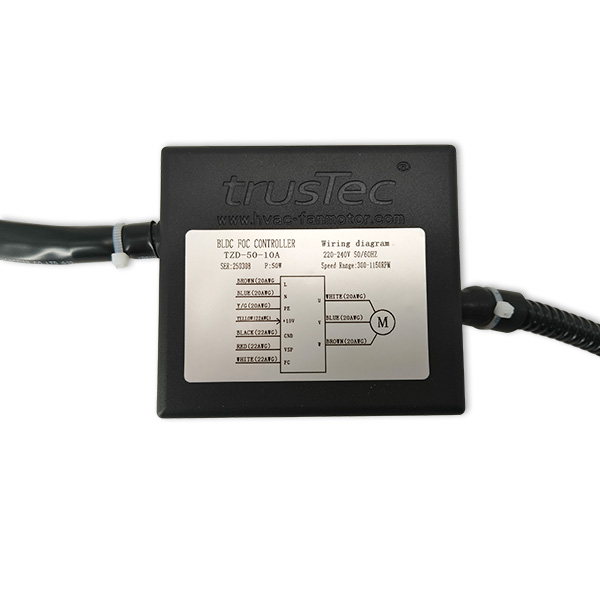

| Control Mode: | VSP (0-10V) | Shaft Diameter: | 0.49" / 12mm |
| Rotation: | CCW(LE) | Lead Length: | 62.99" / 1600mm |
| Max. Ambient Temperature: | 40 ℃ / 104℉ | ||
Trustec 50W 300-1150RPM fan coil unit motor is designed specifically for HVAC fan coil system, suitable for 220-240V power environments, meeting your different air volume needs.
Our ECM fan coil unit motor has higher energy utilization efficiency, significantly reducing system energy consumption, while effectively reducing operating noise, improving the overall comfort and stability of the HVAC system .
Trustec ECM fan coil unit motors significantly outperform traditional AC motors in efficiency, reducing operational energy consumption for HVAC fan coil systems.
Optimized motor structure and electronic control systems ensure stable, quiet operation even at low speeds, delivering comfortable airflow for hotels, offices, and residential environments.
Supports stable speed regulation within the 300-1150RPM range, enabling airflow adjustment to meet diverse HVAC system and ventilation requirements while enhancing overall system efficiency.
The brushless structure minimizes mechanical wear and maintenance needs, significantly extending motor lifespan to deliver reliable, long-term stable operation.
Trustec ECM Fan Coil Motors are widely used in various HVAC systems, delivering efficient, low-noise, and stable airflow for diverse application.
• Hotel Air Conditioning systems - Providing comfortable and quiet guest room environments
• Apartment Fan Coil Systems - Meeting varied airflow demands in residential settings
• Commercial Office Building HVAC Systems - Support energy-efficient air conditioning operation
• Hospital Air Conditioning Systems - Ensure clean, stable air circulation
• School Building HVAC Systems - Delivers reliable, low-noise comfort air
All Trustec ECM fan coil unit motors are manufactured under the strict ISO9001 quality management system, ensuring stable performance and consistent quality.
• Minimum 2-year warranty from the date of shipment
• 100% replacement guarantee for any manufacturing defects during the warranty period
• Certified with RoHS, CCC, CE, and UL standards
• Products exported worldwide, including North America, Europe, the Middle East, and Asia.
Trustec motors have been widely recognized and trusted by global HVAC equipment manufacturers.
Original Equipment Manufacturer, Support Customization Service
Depending on Trustec team's powerful designing and manufacturing ability, customers' special needs of the motors and fans, including performance parameters and mounting dimensions, will be perfectly fulfilled
Trustec branded motord and fans are 100% exported to America, Europe, Mid-East, Asia, and have been approved by the global market
Our company is attending HVAC/R fairs held in China, Asia, Europe, Mid-East and America every year
The beneficial ODM co-operative relation will be warmly established with trust and loyalty
The pricise price will be quoted after checking the specification and mounting dimension of the motor.
The warranty is 18 months on the production date, under the warranty we will aford the shipping cost to send the replacement.
Yes, we can offer the ODM.
By sea, by air, by courier(UPS, DHL, Fedex, TNT etc.)
Normally 15-30 days.
Normaly 3 days if we have the sample in hand. If customized one, about a week around.
No. our design team works with end users and OEMs to provide the lowest total life cycle cost solution. If continuous operation is criticl to your operation, our technologies can design and manufacturer motors based your specific or unique needs to avoid costly equipment down time.
