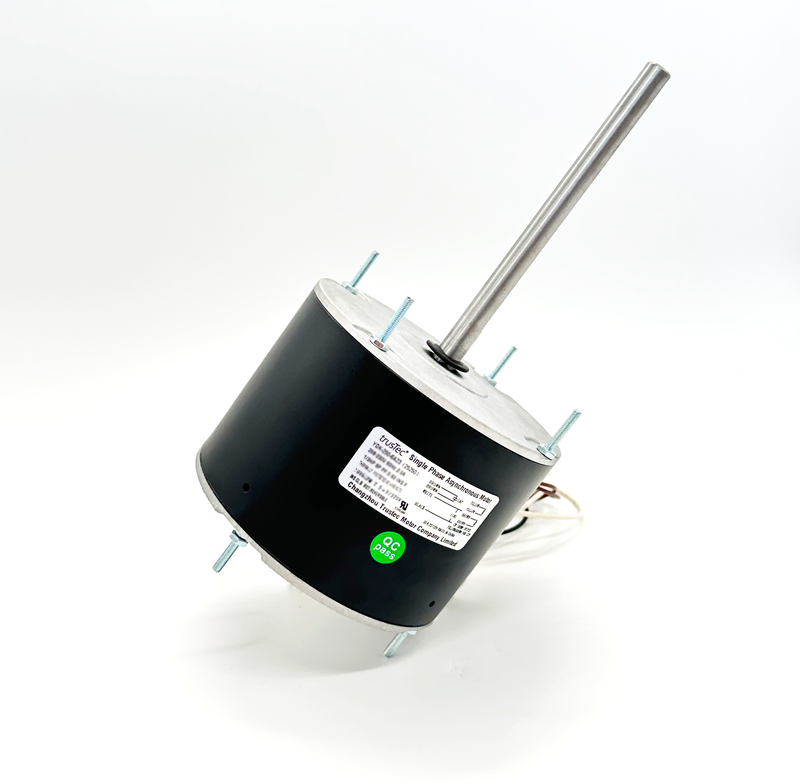

48 Frame Condenser Fan Motor - Multi HP 1/3 1/4 1/5 1/6HP 1075/2RPM 208-230V 60HZ

  • CTM5-465

  • trusTec

  • Nema 48

  • 1/3 1/4 1/5 1/6HP

  • 1075/2RPM

  • 200pcs

  • Negotiable (FOB/CNF/CIF)

  • Standard carton packing, foam board inside for protection.

  • T/T, L/C

  • 15 days fresh products after order confirmation.

  • 100,000 pcs per month

  • E529388

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Multi HP 1075RPM 48 Frame Condenser Fan Motor Specifications and Features

Product Condenser Fan Motor Frame Nema 48
Motor Type Permanent Split Capacitor Supply Voltage 208-230V
Enclosure Type TEAO(Totally Enclosed Air Over) Supply Frequency 60Hz
Thermal Overload Equipped With An Automatic Thermal Overload Current 2.6A
Phase Single Phase Output HP 1/3 1/4 1/5 1/6HP
Shaft Flats One Flat Rated Speed 1075/2RPM
Mounting Orientation All Angle Capacitor 7.5uF/370V
Drain Hole Opposite Shaft End Insulation Class Class B
Mounting Stud Mounting All Angel Shaft Length 5.5",customizable
Bearings Ball Bearing Shaft Diameter 1/2"
Max. Ambient Temperature 40℃/104℉ Rotation Reversible
High Light 1/6HP Condenser Fan Motor, 1075/2RPM Condenser Fan Motor, Nema 48 Frame Condenser Fan Motor

Cross Reference


You can refer to the file for more motor models atCROSS REFERENCE TRUSTEC MOTOR.pdf
