YDK-150-6A10
trusTec
Nema 48
1/5HP
1075RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
E529388
| Quantity: | |
|---|---|

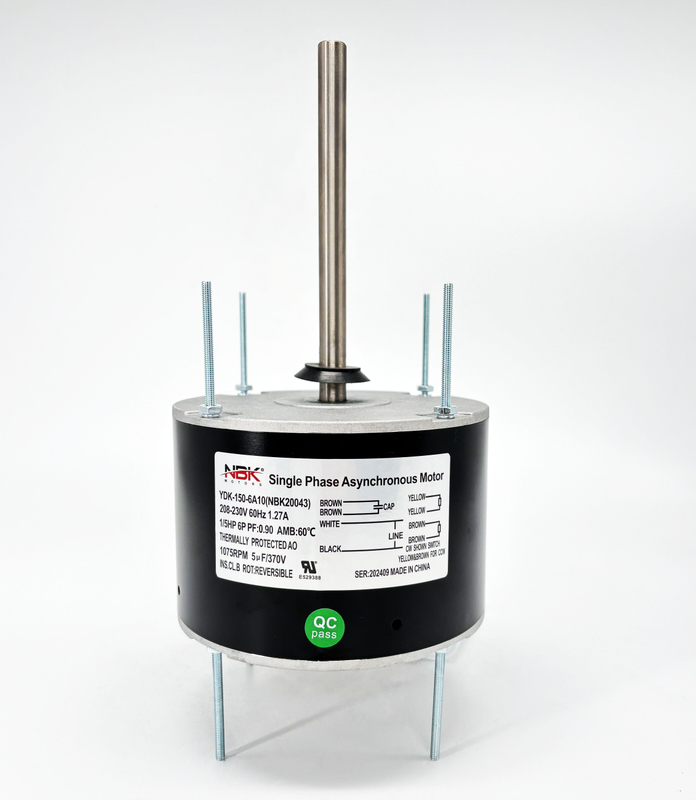

| Product | Condenser Fan Motor | Frame | Nema 48 |
|---|---|---|---|
| Motor Type | Permanent Split Capacitor | Supply voltage | 208-230V |
| Enclosure Type | TEAO(Totally Enclosed Air Over) | Supply Frequency | 60Hz |
| Thermal Overload | Equipped With An Automatic Thermal Overload | Current | 1.27A |
| Phase | Single Phase | Output HP | 1/5HP |
| Shaft Flats | Right Angle Flat | Rated Speed | 1075RPM |
| Mounting Orientation | All Angle | Capacitor | 5uF/370V |
| Drain Hole | Opposite Shaft End | Housing | 3.94" / 100mm |
| Mounting | Stud Mounting All Angel | Shaft Length | 6"/152.4mm |
| Bearings | Ball Bearing | Shaft Diameter | 0.5"/12.7mm |
| Max. Ambient Temperature | 60℃/10℉ | Flat Length | 5.03''/128mm |
| Insulation Class | Class B | Screw Length | 1.88''/48mm |
| Rotation | Reversible | Lead Length | 55.1''/1400mm |
| High Light | 1/5HP Condenser Fan Motor, 5uF/370V Condenser Fan Motor, 208-230V Condenser Fan Motor | ||
