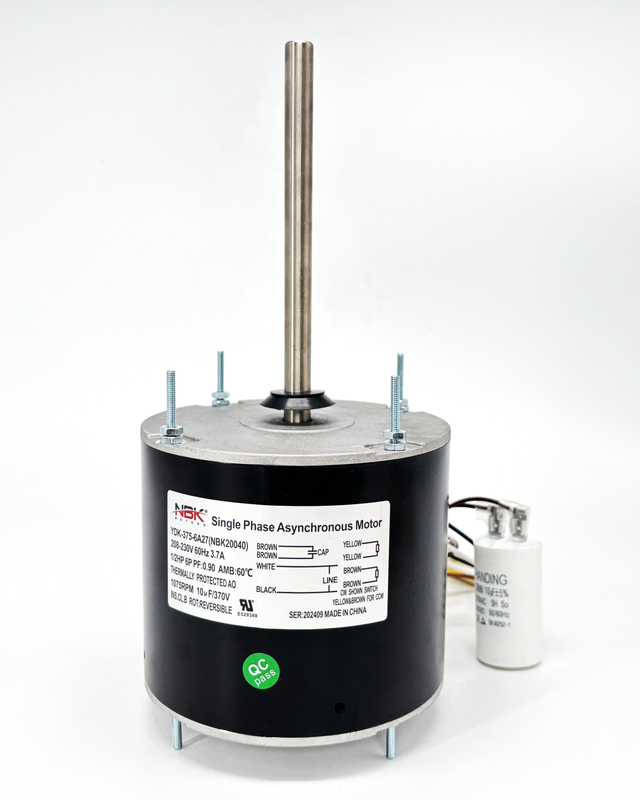

48 Frame Condenser Fan Motor - 375W 1075RPM 208-230V 60HZ

  • YDK-375-6A27

  • trusTec

  • Nema 48

  • 1/2HP

  • 1075RPM

  • 200pcs

  • Negotiable (FOB/CNF/CIF)

  • Standard carton packing, foam board inside for protection.

  • T/T, L/C

  • 15 days fresh products after order confirmation.

  • 100,000 pcs per month

  • E529388

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

375W 48 Frame Condenser Fan Motor Specifications and Features


ProductCondenser Fan MotorFrameNema 48
Motor TypePermanent Split CapacitorSupply voltage208-230V
Enclosure TypeTEAO(Totally Enclosed Air Over)Supply Frequency60Hz
Thermal OverloadEquipped With An Automatic Thermal OverloadCurrent3.7A
PhaseSingle PhaseOutput HP1/2HP
Shaft FlatsRight Angle FlatRated Speed1075RPM
Mounting OrientationAll AngleCapacitor10uF/370V
Drain HoleOpposite Shaft EndHousing4.92"/125mm
MountingStud Mounting All AngelShaft Length6.50"/165mm
BearingsBall BearingShaft Diameter0.5"/12.7mm
Max. Ambient Temperature60℃/10℉Flat Length5.04''/128mm
Insulation ClassClass BScrew Length1.00''/25.4mm
RotationReversibleLead Length27.60''/700mm
High Light1/2HP Condenser Fan Motor, 10uF/370V Condenser Fan Motor, 208-230V Condenser Fan Motor
