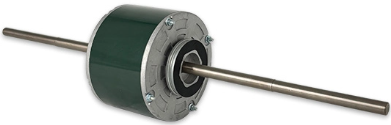

Fan coil units are ubiquitous in modern HVAC systems. From hotel guest rooms and office buildings to hospitals and residential apartments, these terminal units provide localized heating and cooling control that central air handling units cannot easily match. At the core of every fan coil unit lies a blower motor—a component that determines airflow volume, noise level, energy consumption, and overall occupant comfort. When off-the-shelf motors fail to meet specific performance, dimensional, or control requirements, a custom fan coil unit motor becomes the only practical solution.
Custom engineering transforms a generic fractional horsepower motor into a precisely calibrated driver that matches the fan coil’s coil geometry, static pressure characteristics, and control interface. This guide explores why customization matters, the key parameters involved, the engineering and manufacturing process, and how to partner with a qualified manufacturer like Trustec to deliver motors that perform flawlessly in real-world installations.
Fan coil units vary enormously across manufacturers and model lines. Some are designed for high-static ducted applications requiring powerful motors that can push air through long runs of flexible ductwork. Others are low-static units intended for open plenum ceiling installations where noise is the primary concern. Standard fractional horsepower motors, mass-produced for general HVAC use, cannot accommodate this diversity.
Consider physical fit. A fan coil unit may have a specific motor mounting bracket cast into the housing, requiring a unique flange pattern and bolt circle. A standard 48-frame motor might have the correct horsepower but the wrong shaft length—too short to engage the blower wheel, or too long, interfering with the cabinet wall. Similarly, the motor’s overall diameter may prevent proper airflow through the unit, creating recirculation zones that reduce coil performance.
Control compatibility presents another challenge. Modern fan coil units increasingly use ECM (electronically commutated) motors that respond to low-voltage signals from thermostats or building management systems. However, different manufacturers employ different communication protocols—0-10V analog, PWM, or proprietary digital interfaces. A standard “universal” ECM may not interpret the control signal correctly, leading to erratic fan speeds or complete failure to start.
Environmental conditions within fan coil units also vary. Units installed in coastal hotels face salt corrosion. Those in attic mechanical rooms endure high temperatures. Units serving swimming pool dehumidifiers operate in humid, chemically aggressive air. A standard motor with basic enamel coating may fail within months, while a custom motor with epoxy-sealed windings and stainless steel shaft lasts for years.
Designing a custom fan coil unit motor begins with a detailed specification of every parameter that affects performance, fit, and longevity.
Fan coil motors typically range from 1/20 HP to 1 HP, with 1/4 HP and 1/3 HP being most common. However, the required torque at operating speed is not simply a function of horsepower. The motor must overcome the blower wheel’s inertia at startup and maintain speed under varying static pressure. For PSC motors, torque is fixed by the motor’s design. For ECMs, torque can be programmed as constant torque (maintaining a set torque regardless of speed) or constant airflow (adjusting speed to maintain target CFM). Custom programming matches the torque curve exactly to the fan coil’s specific wheel and duct connection.
Many fan coil units offer three speed settings (low, medium, high) selected by the end user or thermostat. A custom motor can be designed with discrete speed taps that align with the unit’s OEM speed specifications. For ECMs, the number of speeds and the corresponding torque or airflow values are programmed into the motor’s onboard controller. For advanced applications, infinitely variable speed control via 0-10V or PWM input allows the building automation system to modulate fan speed continuously based on real-time heating or cooling demand.
Fan coil units are installed worldwide, and electrical supplies differ. North American units typically use 115V or 208-230V, 60Hz, single-phase power. Units destined for Europe, Asia, or the Middle East require 220-240V, 50Hz. Custom motors are wound and, in the case of ECMs, programmed to operate correctly on the intended supply frequency. A motor designed for 60Hz will run approximately 17 percent slower on 50Hz, delivering insufficient airflow.
Physical dimensions must match the fan coil unit’s blower assembly precisely. Custom motors can be designed with:
Specific frame diameters – Standard sizes (3.3-inch, 4.7-inch, 5.6-inch) or truly unique diameters to fit proprietary housings.
Mounting flange patterns – Round or square configurations with precise bolt hole locations and thread sizes.
Shaft diameter and length – Often 1/2-inch or 5/8-inch diameter, with length tailored to the blower wheel hub depth.
Shaft configuration – Flat, keyway, or D-shaped for positive wheel engagement.
Terminal box orientation – Rotated to face the unit’s wiring access panel for easy field connection.
For PSC motors, the wiring diagram must match the unit’s speed selector switch. Common configurations include three speed wires plus common, or four speed wires with a dedicated neutral. For ECMs, the control connector type (16-pin, 12-pin, 5-wire discrete) and pinout assignment must mirror the fan coil unit’s control board. Some custom ECMs are programmed to accept a simple 24VAC signal from a conventional thermostat, while others are designed for 0-10V analog from a building automation controller. Getting the interface right is essential for plug-and-play functionality.
Fan coil units are often installed in noise-sensitive environments: hotel rooms, hospital patient rooms, libraries, and high-end residences. A custom motor can be balanced to tighter tolerances than standard industrial motors, and bearings can be selected for low acoustic noise (such as double-shielded or sealed bearings with special grease). Vibration isolators can be integrated into the motor mounting, or the motor housing can be designed with damping material. Sound power levels as low as 30 dBA are achievable with careful custom design.
The motor’s operating environment dictates required protection. Custom options include:
Insulation class – Class B (130°C), Class F (155°C), or Class H (180°C) for elevated ambient temperatures.
Ingress protection (IP rating) – IP20 for indoor dry units, IP44 for splash-resistant applications, IP55 for dusty or outdoor locations.
Corrosion protection – Epoxy-coated housings, stainless steel shafts, sealed bearings, and moisture-drain holes for condensing environments.
Thermal overload protection – Automatic reset or manual reset, with trip temperature calibrated to the motor’s maximum safe winding temperature.
Developing a custom fan coil unit motor follows a structured pathway from concept to production-ready component.
The process begins with a detailed discussion between the customer and the manufacturer’s engineering team. The customer provides the fan coil unit model, target airflow at each speed, electrical supply, control interface, mounting dimensions, and environmental conditions. The manufacturer assesses feasibility, identifying any potential conflicts such as insufficient space for the required motor frame or control electronics.
Using computer-aided design (CAD) and electromagnetic simulation software, engineers create a complete motor design. Winding configurations are optimized for efficiency at the required speeds. The rotor and stator laminations are selected or custom tooled. For ECMs, the control board layout is designed, and firmware is written to implement the required speed-torque or airflow-control algorithm. Mechanical drawings detail every mounting feature, shaft dimension, and housing detail.
A small batch of prototypes (typically 5 to 20 units) is manufactured. These prototypes use the same materials and processes as production motors, ensuring that test results reflect final product performance.
Prototypes undergo rigorous testing:
Performance testing – Torque, speed, input power, and efficiency measured across the operating range.
Thermal testing – Motor operated at maximum load inside an environmental chamber at worst-case ambient temperature.
Acoustic testing – Sound pressure levels measured at 1 meter in a semi-anechoic chamber.
Vibration testing – Acceleration measured at mounting points.
Dielectric strength and insulation resistance – Ensuring electrical safety.
Approved prototypes are installed in actual fan coil units, either in the manufacturer’s test lab or in a field site. Airflow, noise, and temperature performance are verified under real operating conditions. Any discrepancies trigger design revisions and a second prototype round.
Once the design is finalized, production begins. Automated winding machines, precision assembly lines, and in-circuit testing for ECM boards ensure consistency. Every motor is tested for no-load current, speed, and vibration before packaging. Lot-level statistical process control tracks key parameters to detect any drift.
While any fan coil unit can theoretically use a custom motor, certain scenarios deliver the strongest return on investment.
OEM fan coil manufacturers – Differentiating their products with proprietary motor designs that cannot be replaced by generic aftermarket motors.
Retrofit of imported or obsolete units – Replacing failed motors in older fan coils where original parts are no longer available.
High-performance building projects – Achieving specific LEED energy targets or acoustic criteria that standard motors cannot meet.
Specialized environments – Cleanrooms, laboratories, or data centers requiring precise, repeatable airflow control.
Hospitality and healthcare – Ultra-low noise motors for patient rooms and hotel guest accommodations where noise complaints directly impact revenue.
Not all motor suppliers are equipped for true custom engineering. When evaluating potential partners, consider these criteria:
In-house engineering – Does the manufacturer have electrical, mechanical, and firmware engineers, or do they simply assemble catalog designs?
Minimum order quantities (MOQs) – Some suppliers require 500+ units for custom tooling. Trustec offers flexible MOQs for smaller runs and pilot projects.
Quality certifications – ISO 9001, UL, CE, RoHS demonstrate process maturity and product safety.
Lead time – Typical custom development takes 4–8 weeks from specification to prototype approval.
Communication and support – A responsive engineering team that asks the right questions and provides clear documentation.
Trustec combines over a decade of fractional horsepower motor engineering with a commitment to customer-specific solutions. Our team has designed and manufactured custom fan coil unit motors for applications ranging from luxury hotel PTAC units to industrial process cooling fan coils.
Our custom capabilities include:
PSC and ECM technologies, programmable for constant torque or constant airflow.
Single-phase and three-phase configurations, 115V to 460V, 50/60Hz.
Custom shaft, flange, and housing designs to match any fan coil unit.
Programming for 0-10V, PWM, proprietary digital, or simple speed tap controls.
Rigorous acoustic and vibration optimization for noise-sensitive installations.
Thermal and environmental protection tailored to the installation site.
Whether you are an OEM seeking a proprietary motor design or a facility manager facing a difficult retrofit, Trustec delivers engineering-grade reliability backed by responsive support and dependable lead times.
The fan coil unit motor is far more than a commodity component. It determines airflow, energy use, noise, and occupant comfort. When standard motors cannot meet the unique demands of a specific fan coil unit, custom engineering provides the only path to optimal performance. By specifying the correct horsepower, torque characteristics, physical dimensions, control interface, and environmental protection, you ensure that the motor becomes a seamless extension of the equipment it serves.
Partnering with an experienced manufacturer like Trustec transforms the complexity of custom motor design into a manageable, predictable process—delivering a motor that fits perfectly, performs reliably, and lasts as long as the fan coil unit itself.
