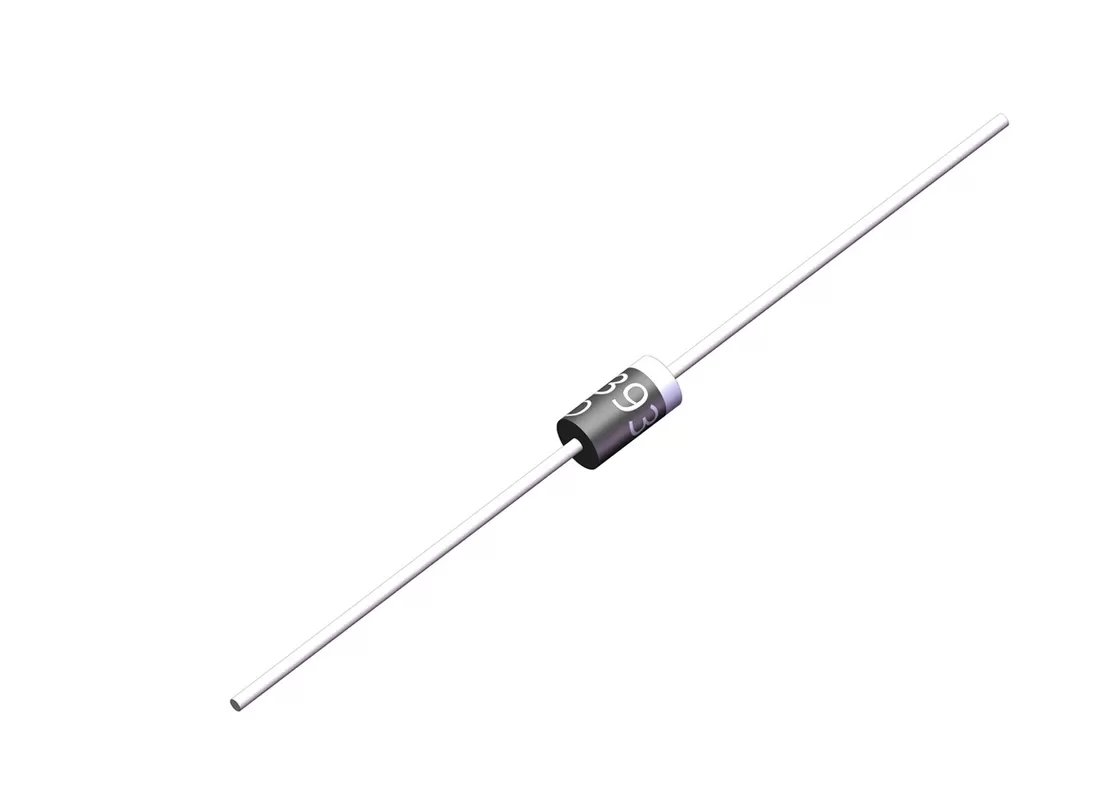

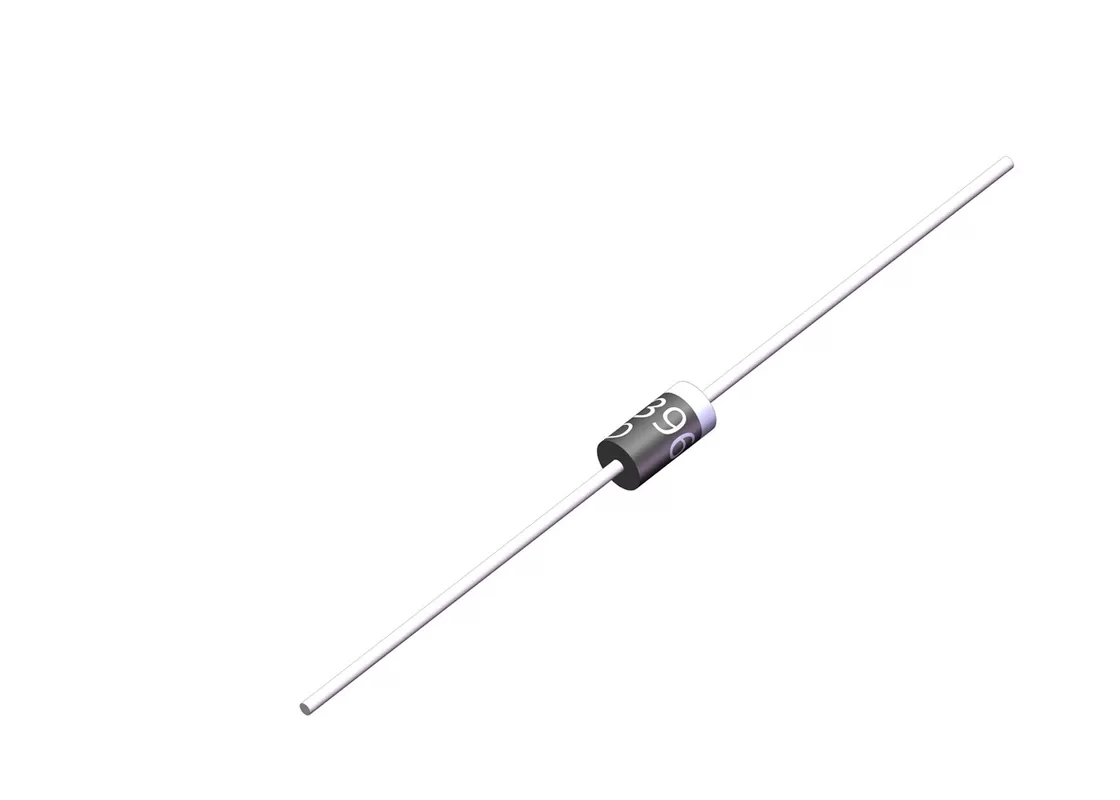

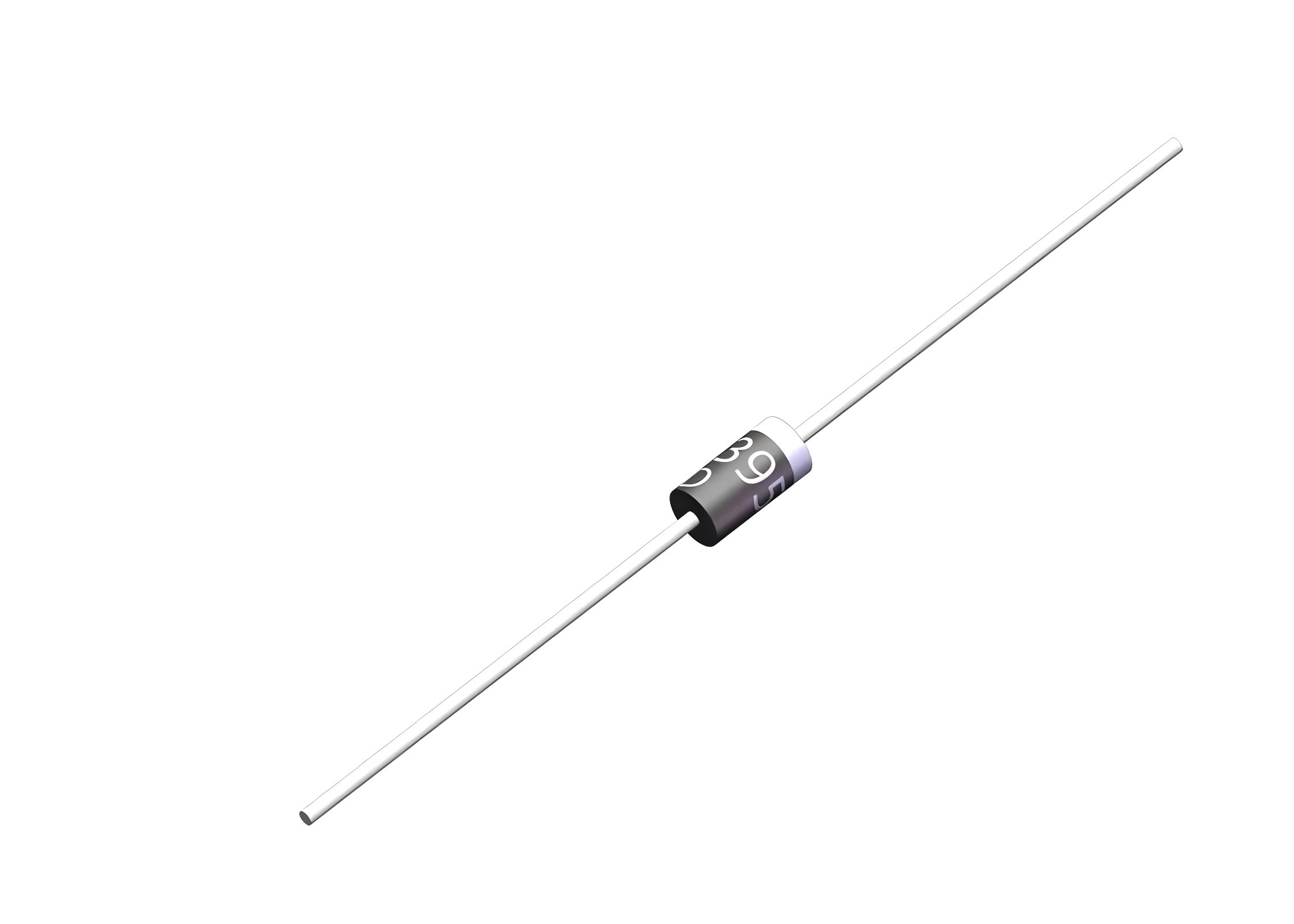

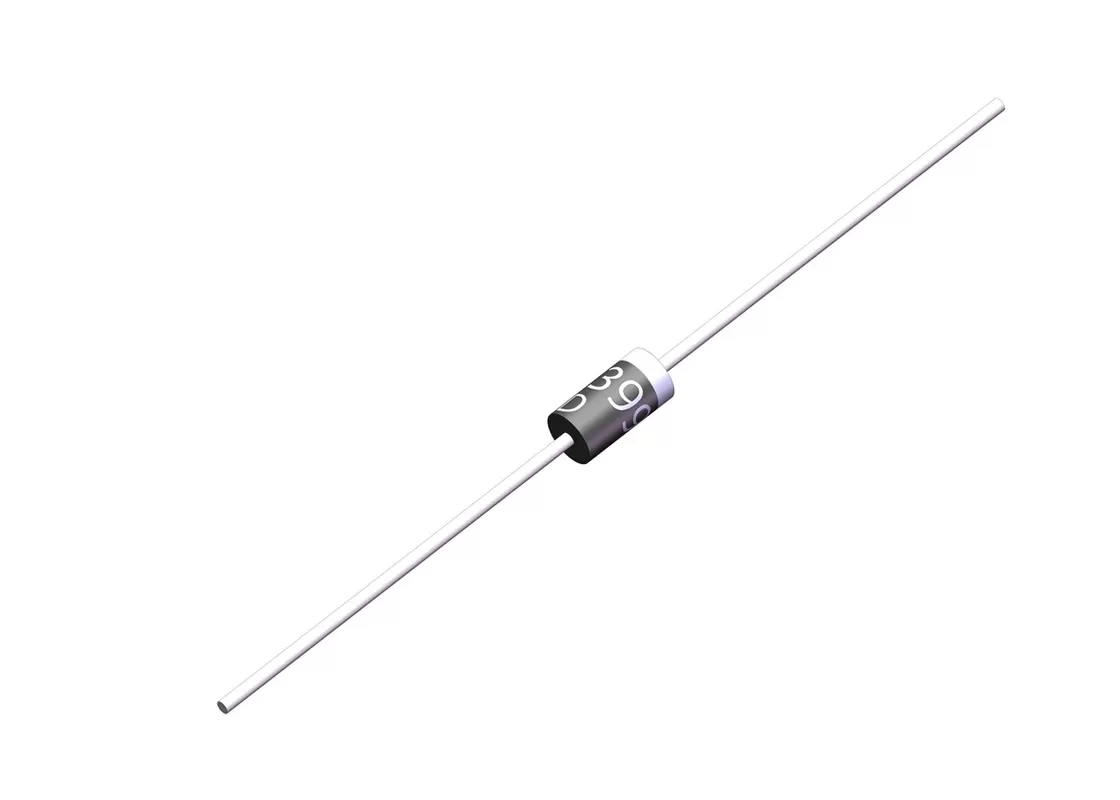

1.5A 1000V General Purpose Rectifier Diode 1N5391 THRU 1N5399 DO-15

  • 1N5391 THRU 1N5399

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature


The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Construction utilizes void-free molded plastic technique

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension


Mechanical Data


Case:

JEDEC DO-15 molded plastic body

Terminals:

Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.014 ounce, 0.40 grams

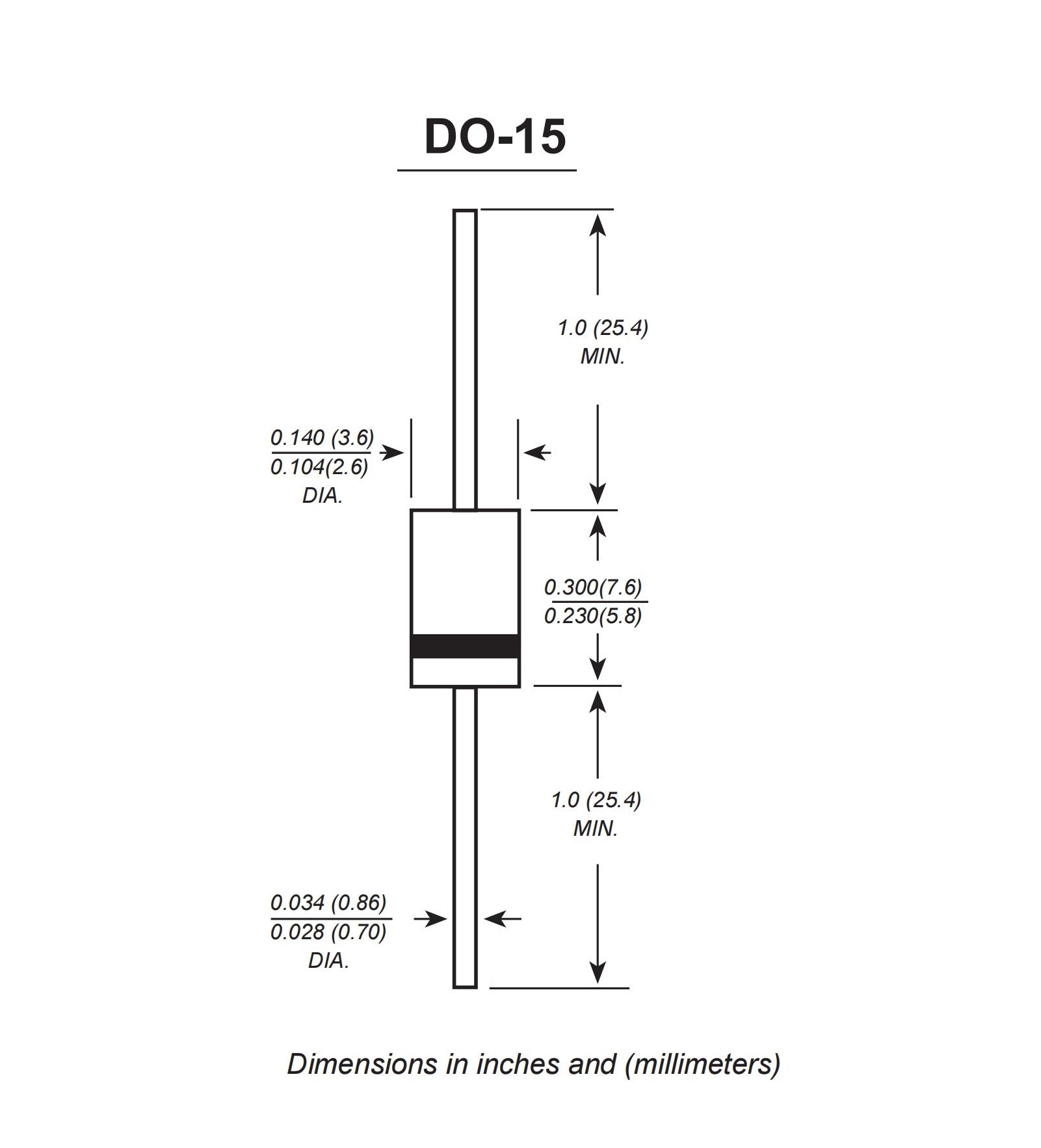

Product Drawing

DO-15

Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



 SYMBOLS 1N
5391		 1N
5392		 1N
5393		 1N
5394		 1N
5395		 1N
5396		 1N
5397		 1N
5398		 1N
5399		 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 300 400 500 600 800 1000 VOLTS
Maximum RMS voltage VRMS 35 70 140 210 280 350 420 560 700 VOLTS
Maximum DC blocking voltage VDC 50 100 200 300 400 500 600 800 1000 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ I(AV) 1.5 Amps
Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 50 Amps
Maximum instantaneous forward voltage at 1.5A VF 1.0 VOLTS
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃		 IR 5.0
50.0		 µA
Typical junction capacitance (NOTE 1) CJ 20.0 pF
Typical thermal resistance (NOTE 2) RθJA 50.0 ℃/W
Operating and storage temperature range TJ,TSTG -65 to +175 ℃


Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

download 1N5391 THRU 1N5399.pdf
