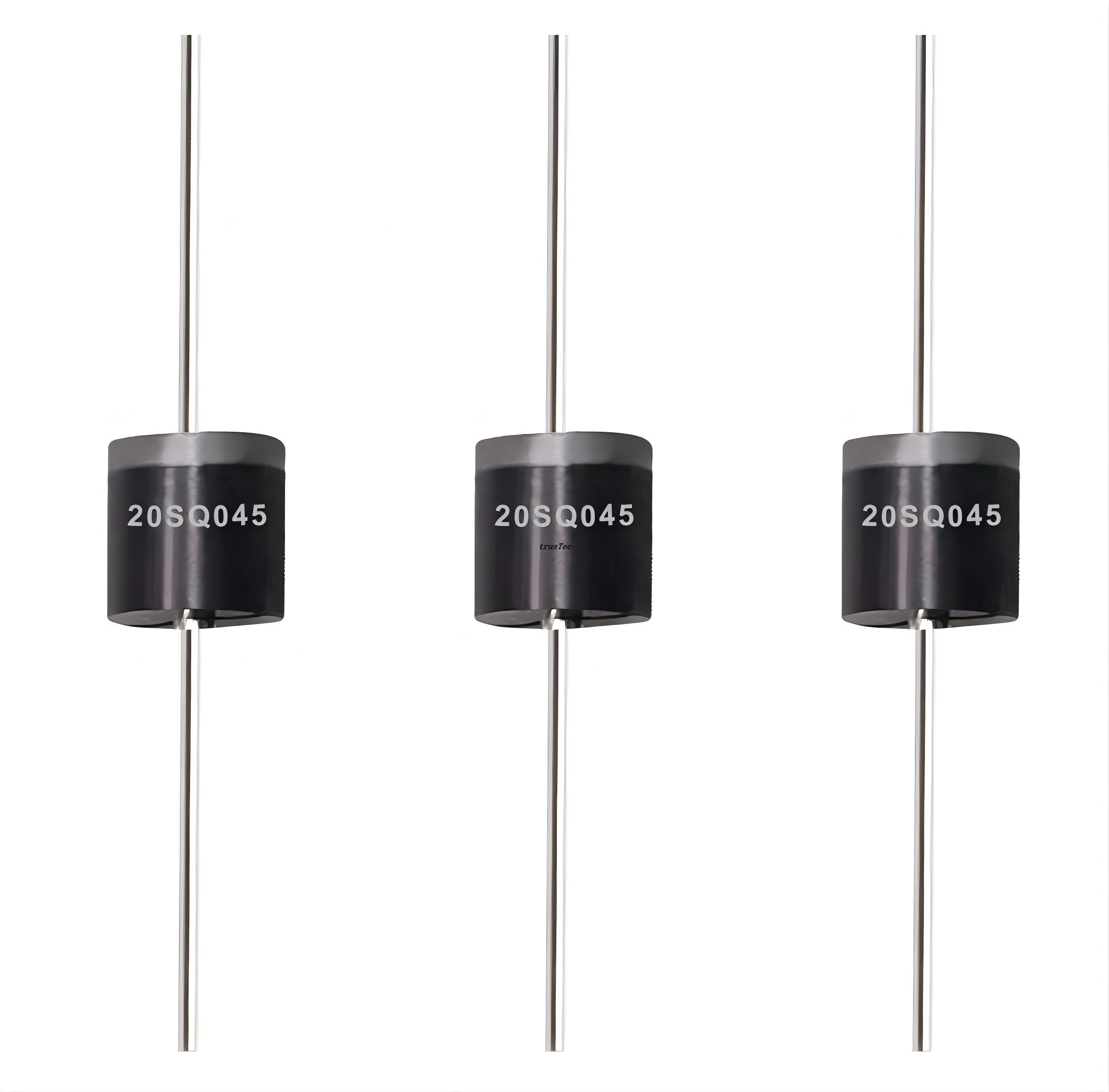

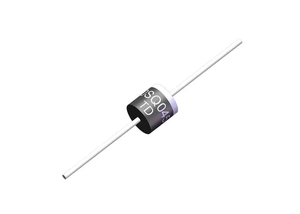

Plastic Rectifier 20SQ045 40V-45V 20A diode R-6 pakage

  • 20SQ045

  • trusTec

  • 200，000pcs

  • Negotiable (FOB/CNF/CIF)

  • T/T, L/C

  • 15-30 days fresh products after order confirmation.

  • 200,00000 pcs per month

Availability:
Quantity:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature


Metal of silicon rectifier , majority carrier conduction

Guard ring for transient protection

Low power loss,high efficiency

High current capability,low VF

High surge capacity

For use in low voltage,high frequency inverters,free wheeling,and polarity protection applications


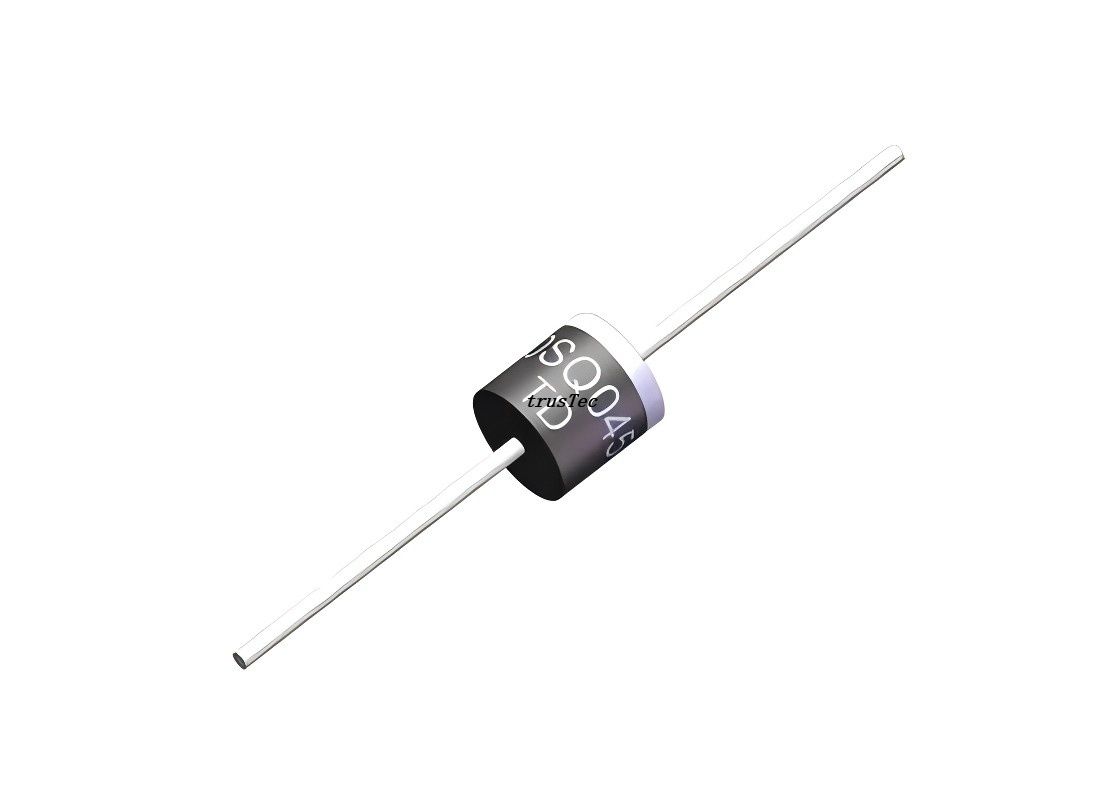

Mechanical Data


Case:

JEDEC R-6 molded plastic

Polarity:

Color band denotes cathode

Mounting position:

Any

Weight:

0.07 ounces , 2.1 grams

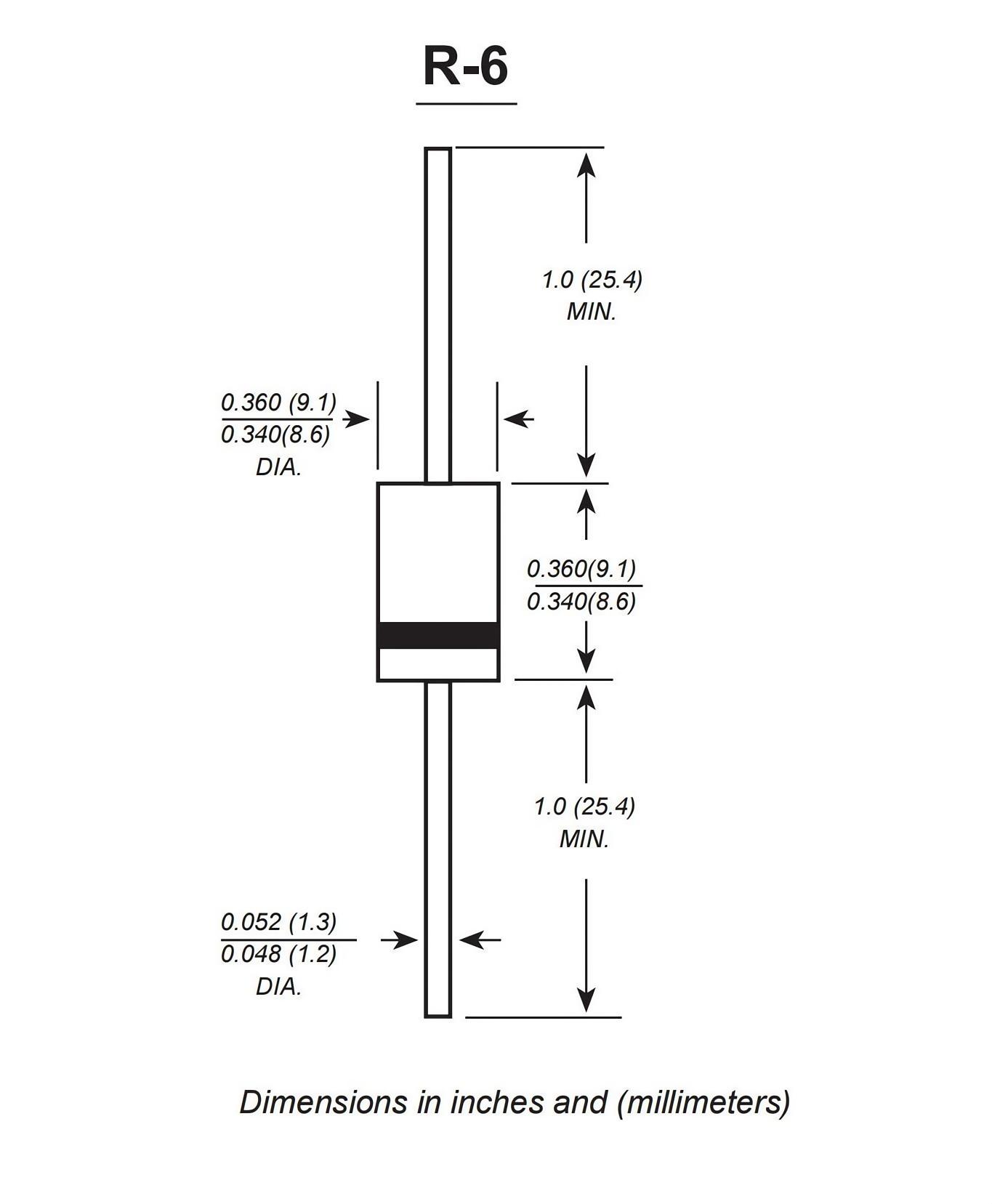

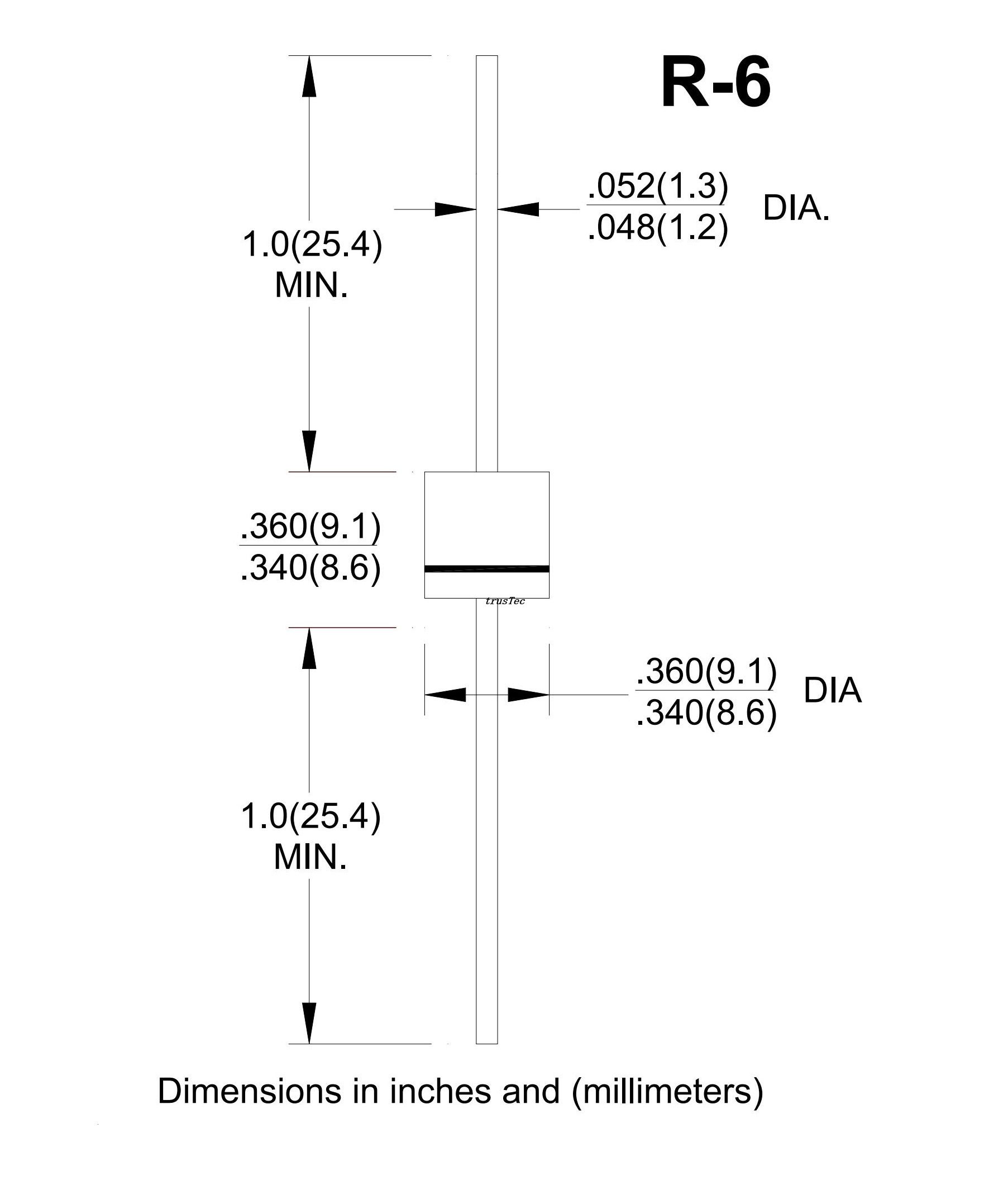

Product Drawing

R-6

Maximum Ratings and Electrical Characteristics


Ratings at 25℃ ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



 SYMBOL 20SQ045 UNITS
Maximum recurrent peak reverse voltage VRRM 45 VOLTS
Maximum RMS voltage VRMS 31.5 VOLTS
Maximum DC blocking voltage VDC 45 VOLTS
Maximum average forward
rectified current                        @TC=170℃		 I(AV) 20 Amps
Peak forward surge current 8.3ms single half sine-wave super imposed on rated load (JEDEC Method) IFSM 450 Amps
Peak forward voltage at 20A DC(Note1) VF 0.53 VOLTS
Maximum DC reverse current   @Tj=25 ℃
at rated DC blocking voltage    @Tj=125℃		 IR 0.5
80		 µA
µA
Typical thermal resistance (Note2) RθJC 2.5 ℃/W
Operating junction and storage temperature range TJ, TSTG -55 to +200 ℃


Note:

1. 300us Pulse Width, 2%Duty Cycle.

2. Thermal Resistance Junction to case without heatsink.

download 20SQ045.pdf
