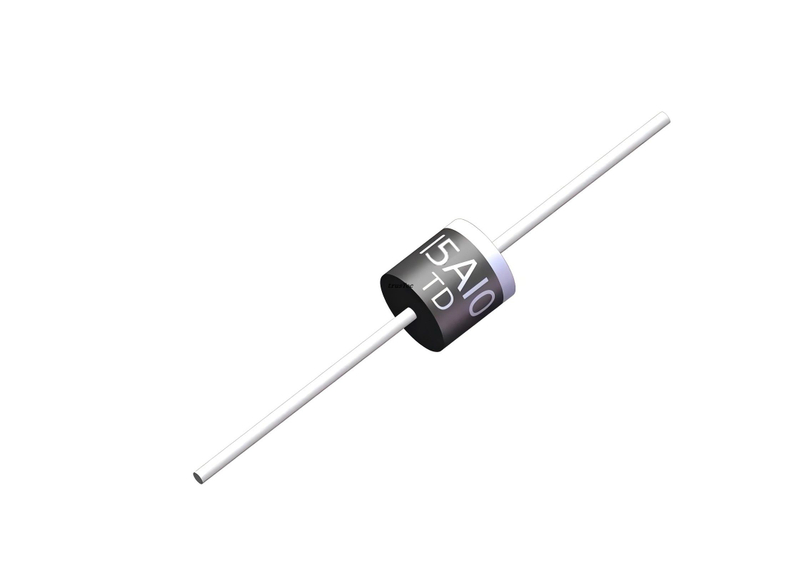

Feature
Low forward voltage drop
Low leakage current
High forward surge capability
High temperature soldering guaranteed 260℃/10 seconds,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension
Mechanical Data
Case:
Transfer molded plastic
Epoxy:
UL94V-0 rate flame retardant
Polarity:
Color band denotes cathode end
Lead:
Plated axial lead, solderable per MIL-STD-202E method 208C
Mounting position:
Any
Weight:
0.07ounce, 2.1 gram
Product Drawing
![R-6]()
Maximum Ratings and Electrical Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
| SYMBOLS | 15A10 | UNITS |
| Maximum repetitive peak reverse voltage | VRRM | 1000 | VOLTS |
| Maximum RMS voltage | VRMS | 700 | VOLTS |
| Maximum DC blocking voltage | VDC | 1000 | VOLTS |
Maximum average forward rectified current
0.375”(9.5mm) lead length at TA=60℃ | I(AV) | 15.0 | Amps |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) | IFSM | 400 | Amps |
| Maximum instantaneous forward voltage at 15.0A | VF | 1.0 | VOLTS |
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃ | IR | 15.0
400 | µA
µA |
| Typical junction capacitance (NOTE 1) | CJ | 100 | pF |
| Typical thermal resistance (NOTE 2) | RθJA | 10 | ℃/W |
| Operating junction and storage temperature range | TJ,TSTG | -65 to +150 | ℃ |
Note:
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Thermal Resistance from Junction to Ambient .375" (9.5mm) lead length.
