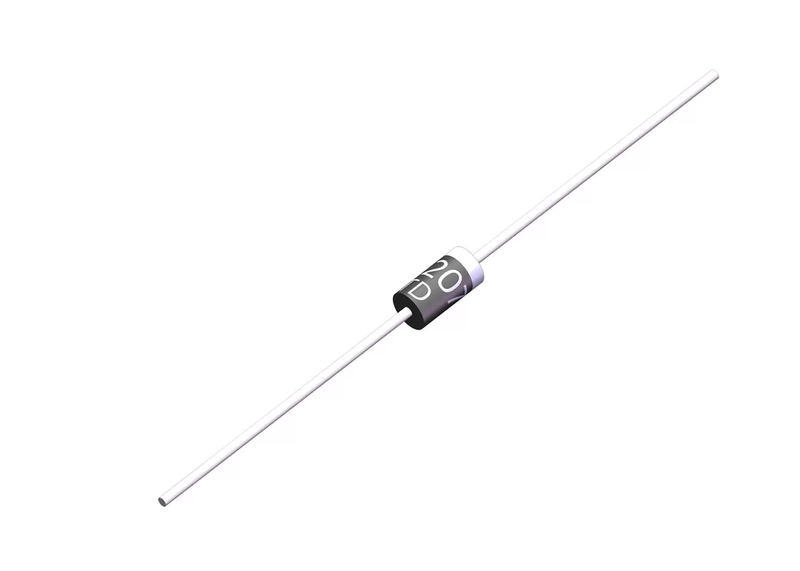

RL201
trusTec
200，000pcs
Negotiable (FOB/CNF/CIF)
T/T, L/C
15-30 days fresh products after order confirmation.
200,00000 pcs per month
| Quantity: | |
|---|---|
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Construction utilizes void-free
molded plastic technique
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension
R-1 molded plastic body
Ratings at 25℃ ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
| SYMBOLS | 2A05 | 2A1 | 2A2 | 2A4 | 2A6 | 2A8 | 2A10 | UNITS | |
|---|---|---|---|---|---|---|---|---|---|
| RL201 | RL202 | RL203 | RL204 | RL205 | RL206 | RL207 | |||
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | VOLTS |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | VOLTS |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | VOLTS |
| Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃ | I(AV) | 2 | Amps | ||||||
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) | IFSM | 70 | Amps | ||||||
| Maximum instantaneous forward voltage at 3.0A | VF | 1.0 | VOLTS | ||||||
| Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃ | IR | 5.0 100 | µA | ||||||
| Typical junction capacitance (NOTE 1) | CJ | 20.0 | pF | ||||||
| Typical thermal resistance (NOTE 2) | RθJA | 50.0 | ℃/W | ||||||
| Operating junction and storage temperature range | TJ,TSTG | -65 to +175 | ℃ | ||||||
1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
