0-10V ECM Motor: Precision Control for Modern HVAC Systems
Target Keyword: 0-10V ECM motor
In modern HVAC and industrial automation, precise control over airflow is not a luxury—it is a necessity. Whether you are managing a cleanroom that requires strict pressure differentials, a VAV (Variable Air Volume) box that must respond to changing zone loads, or an industrial exhaust system that needs to ramp up and down smoothly, you need a motor that can follow commands accurately. That motor is the 0-10V ECM motor.
At Trustec, we engineer and supply 0-10V ECM motor solutions for clients ranging from OEM equipment manufacturers to facility maintenance teams. This guide will explain what a 0-10V ECM motor is, how it works, why you would choose one over other control options, and how to successfully integrate it into your system.
A 0-10V ECM motor is an electronically commutated motor that accepts a 0 to 10 Volt DC analog input signal to determine its operating speed or torque. The voltage level directly corresponds to the motor's output:
0 Volts: Motor off or minimum speed (typically 0 RPM, though some configurations use 0V as a standby mode)
2 Volts: Low speed (e.g., 20% of maximum RPM)
5 Volts: Medium speed (e.g., 50% of maximum RPM)
10 Volts: Maximum speed (100% of rated RPM)
The relationship between voltage and speed is usually linear, though some 0-10V ECM motor models allow the user to program a custom curve (e.g., 2-10V range instead of 0-10V).
This analog control method is an industry standard because it is simple, reliable, and widely supported by building automation systems (BAS) from major brands like Siemens, Johnson Controls, Honeywell, and Schneider Electric.
To understand why a 0-10V ECM motor might be the right choice, you need to compare it to alternative control interfaces.
Control Method | Signal Type | Precision | Common Applications |
|---|---|---|---|
0-10V (Analog) | Variable DC voltage | High (1-2% resolution) | BAS integration, VAV boxes, industrial controls |
PWM (Pulse Width Modulation) | Digital square wave | High | OEM-specific equipment, some European systems |
4-20mA (Current Loop) | Variable current | Very high (0.5% resolution) | Long cable runs, industrial process control |
Line-Voltage Taps | Discrete AC voltage | Low (fixed speeds) | Basic retrofits, simple furnaces |
Digital Communication (RS-485, Modbus) | Serial data | Highest | Complex systems with feedback and diagnostics |
The 0-10V ECM motor strikes an excellent balance: it offers high precision without the complexity of digital communication protocols, and it works over cable runs of up to 100 feet or more without signal degradation.
There are several compelling reasons to specify a 0-10V ECM motor for your next project.
Most building automation systems have analog output points that can be configured for 0-10V. By selecting a 0-10V ECM motor, you can directly connect the motor to your BAS without expensive gateways, signal converters, or proprietary interfaces. This simplifies wiring, reduces points of failure, and lowers installation costs.
PSC motors cannot vary speed smoothly. Multi-tapped PSC motors offer only 3-5 discrete speeds. In contrast, a 0-10V ECM motor offers infinitely variable speed between the minimum and maximum setpoints. This allows for precise pressure control in duct static pressure applications and accurate temperature control in VAV terminals.
Because a 0-10V ECM motor runs only as fast as needed to satisfy the control signal, it never wastes energy running at full speed when partial speed would suffice. In variable torque applications (fans and blowers), reducing speed by 20% reduces power consumption by nearly 50% (affinity law). A 0-10V ECM motor capitalizes on this physics principle automatically.
When the control voltage changes abruptly, a 0-10V ECM motor does not jerk to a new speed. The motor's internal microprocessor ramps the speed at a controlled rate (typically programmable from 1 to 60 seconds). This eliminates water hammer in hydronic systems and prevents duct rattling in air systems.
The versatility of the 0-10V ECM motor makes it suitable for a wide range of HVAC and industrial applications.
VAV (Variable Air Volume) Boxes: The BAS sends a 0-10V signal based on zone temperature, and the motor opens the damper and adjusts fan speed simultaneously.
Duct Static Pressure Control: A pressure sensor in the duct generates a 0-10V signal. The 0-10V ECM motor speeds up or slows down to maintain setpoint, eliminating the need for inlet vanes or variable frequency drives (VFDs).
Cleanrooms and Laboratories: Precise pressure differentials require motors that respond instantly to small control signal changes. A 0-10V ECM motor delivers that responsiveness.
Fume Hoods: When the sash opens, the control system increases the 0-10V signal, and the exhaust fan motor speeds up to maintain face velocity.
Grow Rooms and Greenhouses: Environmental controllers output 0-10V to manage circulation fans, exhaust fans, and intake shutters.
Commercial Kitchen Exhaust: Demand-controlled ventilation systems use CO2 or temperature sensors to modulate exhaust fan speed via a 0-10V ECM motor.
Installing a 0-10V ECM motor is straightforward, but attention to detail is important. Trustec provides clear documentation with every motor, but here is a general overview.

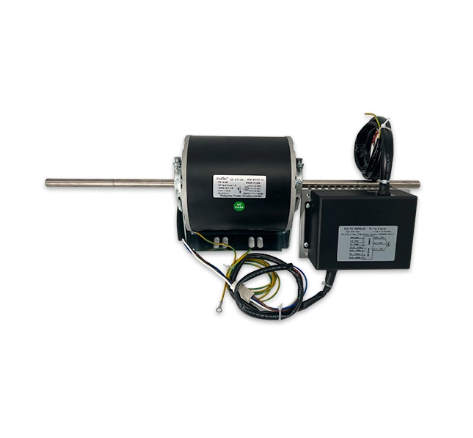

A typical 0-10V ECM motor from Trustec will have the following leads:
L1 and L2 (or L and N): Line voltage power (115V or 230V AC)
Ground: Green or green/yellow wire
COM (Common): The 0V reference for the control signal (often blue or white)
0-10V IN: The analog input signal (often yellow or orange)
Some motors also provide a 0-10V OUT (tachometer output) that sends a signal back to the BAS indicating actual motor speed. This closed-loop capability is a premium feature available on select Trustec 0-10V ECM motor models.
Most 0-10V ECM motor products allow you to configure:
Minimum voltage: Some applications need the motor to run at 2V minimum to prevent stalling.
Maximum voltage: You can limit the top speed by capping the 0-10V input at 8V or 9V.
Ramp times: Acceleration and deceleration rates.
Control mode: Torque control (for fans) or speed control (for pumps).
Trustec offers motors with DIP switches or a small programming tool to set these parameters.
A common question we hear at Trustec is: "Why buy a 0-10V ECM motor instead of adding a variable frequency drive (VFD) to my existing PSC motor?"
Here is the comparison:
Feature | 0-10V ECM Motor | VFD + PSC Motor |
|---|---|---|
Efficiency at partial load | 80-90% | 50-70% (PSC motors are inefficient at low speeds) |
Physical size | Compact (motor only) | Large (motor + VFD enclosure) |
Installation complexity | Simple (4-6 wires) | Complex (VFD programming, harmonics filtering) |
Cost for 1/2 HP | Low to moderate | High (VFD costs more than the motor) |
Audible noise | Very low (silent at low speeds) | High (PSC motors hum, VFDs add carrier frequency whine) |
For fractional horsepower applications (under 1 HP), a 0-10V ECM motor is almost always the better choice than a VFD.
Even reliable products can encounter issues. Here are common problems with a 0-10V ECM motor and how to solve them.
Problem: Motor does not respond to control signal.
Solution: Verify that the BAS is actually outputting 0-10V using a multimeter. Check the COM and 0-10V IN connections. Ensure the motor is set to "external control" mode (not "internal fixed speed").
Problem: Motor runs at full speed regardless of signal.
Solution: There may be a short between 0-10V IN and 10V. Alternatively, the COM wire may be disconnected, causing the motor to see 10V by default (pull-up configuration). Check all wiring.
Problem: Speed fluctuates without signal changes.
Solution: Electrical noise on the 0-10V line is likely. Use shielded cable for the control signal, ground the shield at one end only, and keep the control wires separate from line voltage wires.
Problem: Motor does not reach full speed.
Solution: Check that the BAS output reaches 10V at full demand. Some controllers output only 9V. Recalibrate the BAS or adjust the motor's max voltage setting.
Trustec provides full technical support for every 0-10V ECM motor we sell. If you encounter an issue, our engineers are just a phone call away.
While pure 0-10V control is mature and reliable, the next generation of Trustec 0-10V ECM motor products adds digital communication alongside the analog signal. This hybrid approach allows you to use simple 0-10V for speed control while also reading diagnostic data (run hours, fault codes, power consumption) over Modbus or BACnet. This gives you the best of both worlds: simple analog control with digital intelligence.
The 0-10V ECM motor is an essential tool for anyone who needs precise, efficient, and reliable speed control in HVAC and industrial applications. It bridges the gap between simple on/off motors and complex VFD systems, offering excellent performance at a reasonable cost.
At Trustec, we have extensive experience helping customers select, install, and optimize 0-10V ECM motor solutions. Whether you are retrofitting an existing air handler or designing a new OEM product, we can supply the right motor with the right configuration for your specific needs.
