In modern HVAC systems, few components work as quietly and consistently as the fan coil unit. Found in hotels, office buildings, hospitals, and residential high-rises, these units provide localized heating and cooling without the need for extensive ductwork. At the heart of every fan coil unit lies a critical component: the fan coil unit motor. This motor drives the blower that pushes air across the heating or cooling coil, delivering conditioned air directly to the occupied space.
Despite its importance, the fan coil unit motor is often overlooked—until it fails. A malfunctioning motor leads to uncomfortable rooms, guest complaints, energy waste, and expensive emergency repairs. Trustec has been a leading supplier and manufacturer of fan coil unit motors for decades, helping building owners and contractors find reliable, efficient, and quiet solutions. This guide covers everything you need to know about fan coil unit motors, from basic operation to advanced ECM upgrades.

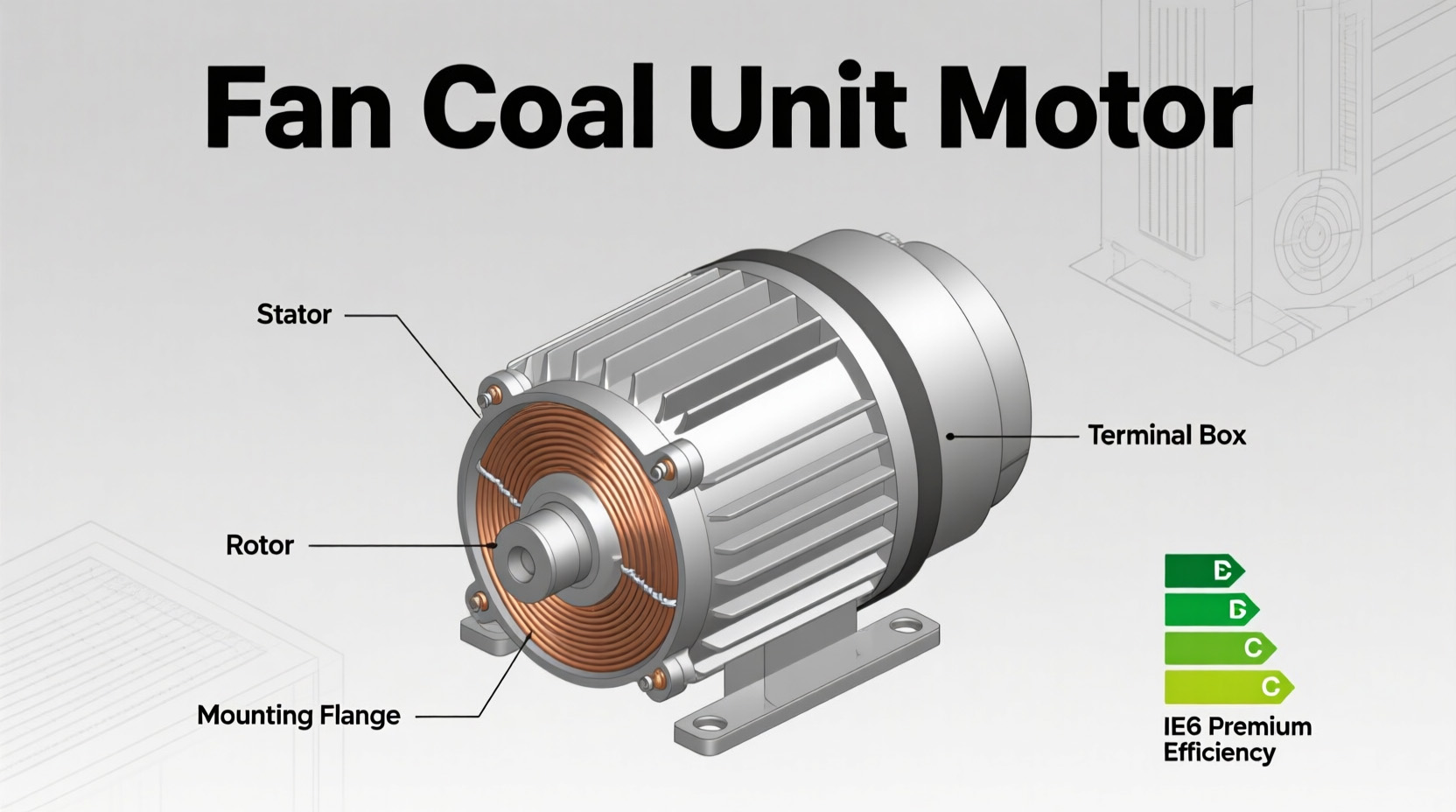

A fan coil unit motor is a specialized electric motor designed to power the blower assembly inside a fan coil unit (FCU). Fan coil units are terminal devices that condition air for a single room or zone. They consist of:
A heating or cooling coil (connected to a central boiler or chiller)
A blower (squirrel cage or forward-curved fan)
A fan coil unit motor that drives the blower
A filter and control board
Unlike large air handlers that serve entire buildings, fan coil units are compact, quiet, and designed for continuous or intermittent operation. The motor must be small enough to fit inside a ceiling plenum or under a window, yet powerful enough to overcome coil resistance and duct static pressure.
Common FCU configurations include:
2-pipe systems: Heating or cooling, but not both simultaneously
4-pipe systems: Separate heating and cooling coils for year-round comfort
Vertical units: Often located in closets or mechanical chases
Horizontal units: Installed above ceilings in commercial buildings
Cassette units: Flush-mounted in suspended ceilings
In every configuration, the fan coil unit motor determines airflow, noise level, and energy consumption.
Not all fan coil unit motors are the same. Understanding the differences helps you choose the right motor for your application.
Shaded pole motors are the simplest and least expensive option. They use a copper shading ring to create a rotating magnetic field.
Pros: Low cost, simple construction, no capacitor required
Cons: Very inefficient (15-30%), runs hot, limited speed control, short lifespan
Shaded pole motors are increasingly rare in new installations but may still be found in older fan coil units.
PSC motors represent the traditional standard for fan coil units. They use a run capacitor to improve efficiency and torque.
Pros: Affordable, reliable, multiple speed taps available (3-speed or 4-speed)
Cons: Efficiency of 40-60%, constant speed operation, cannot compensate for dirty filters
A standard PSC fan coil unit motor might be labeled with speeds such as Low, Medium-Low, Medium-High, and High. Occupants can manually select fan speed, but the motor consumes the same power regardless of static pressure.
ECM technology has transformed the fan coil unit market. An ECM fan coil unit motor uses a permanent magnet rotor and a microprocessor-controlled inverter.
Pros: 70-80% efficiency, variable speed, constant airflow or constant torque control, soft-starting, quiet operation
Cons: Higher upfront cost, requires compatible control signal (0-10VDC, PWM, or digital)
In a hotel or office building, an ECM fan coil unit motor can reduce fan energy consumption by 60-80% compared to a PSC motor. Given that fan coil units often run 24/7 (even at low speed for ventilation), the payback period is typically 6 to 12 months.
When selecting a replacement fan coil unit motor, you need accurate specifications. Here is what to look for:
Horsepower: Ranges from 1/30 HP to 1/2 HP for most fan coil units. Oversizing leads to noise and high velocity; undersizing leads to insufficient airflow and overheating.
Voltage: Common voltages include 115V (standard residential and light commercial) and 208-230V (commercial and high-rise buildings). Some large FCUs use 277V or 480V.
Frame Size: Fan coil unit motors often use smaller frames than standard HVAC motors. Common sizes include 42 frame, 48 frame, and proprietary OEM frames. Always measure mounting hole spacing and shaft height.
Speed: Multi-speed PSC motors typically offer 3 or 4 discrete speeds. ECM motors offer continuously variable speed from very low (200 RPM) to maximum (1100-1600 RPM).
Enclosure: Most fan coil unit motors are Open Drip-Proof (ODP) or Totally Enclosed Air-Over (TEAO). Because FCUs are typically indoors, ODP is acceptable in clean environments. For dusty or humid locations, choose TEAO.
Mounting: Fan coil unit motors use resilient rings, cradle mounts, or direct screw mounting. Measure the center-to-center distance of mounting holes.
Rotation: The motor must turn the blower in the correct direction. Some motors are reversible; others are dedicated CW or CCW viewed from the shaft end.
Recognizing early failure signs prevents emergency breakdowns. Replace the fan coil unit motor if you notice:
Unusual noise: Grinding (bearings), humming (start issues), or squealing (rubbing)
Slow starting or failure to start: Often a capacitor or winding problem
Intermittent operation: Motor runs for a while, stops, then restarts after cooling (thermal overload tripping)
Reduced airflow: Even with a clean filter, the room does not get warm or cool
Hot motor casing: Too hot to touch indicates electrical or mechanical issues
High energy bills: An inefficient or failing motor draws excessive current
Frequent service calls: Repeated capacitor or control board failures may trace back to the motor
If your building still uses PSC or shaded pole motors, upgrading to an ECM fan coil unit motor offers compelling advantages.
1. Energy Savings That Pay Back Quickly
A typical PSC fan coil unit motor running at medium speed consumes 80-120 watts. An ECM motor delivering the same airflow consumes 20-40 watts. Multiply by hundreds of units running 8,760 hours per year, and annual savings reach thousands of dollars.
2. Improved Occupant Comfort
ECM motors maintain constant airflow even as filters load up. A PSC motor slows down when resistance increases, reducing heating or cooling capacity. An ECM fan coil unit motor increases torque to keep air moving, ensuring consistent room temperature.
3. Quieter Operation
Soft-starting eliminates the loud "clunk" of a PSC motor starting. Low-speed operation (for continuous ventilation) is nearly silent—critical for hotel guest rooms and luxury apartments.
4. Better Humidity Control
By running continuously at very low speed, an ECM fan coil unit motor keeps air moving across the cooling coil, removing moisture even when there is no call for cooling. This prevents mold and improves indoor air quality.
5. Longer Equipment Life
Less heat, lower current draw, and soft-starts mean the motor windings and bearings last significantly longer. Many Trustec ECM fan coil unit motors are rated for 50,000+ hours of operation.
Retrofitting an existing fan coil unit with a modern fan coil unit motor is straightforward when you have the right parts.
Step 1: Identify the Original Motor Specifications
Remove the old motor and note the voltage, horsepower, frame size, shaft dimensions, and speed configuration. Take photos of the wiring.
Step 2: Choose a Compatible Replacement
If staying with PSC, select a motor with the same or slightly higher horsepower. If upgrading to ECM, select a model that accepts a 0-10VDC or PWM signal. Many aftermarket ECM motors include a simple interface that works with standard 3-speed fan switches.
Step 3: Prepare the Blower Wheel
Clean the blower wheel thoroughly. Remove the old motor shaft from the wheel hub. If the shaft is rusted, use penetrating oil and a puller tool.
Step 4: Mount the New Motor
Transfer any mounting brackets or resilient rings. Align the shaft with the blower wheel hub. Tighten the setscrew firmly but without stripping.
Step 5: Wire According to the Diagram
For PSC: Connect line, neutral, capacitor, and speed tap wires. For ECM: Provide continuous line voltage and connect the low-voltage control wires.
Step 6: Test and Balance
Run the unit and check for vibration. Adjust the blower wheel position on the shaft if needed. Measure amp draw and verify it does not exceed nameplate rating.
Even a high-quality fan coil unit motor will fail prematurely if installed incorrectly. Avoid these errors:
Using the wrong capacitor: For PSC motors, the microfarad rating must match. An incorrect capacitor reduces torque and overheats windings.
Overtightening the blower wheel setscrew: This distorts the hub or cracks it. Use a torque wrench or careful hand feel.
Forgetting to balance the blower wheel: An unbalanced wheel destroys motor bearings within weeks.
Blocking motor ventilation: Fan coil unit motors rely on airflow for cooling. Do not wrap them in insulation.
Mismatching voltage: A 208-230V motor running on 115V will not start. A 115V motor running on 230V burns out instantly.
Trustec has earned its reputation by delivering reliable, high-performance fan coil unit motors for commercial and residential applications. Here is what makes us different:
Wide inventory: We stock thousands of PSC and ECM fan coil unit motors covering major OEM brands.
Cross-reference support: Our team can match obsolete or hard-to-find part numbers to current equivalents.
Quality construction: Copper windings, sealed ball bearings, and Class F insulation as standard.
ECM retrofit kits: Complete kits include motor, control interface, and mounting hardware.
Global certifications: UL, CSA, CE, and RoHS compliant.
Technical support: Real engineers available by phone to help with selection and troubleshooting.
The fan coil unit motor is the workhorse of zone-level HVAC systems. When it fails, comfort suffers and energy bills rise. When it runs efficiently, occupants stay comfortable and operating costs remain low. Whether you are replacing a failed PSC motor or upgrading an entire building to ECM technology, choosing the right motor makes all the difference.
Trustec offers a full range of fan coil unit motors designed for long life, quiet operation, and maximum efficiency. Do not settle for cheap imports that fail after one season. Invest in a motor that delivers performance, reliability, and energy savings for years to come.
