In the world of HVAC, industrial air movement, and precision cooling, every component matters. But one part often dictates the entire system's efficiency: the motor. As industries shift away from inefficient PSC (Permanent Split Capacitor) motors, the demand for high-efficiency solutions has skyrocketed. Among the most sought-after sizes is the 48 frame ECM motor—a compact powerhouse designed for applications where space is limited but performance cannot be compromised.
At Trustec, we have spent years engineering and supplying motors that redefine reliability. But what exactly makes a 48 frame ECM motor superior to its predecessors? Why are engineers and facility managers making the switch? This guide provides a deep dive into the technical specifications, benefits, and real-world uses of this essential component.
To understand the value, let’s break down the terminology. "Frame size" refers to the mounting and dimensional standards set by NEMA (National Electrical Manufacturers Association). A 48 frame motor typically features a shaft height of 5.8 inches and a specific bolt circle pattern. These motors are smaller than the common 56 frame but larger than a 42 frame, making them ideal for medium-duty commercial and industrial equipment.

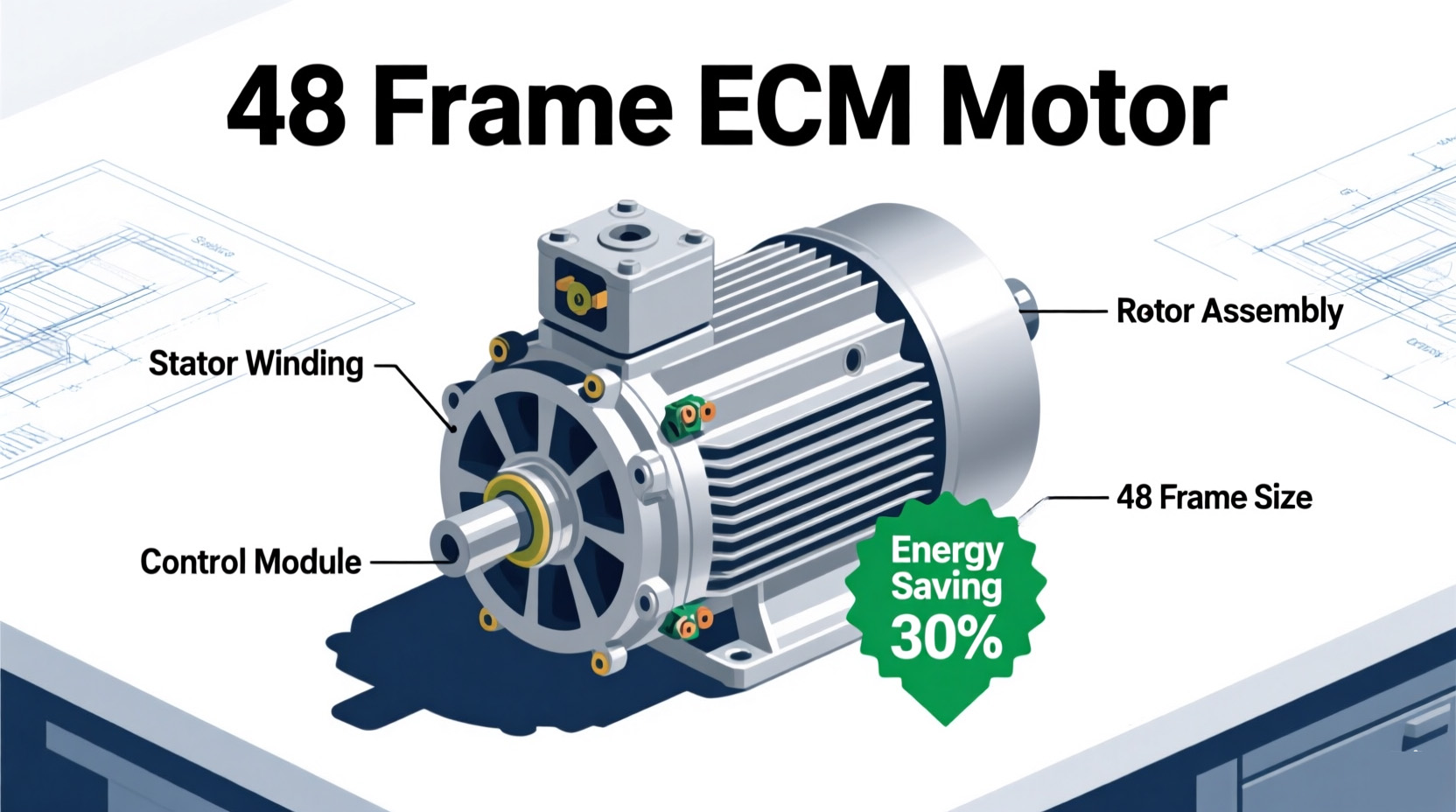

ECM stands for Electronically Commutated Motor. Unlike a traditional AC induction motor that runs at a constant speed, an ECM uses a built-in microprocessor and a permanent magnet rotor. The "48 frame ECM motor" combines the compact mounting of a 48-frame chassis with the intelligent control of an ECM. This means variable speed operation, constant airflow regulation, and dramatic energy savings.
While specifications vary by model, a standard high-quality 48 frame ECM motor, such as those supplied by Trustec, generally includes:
Horsepower Range: 1/3 HP to 1 HP
Voltage: 115V or 230V, single-phase
Speed Range: Programmable up to 1600 RPM
Enclosure: Totally Enclosed Air-Over (TEAO) or Open Drip-Proof (ODP), depending on application
Control Type: Constant torque or constant airflow
Bearings: Sealed, permanently lubricated ball bearings
The microprocessor inside a 48 frame ECM motor continuously monitors the motor’s load and adjusts power input. If a filter clogs or a damper closes, the motor increases torque to maintain the target airflow. This is impossible with a PSC motor, which would simply slow down.
The shift from PSC to ECM is not a trend; it is a necessity driven by energy codes (like DOE 2021) and ROI expectations. Here is how a 48 frame ECM motor outperforms traditional options.
A standard PSC motor operates at around 40-60% efficiency. A 48 frame ECM motor, in contrast, operates at 70-80% efficiency. In constant airflow mode, it can reduce energy consumption by up to 70% compared to a PSC motor running a similar load. For facilities running air handlers or exhaust fans 24/7, this translates to hundreds of dollars saved per motor annually.
Not all air movement needs are constant. A 48 frame ECM motor allows for multiple speed taps or fully programmable speed control. You can set specific speeds for heating, cooling, continuous fan, or defrost modes. This precision prevents temperature stratification and reduces noise.
Because an ECM motor responds to static pressure changes, it maintains consistent airflow even as filters load up. A 48 frame ECM motor in a residential or commercial air handler ensures that every room receives the same volume of conditioned air. This also keeps humidity levels under control, as the motor can run at lower continuous speeds for air scrubbing without overcooling.
Noise pollution is a critical concern in hospitals, hotels, and offices. The soft-start feature of a 48 frame ECM motor eliminates the loud hum and inrush current noise of traditional motors. During low-demand periods, it can spin silently at 200 RPM.
The electronics within an ECM generate less heat. Combined with soft starting (which eliminates mechanical stress on belts, bearings, and shafts), a 48 frame ECM motor lasts significantly longer than a PSC motor. Many Trustec motors in this class are rated for 50,000+ hours of continuous operation.
Given its size and power, the 48 frame ECM motor is the go-to choice for several key applications:
Commercial Air Handlers (AHUs): Ideal for rooftop units (RTUs) ranging from 2 to 5 tons. The compact 48 frame fits perfectly inside tight blower compartments.
Condenser Fans for Refrigeration: Walk-in coolers and freezers benefit from the low-speed capability of an ECM motor, which maintains head pressure during cold ambient conditions.
Packaged HVAC Systems: Heat pumps and gas/electric packaged units frequently use a 48 frame ECM motor as the indoor blower motor or outdoor condenser fan motor.
Hydronic Fan Coils: In boiler or chiller systems, these motors provide quiet, efficient air movement over hot or cold water coils.
Laboratory Fume Hoods: Variable airflow control is a safety requirement, and the 48 frame ECM motor delivers precise exhaust control.
When sourcing a 48 frame ECM motor, compatibility and durability are paramount. Trustec has built a reputation for providing motors that meet or exceed OEM specifications. Our 48 frame ECM motors feature:
Universal mounting brackets to replace multiple legacy brands.
Pre-programmed profiles for common air handlers and fan coils, reducing setup time.
Rugged corrosion-resistant coatings for units exposed to moisture or chemicals.
5-year warranty on the motor and controller, backed by technical support.
We understand that a failed motor means downtime. That is why every Trustec 48 frame ECM motor undergoes rigorous testing before leaving our facility.
Converting an existing system? The process is straightforward. A standard PSC motor has three wires (Line, Neutral, Capacitor). A 48 frame ECM motor requires line voltage and a low-voltage control signal (0-10VDC or 24VAC PWM). Many retrofit kits include a simple interface module. Steps include:
Verify Frame Size: Ensure the existing mount uses a 48 frame footprint.
Check Voltage: Match the motor voltage (115/230V) to the supply.
Configure the Control Signal: Most modern thermostats or control boards provide a "G" fan signal. For constant torque applications, you can use a simple speed controller.
Mount and Wire: Secure the motor, connect high voltage, and run the low-voltage control wires.
Test Speeds: Program the desired airflow parameters.
The result? Immediate energy savings and quieter operation.
Myth 1: "ECM motors are too expensive."
Reality: The upfront cost is higher, but the payback period is typically 6 to 18 months, thanks to energy savings. After that, the motor is effectively free.
Myth 2: "They are unreliable due to electronics."
Reality: Modern potting and thermal protection have made ECM electronics extremely robust. High-quality units like Trustec’s are rated for harsh environments.
Myth 3: "A 48 frame ECM motor won't fit an older unit."
Reality: With universal mounting kits and adjustable brackets, a 48 frame motor can often replace 42 frame or even some belt-drive setups.
As building codes become stricter (ASHRAE 90.1, California Title 24), the 48 frame ECM motor is no longer a luxury—it is a standard requirement. New construction projects specify ECMs exclusively, and retrofits are accelerating.
Furthermore, the integration of IoT and building automation systems (BAS) relies on ECM motors. A 48 frame ECM motor with Modbus or BACnet compatibility (available from advanced suppliers) allows facility managers to monitor real-time power consumption, RPM, and runtime hours from a central dashboard.
The 48 frame ECM motor represents the perfect balance of compact sizing and advanced control. Whether you are an HVAC contractor retrofitting a rooftop unit, a facility manager cutting operating costs, or an engineer designing a new air handler, this motor delivers reliability, efficiency, and performance.
Choosing the right brand ensures you get genuine specifications, robust construction, and long-term support. For those seeking a proven solution, Trustec offers a range of 48 frame ECM motors engineered to meet the demands of modern air movement. Upgrade your system today and experience the difference that intelligent, efficient motor technology can make.
