The Ultimate Guide to Choosing the Right HVAC Replacement Motor for Your System
When your HVAC system starts making unusual humming noises, tripping the breaker, or failing to maintain the desired temperature, the culprit is often a failing blower or condenser fan motor. For facility managers, maintenance technicians, and property owners, finding the right HVAC replacement motor is not just about restoring comfort—it is about ensuring energy efficiency, reducing downtime, and extending the life of the entire unit.
At Trustec, we understand the frustration of sifting through incompatible parts and vague specifications. With years of expertise in the electromechanical industry, we have compiled this comprehensive guide to help you select, install, and maintain the perfect HVAC replacement motor for your specific application.
Before diving into the selection process, it is crucial to understand why these motors fail. The most common causes include:
Bearing Wear: Over time, the lubricant in sealed bearings degrades, causing friction, noise, and eventually seizure.
Insulation Breakdown: Excessive heat or voltage spikes break down the winding insulation, leading to short circuits.
Capacitor Failure: Often misdiagnosed as a motor failure, a bad start or run capacitor can prevent the motor from turning.
Contamination: Dust, grease, and moisture are the enemies of any electric motor, especially in rooftop HVAC units exposed to the elements.
If your diagnosis points definitively to the motor, sourcing a high-quality HVAC replacement motor becomes your top priority.
One of the first decisions you will face is whether to buy an Original Equipment Manufacturer (OEM) motor or a generic aftermarket model.
OEM Motors: These are plug-and-play. The mounting brackets, shaft length, and wiring colors match exactly. However, they often come with a premium price tag and longer lead times.
Generic/Universal Motors: This is where Trustec excels. A high-quality generic HVAC replacement motor offers greater flexibility. Many universal motors come with multiple mounting studs, reversible rotation, and dual voltage capabilities (115/230V). The key is to ensure the generic motor meets or exceeds the OEM’s electrical and mechanical ratings.
To avoid buying the wrong part, you must match the following five specifications precisely:
1. Horsepower (HP)
Never guess the horsepower. Using a motor with lower HP will cause overheating and premature failure. Using a motor with higher HP may trip breakers or damage the blower wheel. Always match the nameplate rating.
2. RPM (Revolutions Per Minute)
Most residential HVAC systems use 1075 RPM for condensers and blowers, while commercial units may use 1625 or 1140 RPM. An incorrect RPM changes the airflow, potentially freezing evaporator coils or tripping high-pressure limits.
3. Frame Size
The frame size dictates the mounting height and bolt circle diameter. For example, a "48 frame" motor has a specific shaft height and face mounting pattern. Always measure the distance from the base to the center of the shaft.
4. Shaft Diameter and Length
Standard shaft diameters include 1/2", 5/8", and 3/4". If the new HVAC replacement motor has a longer shaft than the original, you may need a shaft spacer. If it is shorter, the fan blade may not secure properly.
5. Rotation (CW vs. CCW)
Stand facing the shaft end (the end where the blade attaches). Determine if your motor turns Clockwise (CW) or Counter-Clockwise (CCW). Many modern universal motors, like those from Trustec, feature reversible leads, allowing you to change rotation by swapping wire connections.
Single-Phase (PSC): Common in residential and light commercial units (up to 5 tons). These require a run capacitor.
Three-Phase: Found in industrial rooftop units and large commercial package units. These are more efficient and durable but require a specific phase sequence.
If your building has three-phase power, using a single-phase HVAC replacement motor will destroy the motor instantly. Verify your power supply before purchasing.

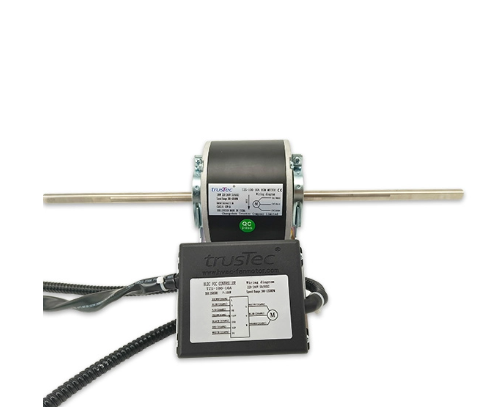

While traditional PSC motors are still widely used as replacements, ECM technology is becoming the gold standard. An ECM is essentially a DC motor with an integrated controller.
Pros of switching to an ECM replacement motor:
Energy savings: ECMs use 60-75% less electricity than PSC motors.
Constant airflow: They adjust torque to maintain consistent CFM against dirty filters or duct restrictions.
Soft start: No sudden torque spikes, reducing stress on bearings and belts.
Cons:
Higher initial cost: An ECM HVAC replacement motor costs significantly more upfront.
Sensitivity: The control module is vulnerable to power surges and moisture.
If you are replacing a motor in a high-use commercial environment, the ROI on an ECM is usually under one year.
Once your Trustec replacement motor arrives, proper installation is critical. Follow these professional tips:
Disconnect all power. Lock out the disconnect to ensure the unit cannot turn on while you work.
Replace the capacitor. Never install a new motor with an old capacitor. A weak capacitor will cause hard starting and shorten the life of your new motor. Match the microfarad (µF) rating exactly.
Check the fan blade. A bent or unbalanced fan blade will destroy new bearings within weeks. Spin the blade on the shaft before tightening—it should run true with no wobble.
Use weatherproof connections. If the motor is outdoors, use silicone-filled wire nuts or heat shrink tubing to prevent corrosion.
Verify rotation before final assembly. Briefly energize the motor to ensure the blade pulls air in the correct direction (up for condensers, forward for blowers).
When downtime costs you money, you cannot afford to gamble on substandard parts. Trustec provides high-efficiency HVAC replacement motors engineered for drop-in compatibility across major brands including Carrier, Trane, Lennox, York, and Rheem.
We offer:
Rigorous testing: Every motor is tested for dielectric strength, winding resistance, and thermal protection.
Universal fit: Our mounting adaptors and multi-horsepower taps reduce inventory needs.
Global support: Whether you are in North America, Europe, or Asia, our logistics team ensures fast shipping.
Selecting the correct HVAC replacement motor requires careful attention to horsepower, RPM, frame size, and rotation. Whether you choose a traditional PSC motor for its simplicity or an ECM for its efficiency, always prioritize quality components from a trusted supplier.
Do not let a failed motor bring your climate control to a halt. For expert advice or to place an order, reach out to the Trustec team. Call us at +86-13961191626 or email marketing@trustec.cn to discuss your specific HVAC motor requirements. Keep your system running reliably with Trustec power.
