Introduction

Behind every efficient HVAC system, every quiet furnace, and every precisely controlled air handler lies a component that rarely receives the attention it deserves: the Electronically Commutated Motor (ECM). While engineers and contractors discuss efficiency ratings, static pressure, and airflow volumes, the unsung foundation of modern air movement is the manufacturing facility that produces these sophisticated motors. An ECM blower motor factory is not a simple assembly line—it is a precision environment where electrical engineering, material science, and quality control converge to create motors that must run quietly for a decade or more, often in extreme temperatures and demanding conditions.

Understanding what happens inside an ECM blower motor factory reveals why some motors outperform others, why certain brands command premium prices, and why manufacturing discipline ultimately determines whether a motor fails after two years or continues running reliably past its tenth winter.

The Anatomy of an ECM Blower Motor

Before exploring factory operations, it helps to understand what makes an ECM different from traditional motors. An ECM is a brushless DC motor that integrates an electronic controller directly onto the motor housing. Unlike conventional Permanent Split Capacitor (PSC) motors, which rely on simple AC induction principles and run at essentially fixed speeds, an ECM uses a permanent-magnet rotor and an onboard microprocessor to precisely control current flow through its stator windings.

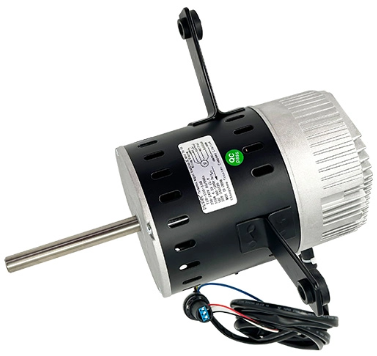

The motor consists of several critical subassemblies: the stator with its precisely wound copper coils, the rotor containing high-grade neodymium or ferrite magnets, the electronic controller board populated with microcontrollers, power transistors (MOSFETs or IGBTs), capacitors, and sensors, the bearing system (usually sealed ball bearings), the aluminum or steel housing, and various mounting components and connectors.

Each of these elements must be manufactured to tight tolerances and assembled with meticulous care. A factory that cuts corners on magnet quality, uses underspecified bearings, or fails to protect controller boards from moisture and vibration will produce motors that fail prematurely—often just outside the warranty period, damaging the brand reputation of both the motor manufacturer and the equipment builder.

Inside a Modern ECM Blower Motor Factory

A world-class ECM blower motor factory operates more like a clean electronics facility than a traditional motor shop. Because ECM controllers are sensitive to dust, static electricity, and humidity, production environments typically maintain controlled air quality, temperature, and humidity levels. Floors are anti-static, and workers handling controller boards wear grounded wrist straps.

Stator Winding and Insulation

The stator forms the stationary electromagnetic core of the motor. Copper magnet wire is wound around laminated steel teeth according to precise patterns that determine the motor’s electrical characteristics. Automated winding machines place each turn with consistent tension and layering, then terminate the wire ends to connection pins or terminals. After winding, the stator undergoes a dip-and-bake process where insulating varnish is applied, then cured in ovens to lock windings in place and protect against moisture, contaminants, and electrical breakdown. Factories with high quality standards perform hipot (dielectric strength) testing and resistance measurements on every stator before assembly.

Rotor Assembly and Magnetization

The rotor carries permanent magnets that interact with the stator’s magnetic field. Magnet quality directly affects torque, efficiency, and demagnetization resistance. Leading factories source sintered neodymium-iron-boron (NdFeB) magnets from reputable suppliers and verify magnetic flux before assembly. Rotors are balanced dynamically to minimize vibration—a process where the spinning rotor is measured, and tiny amounts of material are added or removed to achieve smooth rotation. Poor balance leads to bearing wear, noise, and reduced motor life.

Controller Board Manufacturing

The electronic controller is the brain of the ECM. It converts incoming AC power to DC, reads rotor position via Hall sensors or back-EMF detection, and switches stator currents at high frequencies using PWM (pulse-width modulation). Controller boards are typically populated using surface-mount technology (SMT) lines, followed by through-hole component insertion for larger parts like capacitors and connectors. After soldering and cleaning, boards receive conformal coating—a thin polymer layer that protects circuits from humidity, dust, and chemical exposure. Factories that skip conformal coating or apply it inconsistently produce motors vulnerable to field failures in damp environments like basements or outdoor units.

Final Assembly and Integration

Final assembly brings stator, rotor, controller, bearings, and housing together. Precision alignment is critical; even slight misalignment increases friction, noise, and energy consumption. Bearings must be seated correctly and lubricated with high-temperature grease. The controller mounts to the motor end cover or stator, with thermal interface materials used to conduct heat away from power transistors. Wiring harnesses and connectors are attached according to customer specifications.

End-of-Line Testing

The most important step in any ECM blower motor factory is end-of-line (EOL) testing. Every single motor should be tested before it leaves the factory. Comprehensive EOL testing includes:

• Electrical safety: Hipot and insulation resistance tests to ensure no leakage current or breakdown paths exist.

• No-load and loaded performance: Motor is run at specified voltages and speeds; current draw, power consumption, speed accuracy, and torque output are measured against limits.

• Vibration analysis: Accelerometers detect abnormal vibration patterns that indicate imbalance, bearing defects, or assembly errors.

• Sound testing: In quiet rooms or using microphones, motors are checked for unusual noises such as bearing rumble, magnet tick, or controller whine.

• Communication verification: For motors that receive external speed commands (PWM, 0–10V, serial), the factory verifies proper response to control signals.

Factories that perform 100 percent EOL testing catch defects before shipment, dramatically reducing field failure rates. Factories that rely only on batch sampling inevitably ship defective units, and those defects become warranty claims and angry customers.

Quality Management Systems and Certifications

A serious ECM blower motor factory operates under documented quality management systems. ISO 9001 certification is the baseline, indicating consistent processes and continuous improvement. ISO 14001 shows environmental responsibility. For products sold into North America, UL recognition is essential—UL engineers audit the factory’s production line and testing procedures to ensure every motor meets safety standards. CE marking requires independent verification of compliance with European directives.

Beyond certifications, leading factories maintain traceability systems that link every motor to its production date, shift, test results, and component lot codes. When a field failure occurs, traceability allows rapid root-cause analysis and targeted corrective actions rather than guessing at the problem.

Capacity, Lead Times, and Supply Chain Resilience

The global motor industry learned painful lessons during supply chain disruptions of recent years. Factories that depend on single sources for microcontrollers, magnets, or specialized bearings faced shutdowns. Resilient factories maintain approved alternate suppliers, hold strategic buffer stocks of long-lead components, and often operate multiple production lines or shifts to flex capacity.

For customers, factory capacity matters directly. An ECM blower motor factory running near 100 percent utilization will quote long lead times and struggle with rush orders. A factory with spare capacity and flexible scheduling can accommodate urgent replacement orders and ramp production for new product launches. The best factories balance high utilization with planned capacity buffers—typically 15–20 percent—to absorb demand spikes without degrading delivery performance.

Cost Drivers in ECM Blower Motor Manufacturing

Understanding factory economics helps buyers make informed decisions. The largest cost components in an ECM are:

• Rare-earth magnets: Neodymium prices fluctuate with global supply and demand, particularly given China’s dominance in rare-earth refining.

• Copper: Stator winding copper is a commodity market, and motor efficiency targets often require heavier copper fill.

• Electronics: Microcontrollers, power modules, and other semiconductor content face periodic shortages and pricing volatility.

• Steel and aluminum: Housing and lamination materials add weight and cost.

• Labor and overhead: Assembly, testing, and quality control require skilled workers and calibrated equipment.

Factories that invest in automation—robotic winding, automated assembly cells, inline testing—can reduce labor costs and improve consistency, but automation requires high volume to justify capital expenditure. For lower volumes, manual assembly with rigorous training and inspection can still produce excellent quality, though at higher per-unit labor cost.

The Shift Toward Smarter, Greener Factories

Sustainability is becoming a competitive differentiator. Leading ECM blower motor factories are reducing energy use through efficient lighting, compressed air systems, and motor test stands that recover braking energy. Solar panels on factory roofs offset grid electricity. Waste copper, steel, and plastic are segregated and recycled. Conformal coating solvents are captured and treated rather than vented.

Some factories are also adopting Industry 4.0 principles—sensors on production equipment feed real-time data into analytics systems that predict maintenance needs, optimize changeovers, and flag quality deviations before they produce bad parts. These smart factories achieve higher overall equipment effectiveness (OEE) and lower defect rates than traditional plants.

Conclusion

An ECM blower motor factory is far more than a source of components. It is the crucible where design specifications become physical products, where quality is built or lost, and where the reliability of countless HVAC systems is determined. The best factories combine advanced automation, rigorous 100 percent testing, robust quality systems, and a culture of continuous improvement. They invest in traceability, supply chain resilience, and sustainable operations. For OEMs, distributors, and contractors, understanding what happens inside these factories provides the insight needed to choose partners wisely—because the motor that fails in the field always carries the reputation of both the factory that made it and the brand that specified it. Choose a factory that treats every motor as if their own name were on the label.
