ECM Blower Motor Manufacturer

Introduction

The global HVAC industry is undergoing a major transformation, driven by stricter energy regulations, rising electricity costs, and growing demand for quieter, more precise climate control systems. At the heart of this evolution lies the Electronically Commutated Motor (ECM)—a technology that has redefined what is possible in air movement applications. As an ECM blower motor manufacturer, understanding the full spectrum of this technology’s capabilities, applications, and selection criteria is essential for delivering solutions that meet modern performance standards.

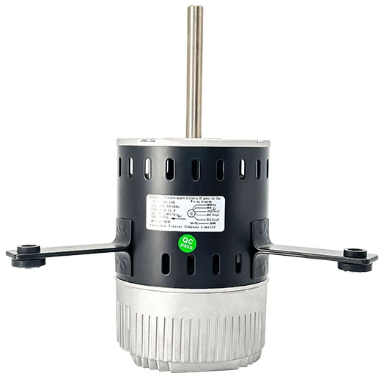

What Is an ECM Blower Motor?

An Electronically Commutated Motor (ECM) is a brushless DC motor that combines a permanent-magnet rotor with an integrated electronic controller. Unlike traditional AC induction motors that rely on brushes or mechanical commutation, an ECM uses electronic switching to control current flow through its stator windings. This design eliminates physical contact between moving parts, preventing friction and wear while enabling smoother operation, precise control, and significantly higher energy efficiency.

The integrated electronic controller rectifies incoming AC power to DC, reads rotor position via Hall sensors or back-EMF detection, and switches stator windings using MOSFET or IGBT transistors with Pulse-Width Modulation (PWM). This intelligent control allows the motor to deliver only the power required at any given load, minimizing heat buildup and reducing overall energy consumption.

Key Advantages Over Traditional PSC Motors

When comparing ECM blower motors to conventional Permanent Split Capacitor (PSC) motors, the performance differences are substantial. PSC motor technology is over a century old, and while it served the industry well for decades, its limitations have become increasingly apparent.

Efficiency. Installed PSC motor efficiencies typically range from only 12 to 45 percent, particularly when operating at reduced speeds. ECM motors, by contrast, maintain a high efficiency of 65 to 72 percent across all operating speeds. Under optimal conditions, some ECM designs achieve efficiency ratings exceeding 90 percent.

Lifespan. The brushless design of ECM motors eliminates mechanical friction and wear, extending operational life. ECM blower motors typically provide an average of 90,000 hours of operation, compared to approximately 50,000 hours for a typical PSC motor. This translates into roughly ten years of reliable service for a typical fan coil application versus eight years for a PSC-equipped unit.

Operating Temperature. PSC motors run hot—typically between 90 and 150 degrees Fahrenheit—requiring substantial energy to offset heat gain within HVAC systems. ECM motors operate at essentially ambient temperatures, dramatically reducing this parasitic load.

Noise and Vibration. Advanced ECM designs incorporate soft starts and slewed speed ramps programmed into the motor controller, eliminating the mechanical stress and noise transmitted during traditional motor startup. ECM blower motors also operate with significantly reduced vibration, enhancing user comfort and system longevity.

Speed Control. While PSC motors use 100 percent of their power when activated and offer limited speed options, ECMs provide a full range of running speeds without sacrificing efficiency. This variable-speed capability enables precise airflow regulation, improved temperature and humidity control, and quieter operation across all operating conditions.

The Growing ECM Blower Motor Market

The global market for ECM technology is expanding rapidly. The HVAC Electronically Commutated Motor market was valued at US$10.5 billion in 2024 and is projected to reach US$18.2 billion by 2033, registering a compound annual growth rate (CAGR) of 6.5 percent from 2026 to 2033. This growth is fueled by increasing demand for energy-efficient ventilation systems, particularly in commercial and industrial buildings, and the rising adoption of electronically commutated motors for their superior performance, energy savings, and quiet operation.

Government regulations have accelerated this transition. In July 2019, the Fan Energy Rating (FER) regulation took effect in the United States, focusing on the electrical efficiency of fossil fuel appliances and effectively phasing out PSC motors from new OEM equipment. While PSC motors remain the largest segment in the field today, they are expected to gradually disappear from new installations over the next 10 to 15 years.

Applications Across Residential and Commercial HVAC

ECM blower motors are designed specifically for air handling and HVAC blower applications, providing variable-speed airflow control with high efficiency and low noise. Their versatility spans a wide range of use cases:

Residential Systems. Modern furnaces, air handlers, and packaged units increasingly rely on ECM blower motors to achieve high SEER ratings and meet energy codes. ECM technology enables homeowners to save between US$100 and US$300 annually in energy costs compared to PSC-equipped systems, with payback periods often under three to five years despite higher initial costs.

Commercial Applications. Commercial fan coil units, water source heat pumps, packaged vertical units, and rooftop systems all benefit from ECM technology. The availability of 277V ECM versions has opened up the commercial market, allowing these motors to be used in applications previously restricted to traditional AC induction motors.

Retrofit and Replacement. The aftermarket presents enormous opportunities for ECM blower motors. Drop-in replacement motors that require no wiring changes are now available, enabling technicians to upgrade aging PSC-equipped air handlers and furnaces with high-efficiency ECM technology. These retrofit solutions deliver up to 25 percent energy savings, quieter operation, and improved airflow without full system replacement.

What to Look for in an ECM Blower Motor Manufacturer

Selecting the right ECM blower motor manufacturer requires evaluating multiple dimensions beyond product specifications and price. A structured approach should assess technical capability, production agility, quality assurance, and operational reliability.

Technical Alignment. The manufacturer must demonstrate the ability to meet precise electrical, mechanical, and environmental requirements. Key verification points include voltage range (208–230V AC or 24V DC), power output, speed control interface, mounting dimensions, insulation class (Class F is standard), IP rating (IP54 or IP55 recommended for dust-prone environments), and thermal protection.

Customization Capability. OEM partnerships often require engineering collaboration on shaft diameter, RPM, mounting type, power rating, environmental protection, and branding elements such as logo placement and packaging labels. The best ECM blower motor manufacturers provide full design input and responsive engineering documentation, including CAD drawings and performance curves within short timeframes.

Quality Assurance and Certifications. Established quality control measures, rigorous testing procedures, and recognized certifications such as ISO, CE, UL, and RoHS are essential indicators of manufacturing discipline. Manufacturers with in-house winding capabilities, automated assembly lines, and end-of-line performance testing consistently deliver higher-quality products.

Production Flexibility. MOQ requirements vary significantly based on application and customization level. While industrial-grade motors often require 50 to 500 pieces, some manufacturers accommodate small-batch trials essential for research and development or niche market applications.

Operational Reliability. Key metrics to evaluate include on-time delivery rates above 98 percent, response times under four hours, and reorder rates below 20 percent. Manufacturers with established export experience and documented quality processes typically demonstrate greater operational consistency.

The Future of ECM Blower Motor Technology

Several emerging trends are shaping the next generation of ECM blower motors. The adoption of smart, IoT-enabled fan systems with predictive maintenance features is creating innovative applications, particularly in sectors like data centers requiring specialized high-performance cooling solutions. Demand for quiet, aerodynamically optimized fan designs is rising, along with the use of advanced materials such as lightweight composites and corrosion-resistant alloys.

PCB stator motor technology represents another frontier. ECM blower motors utilizing PCB stator designs have demonstrated overall system efficiency improvements surpassing target specifications, CFM/W increases reaching up to 145 percent, length reductions of over five centimeters, and noise reductions of 27 decibels. These compact, lightweight, and sustainable designs promise shorter assembly and servicing times while delivering superior performance.

Sustainability is also becoming a key focus. ECM blower motors support global decarbonization by bringing high-efficiency technology to HVAC systems, lowering energy use, improving comfort, and cutting carbon emissions without full-system replacement. As building professionals continue increasing investment in energy-efficient ventilation systems—approximately 62 percent reported increased investment in ventilation and IAQ solutions following the COVID-19 pandemic—the role of ECM technology will only expand.

Conclusion

The shift from traditional PSC motors to ECM blower motors represents one of the most significant advancements in HVAC technology in decades. With efficiency advantages of 30 to 50 percent or more, operational lifespans nearly double those of conventional motors, variable-speed precision, and dramatically reduced noise levels, ECM technology has become the standard for modern air handling applications.

For OEMs, contractors, and system designers seeking reliable, high-performance air movement solutions, partnering with an experienced ECM blower motor manufacturer is essential. As energy regulations tighten, electricity costs rise, and expectations for indoor comfort and air quality continue to increase, ECM blower motors will remain at the forefront of HVAC innovation—delivering measurable efficiency, proven reliability, and lasting value.
