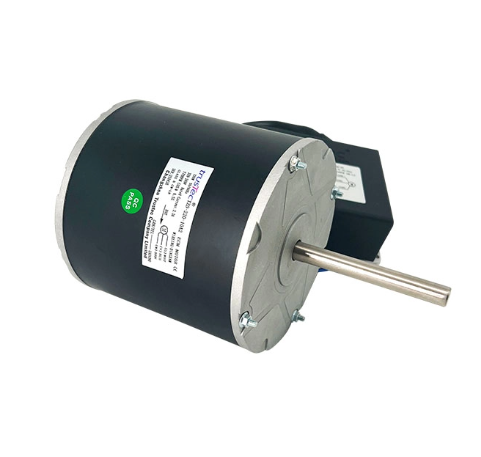

Behind every high-performance HVAC system lies a critical component that often goes unnoticed until it fails: the condenser fan motor. As the backbone of heat rejection in air conditioning and refrigeration equipment, this motor must deliver consistent airflow, withstand harsh outdoor conditions, and operate efficiently for years. When that motor incorporates Electronically Commutated technology, the benefits multiply—lower energy consumption, quieter operation, and smarter performance. But the true differentiator is not just the motor itself; it is the ECM condenser fan motor factory that designs, manufactures, and tests every unit before it reaches the market. Trustec operates such a factory, combining vertical integration, advanced production lines, and a relentless focus on quality to deliver ECM motors that customers can depend on.
A factory dedicated to ECM condenser fan motors is not an assembly line for simple commodity products. It is a precision manufacturing environment where electrical engineering, materials science, and quality control converge. Every ECM motor contains three fundamental components: a permanent magnet rotor, a stator with concentrated windings, and an integrated electronic control board that converts incoming AC power to DC and precisely regulates current to the windings.
Producing these components to exacting tolerances requires specialized equipment and skilled operators. At Trustec’s factory, the manufacturing process begins with raw material selection—magnet wire, steel laminations, rare-earth magnets, bearings, and electronic components. Each batch of materials is inspected upon arrival to ensure it meets specifications before entering production.
The stator winding process is particularly critical. ECM stators require precise winding patterns to achieve the desired magnetic field characteristics. Trustec uses automated winding machines that maintain consistent tension and layer alignment, reducing the risk of shorts or insulation failures. After winding, stators undergo impregnation with high-temperature varnish to lock windings in place and protect against moisture and vibration.
Meanwhile, the rotor assembly incorporates high-energy neodymium magnets arranged to maximize torque density while minimizing cogging. Bearings are selected based on application requirements—sleeve bearings for cost-sensitive applications and ball bearings for heavy-duty or high-mounting configurations. Every rotor is dynamically balanced to reduce vibration and acoustic noise.
The electronic control board represents the intelligence of the ECM motor. Trustec designs and manufactures its own control boards, programming them with proprietary algorithms that enable features such as soft start, constant torque, constant airflow, and fault protection. Each board undergoes automated optical inspection and functional testing before being integrated into the motor assembly.
Many motor suppliers outsource critical processes such as control board manufacturing, stator winding, or final assembly to third-party vendors. This fragmented approach introduces variability, extends lead times, and complicates quality assurance. Trustec takes a different path. The company operates a vertically integrated ECM condenser fan motor factory where every major production step occurs under one roof.
Vertical integration delivers tangible benefits to customers. First, quality control is continuous rather than sampled. Trustec technicians monitor production in real time, identifying and correcting deviations before they become defects. Second, lead times shorten because there is no waiting for external suppliers to deliver subassemblies. Third, cost efficiency improves—savings from streamlined production are passed on to customers without compromising component quality.
Trustec’s factory encompasses injection molding for fan blades and housings, metal stamping for motor frames, PCB assembly for control electronics, winding and insulation processing, final assembly lines, and comprehensive testing stations. This end-to-end capability means Trustec can respond quickly to custom requests, whether for specialized shaft lengths, unique mounting flanges, or specific voltage configurations.
An ECM condenser fan motor factory is only as good as its commitment to quality assurance. Trustec holds ISO 9001 certification for its quality management system, ensuring that every process from incoming inspection to final shipping follows documented, audited procedures. Product-specific certifications include UL for the North American market, along with CE, UKCA, CCC, ROSH, and SABER for other regions. These marks are not merely stickers on a box—they represent successful completion of rigorous safety and performance evaluations.
Testing begins during production and intensifies at final assembly. Every ECM motor leaving Trustec’s factory undergoes:
Dielectric strength testing to verify insulation integrity
Winding resistance measurement to detect shorted or open circuits
No-load current and speed verification
Load testing at rated torque and voltage
Vibration and acoustic noise measurement
Electronic control function validation, including soft start and protection features
For customer-specific orders, Trustec can perform additional tests such as thermal cycling, humidity exposure, and extended endurance runs. Test records are retained for traceability, so any motor can be linked back to its production batch and test data.
Seasonal demand peaks in the HVAC industry create challenges for manufacturers and OEMs alike. A factory that cannot ramp production quickly during peak seasons forces customers to carry excessive inventory or face shortages. Trustec maintains flexible production lines capable of scaling output from thousands to tens of thousands of units per month depending on demand.
The factory’s location and logistics network support efficient distribution to markets worldwide. As a 100 percent export-oriented manufacturer, Trustec has experience shipping motors to North America, Europe, the Middle East, Southeast Asia, and other regions. Standard lead times are communicated clearly, and expedited options are available for urgent requirements.
Raw material supply chains are managed carefully to avoid disruptions. Trustec maintains strategic inventory levels of critical components—magnets, bearings, ICs, and power semiconductors—while qualifying secondary sources wherever possible. This proactive approach has allowed Trustec to maintain deliveries even during periods of global supply chain volatility.
No two HVAC systems are exactly alike. A condenser fan motor that performs perfectly in a residential split system may be entirely unsuitable for a rooftop unit or a refrigeration condensing unit. Trustec’s factory employs an engineering team that works directly with OEM customers to develop application-specific solutions.
Customization options include:
Frame diameter from 3.3 inches to 6.3 inches
Output power from 8 watts to 5 kilowatts
Voltage options including 115V, 230V, 277V, 400V, and 460V
Speed control interfaces: PWM, 0-10V, or proprietary protocols
Mounting configurations: stud mount, bracket mount, or custom flanges
Shaft length and diameter variations
Environmental protection levels: open drip-proof, totally enclosed, or sealed against moisture and dust
The engineering collaboration typically begins with a requirements review, followed by prototype development, performance testing, and validation. Once approved, Trustec transitions the design to mass production using dedicated tooling and test fixtures. This structured approach reduces risk and accelerates time to market for new HVAC products.
The ECM condenser fan motor factory is where advanced motor technology meets real-world reliability. For OEMs, contractors, and distributors, the choice of factory partner directly impacts product performance, warranty costs, and customer satisfaction. Trustec operates a modern, vertically integrated factory with ISO 9001-certified processes, global product certifications, and a proven track record of delivering millions of motors to customers around the world.
From raw materials to finished, tested motors, every step at Trustec is focused on one goal: producing ECM condenser fan motors that exceed expectations. Whether you need standard replacement motors or custom-engineered solutions for a new product line, Trustec’s factory is equipped to deliver. Contact Trustec today to discuss your requirements and experience the difference that dedicated manufacturing makes.
