Fan Coil Unit Motor Guide: Selection, Troubleshooting, and Efficiency
In the world of HVAC systems, the fan coil unit (FCU) is the workhorse of comfort. Whether installed in a hotel room, a high-rise office, or a residential apartment, the FCU relies on one critical component to move air: the fan coil unit motor. When this motor fails, the room becomes stuffy, temperatures fluctuate, and energy bills rise.
At Trustec, we have spent years helping facility managers and homeowners understand the intricacies of motor replacement. This guide will walk you through everything you need to know about the fan coil unit motor—from identifying failure signs to selecting the right replacement for long-term efficiency.
A fan coil unit motor is a specific type of electric motor designed to drive the blower wheel inside an FCU. Unlike large central air handler motors, FCU motors are typically smaller, ranging from 1/30 HP to 1/2 HP. They operate quietly because they are often installed in occupied spaces like ceiling plenums or under windows.
There are two primary types of fan coil unit motors:
Permanent Split Capacitor (PSC) Motors: These are the traditional choice. They are reliable, affordable, and easy to wire. However, they run at constant speed regardless of demand, which wastes energy.

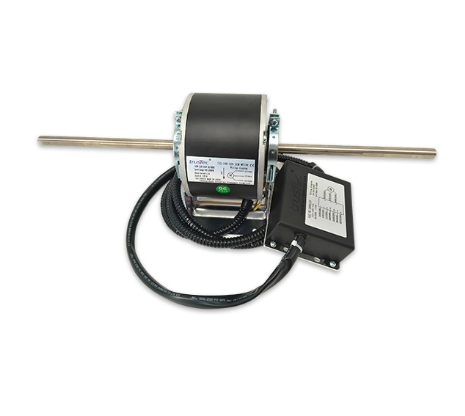

Electronically Commutated Motors (ECM): These are the modern upgrade. An ECM fan coil unit motor uses a built-in microprocessor to adjust torque and airflow based on real-time demand. They are significantly more efficient but cost more upfront.
Understanding which type you currently have is the first step in any replacement project.
A failing motor rarely stops working without warning. Look for these telltale signs:
1. Unusual Noises
A healthy fan coil unit motor hums quietly. If you hear grinding, squealing, or rattling, the bearings are likely worn out. If you hear a loud hum but the fan does not turn, the start capacitor may be failing, or the motor windings may be shorted.
2. Intermittent Operation
Does the fan start sometimes but not others? This often indicates thermal overload protection kicking in. The motor shuts off when it overheats, then restarts once it cools. This cycle will eventually destroy the motor.
3. No Airflow
If the unit is set to "Fan On" but no air comes from the vent, and you do not hear the motor running, the fan coil unit motor may have an open winding or a failed run capacitor.
4. Tripped Breakers
A motor with shorted windings draws excessive current, tripping the circuit breaker or blowing the fuse. If resetting the breaker does not work, the motor is likely dead.
5. High Energy Bills
A worn motor loses efficiency. It draws more amperage to maintain the same torque, increasing your electricity consumption. Replacing an old PSC motor with a modern ECM fan coil unit motor can reduce fan energy use by up to 70%.
Selecting the correct fan coil unit motor requires matching several critical specifications. Here is what to check before buying:
Horsepower (HP)
Never guess the horsepower. Check the nameplate on the old motor. Using a motor with lower HP will cause overheating. Using higher HP may create excessive airflow, leading to water blow-off from the cooling coil and noise complaints.
RPM (Speed)
Most FCU motors are multi-speed, typically offering three or four speeds (Low, Medium, High). The RPM at each speed must match the original to maintain proper airflow for heating and cooling modes. An incorrect RPM can freeze the evaporator coil or cause the heater to cycle on its limit switch.
Voltage and Phase
Common voltages include 115V (residential) and 208-230V (commercial). Nearly all fan coil units use single-phase power. Verify this carefully—connecting a 115V motor to 230V will destroy it instantly.
Frame and Mounting
Fan coil unit motors usually have a "48 frame" or "skeleton frame" design with resilient rings (rubber bushings) to reduce vibration. Measure the shaft diameter (typically 1/2" or 5/8") and the shaft length. The mounting bracket spacing must match your FCU's blower housing.
Rotation
Stand facing the shaft end of the motor. Determine if the original rotates Clockwise (CW) or Counter-Clockwise (CCW). Many replacement motors, including those from Trustec, are reversible by changing lead connections.
This is the most important decision you will make.
Choose a PSC replacement motor if:
You have a strict budget. PSC motors cost 60-70% less than ECMs.
The FCU is in a low-use area (e.g., a storage room or seasonal space).
The existing control system uses simple relays and cannot communicate with an ECM.
Choose an ECM replacement motor if:
The FCU runs 8+ hours daily. The energy savings will pay for the motor in under a year.
Occupants complain about drafts or temperature swings. ECMs provide constant airflow regardless of filter condition.
You are pursuing green building certifications like LEED or Energy Star.
The unit has a smart thermostat capable of continuous fan operation.
Many Trustec customers are now retrofitting older PSC-based FCUs with ECM motors, reporting 50-80% reductions in fan power consumption.
Replacing a fan coil unit motor is a DIY-friendly task for experienced technicians, but novices should hire a professional. Here is the general process:
Step 1: Kill the power. Lock out the circuit breaker or remove the fuse for the specific FCU. Verify with a multimeter that no voltage is present.
Step 2: Access the blower assembly. Remove the FCU's front panel and insulation. Locate the blower wheel and motor assembly.
Step 3: Disconnect wiring. Take a clear photo of the wiring connections. Label each wire (High speed, Medium, Low, Neutral, Common, and Capacitor leads).
Step 4: Remove the blower wheel. Loosen the setscrew on the blower wheel hub. Pull the wheel off the motor shaft. This can be difficult due to corrosion—use penetrating oil.
Step 5: Unmount the motor. Remove the bolts or screws holding the motor to the blower housing. Slide the motor out.
Step 6: Install the new motor. Transfer any resilient rings or mounting brackets to the new fan coil unit motor. Slide it into place and secure it.
Step 7: Reattach the blower wheel. Clean the shaft with sandpaper. Apply anti-seize compound. Slide the wheel onto the shaft and tighten the setscrew. Ensure the wheel spins without rubbing the housing.
Step 8: Wire the new motor. Follow the wiring diagram. Always install a new run capacitor with the same microfarad (µF) rating as the original or as specified by the new motor manufacturer.
Step 9: Test. Restore power and run the fan on each speed. Listen for unusual noises. Measure amperage with a clamp meter—it should be within 10% of the nameplate rating.
Reusing the old capacitor. Capacitors degrade over time. A weak capacitor reduces starting torque and shortens motor life. Always buy a new one.
Ignoring the blower wheel. A bent or unbalanced wheel destroys new bearings within weeks. Spin the wheel before installing it—if it wobbles, replace it.
Overtightening setscrews. This cracks the blower wheel hub or strips the shaft. Use a torque wrench or hand-tighten plus one quarter turn.
Using undersized wire. If the original wiring is brittle or burned, replace it with 18-gauge or 16-gauge thermoset wire rated for 105°C.
When you need a reliable fan coil unit motor, Trustec delivers quality and performance. Our motors feature heavy-gauge copper windings, sealed ball bearings, and thermal overload protection. We offer both PSC and ECM models to fit virtually every FCU brand, including Carrier, Daikin, Trane, and York.
Our commitment to customer support means you never have to struggle with technical questions. Whether you need help identifying a frame size or deciding between two horsepower ratings, our team is here to help.
The fan coil unit motor is the heart of any FCU system. Recognizing the signs of failure early and choosing the right replacement—whether a cost-effective PSC or a high-efficiency ECM—will save you money, improve comfort, and extend the life of your HVAC equipment.
