A heat pump is a marvel of engineering. It provides both heating and cooling by moving heat rather than generating it. But like all mechanical systems, it relies on several critical components. One of the most important—and most frequently replaced—is the heat pump fan motor. This motor drives the outdoor condenser fan, which dissipates heat in cooling mode and extracts heat from outdoor air in heating mode.
When the heat pump fan motor fails, the entire system stops working efficiently. In cooling mode, the compressor overheats. In heating mode, the unit ices up and shuts down. At Trustec, we have helped thousands of homeowners and technicians find the right replacement motor for their heat pumps. This guide covers everything you need to know: from failure symptoms to selection criteria and installation best practices.
Unlike a standard air conditioner fan motor, a heat pump fan motor operates year-round. In summer, it runs whenever the compressor runs. In winter, it runs to pull heat from cold outdoor air. This constant duty cycle means the motor experiences more thermal stress and wear than a cooling-only condenser fan motor.
Additionally, heat pump fan motors must perform in sub-freezing temperatures. Rain, snow, and ice are common enemies. For this reason, high-quality heat pump fan motor replacements use sealed ball bearings and moisture-resistant insulation. Standard air conditioner motors often fail quickly when used in heat pump applications because they are not designed for winter operation.
Catching a failing motor early prevents compressor damage and expensive emergency repairs. Look for these warning signs:
1. The Outdoor Fan Does Not Spin
You hear the compressor running (a humming sound), but the fan blade remains still. If you push the blade with a long screwdriver and it starts spinning, the run capacitor is likely bad. If it still does not spin, the heat pump fan motor windings may be open or shorted.
2. Unusual Noises
Grinding or screeching indicates bearing failure. Rattling may mean a loose fan blade or debris inside the unit. A loud humming followed by a click (the contactor opening) suggests the motor is drawing locked-rotor amps and tripping its internal overload protector.
3. The Unit Ices Up in Winter
A heat pump normally goes into defrost mode every 30 to 90 minutes to clear frost from the outdoor coil. If you see thick ice covering the entire coil and the fan is not running, the heat pump fan motor may have failed. Without fan airflow, the coil cannot absorb heat, and ice builds rapidly.
4. Warm Air in Cooling Mode
In summer, a failed fan motor prevents heat rejection. The compressor runs, but the outdoor coil becomes superheated. The system loses efficiency, and you feel lukewarm air from the indoor vents. The compressor may eventually trip on high-pressure.
5. Tripped Breaker or Blown Fuse
A shorted heat pump fan motor draws excessive current. If the breaker trips immediately when the heat pump tries to run, test the motor windings for a short to ground.
Before ordering a replacement, confirm the diagnosis with a multimeter. Follow these steps:
Kill the power. Turn off the disconnect at the outdoor unit and the breaker at the main panel.
Access the motor. Remove the top grille and fan blade. The motor is mounted in the center of the condenser coil.
Check the capacitor. Discharge the run capacitor with an insulated screwdriver. Test capacitance with a meter. If the reading is more than 10% below the labeled microfarads (µF), replace it.
Test winding resistance. Set your meter to Ohms. Measure between Common (C) and Start (S), and between Common and Run (R). A good motor shows low, balanced resistance. An open winding shows infinity. A shorted winding shows zero.
Test for ground. Measure between each terminal and the metal motor housing. Any reading other than infinity indicates a short to ground. The motor is dead.
If the motor fails any of these tests, you need a new heat pump fan motor.
Choosing the correct replacement is critical. A mismatched motor will overheat, draw too much current, or fail to move enough air. Here are the specifications to match:
Horsepower (HP)
Heat pump fan motors typically range from 1/6 HP to 1 HP for residential units, and up to 5 HP for commercial systems. Never install a lower HP motor—it will overheat. A slightly higher HP (e.g., 1/4 HP replacing 1/6 HP) is usually acceptable if the RPM and frame size match, but verify the amp draw does not exceed the contactor rating.
RPM (Revolutions Per Minute)
Most residential heat pumps use 810 RPM, 825 RPM, 850 RPM, or 1075 RPM. The RPM must match exactly. An incorrect RPM changes airflow across the condenser coil, causing high or low refrigerant pressures. This shortens compressor life.
Voltage and Phase
Common voltages are 115V (smaller units) and 208-230V (larger units). All residential heat pumps use single-phase power. Check the nameplate on the old motor. Installing a 115V motor on 230V destroys it instantly.
Frame Size
The frame size determines mounting dimensions. Common frames for heat pump fan motors include 48Y, 48Z, and 51. Measure the bolt circle diameter and the distance from the base to the shaft center. If these do not match, the motor will not fit.
Shaft Diameter and Length
Standard shaft diameters are 1/2 inch and 5/8 inch. Measure carefully. The shaft length must be sufficient to fully engage the fan blade hub while leaving a small gap for thermal expansion.
Rotation (CW vs. CCW)
Stand facing the shaft end. Most heat pumps use Counter-Clockwise (CCW) rotation when viewed from the top. However, some brands use Clockwise (CW). Look for an arrow on the old motor or check the wiring diagram on the unit's access panel. Many Trustec replacement motors are reversible.
Traditional heat pumps use a single-speed fan motor. It runs at 100% speed whenever the compressor runs. However, modern high-efficiency heat pumps use multi-speed or variable-speed fan motors.
Single-Speed (PSC): Affordable and reliable. Uses a run capacitor. Noisy at full speed. Less efficient.
Two-Speed: Runs at low speed for mild weather and high speed for extreme conditions. Quieter and more efficient.
Variable-Speed (ECM): The best option. An ECM heat pump fan motor adjusts speed continuously to maintain optimal coil temperature. It runs slowly and quietly most of the time, ramping up only when needed. Energy savings of 60-80% are common.
If your heat pump's control board supports it, upgrading to a variable-speed ECM heat pump fan motor is one of the best investments you can make. Trustec offers high-quality ECM replacements for most major brands.
Replacing a heat pump fan motor is a straightforward job for an experienced DIYer or HVAC technician. Follow these steps:
Step 1: Kill the power. Lock out the disconnect at the outdoor unit. Verify zero voltage with a multimeter.
Step 2: Remove the top grille. Most units have a few screws holding the top cover. Lift the grille and fan blade assembly together.
Step 3: Remove the fan blade. Loosen the setscrew on the blade hub. Note the blade's position on the shaft—measure the distance from the blade to the motor face. You will need this when installing the new blade. Pull the blade off. Use a puller tool if it is stuck.
Step 4: Unmount the motor. Remove the bolts or screws holding the motor to the mounting bracket. Disconnect the wiring, taking a photo first.
Step 5: Install the new motor. Mount the new heat pump fan motor using the same bracket. Transfer any rubber grommets or washers from the old motor.
Step 6: Install the fan blade. Clean the new shaft with sandpaper. Apply anti-seize. Slide the blade onto the shaft to the exact depth measured earlier. Tighten the setscrew firmly but not excessively.
Step 7: Wire the motor. Follow the wiring diagram. Replace the run capacitor with a new one of the same microfarad rating.
Step 8: Test. Restore power. Run the heat pump. The fan should spin smoothly and quietly. Measure amperage with a clamp meter—it should be within 10% of the nameplate rating.
Skipping the capacitor replacement. Always install a new capacitor. Old capacitors cause hard starting and kill new motors.
Using the wrong blade depth. If the blade is too low, it hits the grille. If too high, it does not pull enough air across the coil.
Forgetting to tighten the setscrew. A loose fan blade wobbles, destroys the shaft, and may fly off.
Ignoring the contactor. While you have the unit open, inspect the contactor for pitted contacts. Replace if necessary.

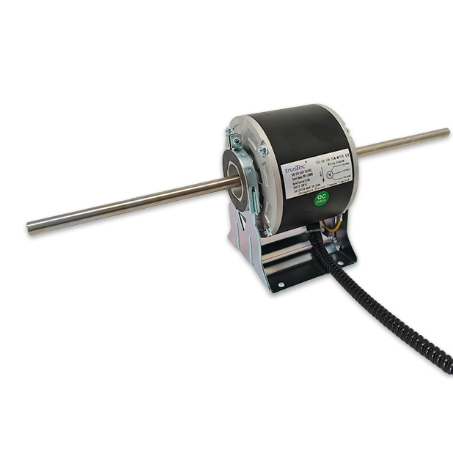

When you need a reliable heat pump fan motor, Trustec is the name to trust. Our motors are engineered for extreme conditions: from scorching summer rooftops to freezing winter snowstorms. We use double-sealed ball bearings, high-temperature magnet wire, and moisture-resistant varnish.
Whether you need a direct OEM replacement or an energy-saving ECM upgrade, Trustec has the right motor for your heat pump. Our technical team is standing by to help you select the correct horsepower, RPM, and frame size.
The heat pump fan motor is essential for year-round comfort and efficiency. Recognizing the signs of failure early—unusual noises, ice buildup, or a fan that will not spin—can save you from a costly compressor replacement. When it is time to buy, match the specifications carefully and consider upgrading to a variable-speed ECM motor for maximum energy savings.
