When replacing a failed outdoor fan motor in an air conditioning or heat pump system, one of the most critical specifications to verify is the voltage rating. The vast majority of residential and light commercial HVAC equipment uses the 208-230V condenser fan motor. This voltage range is standard across North America, powering millions of outdoor condensing units every summer and winter.
At Trustec, we help contractors, property managers, and homeowners understand the technical details behind this common component. In this in-depth guide, we explain what 208-230V actually means, how these motors differ from 115V models, why voltage tolerance matters, how to select the correct replacement, and how to troubleshoot common voltage-related issues.
The designation 208-230V condenser fan motor indicates that the motor is designed to operate on either 208 volts or 230 volts, typically at 60 Hz. These two voltages are commonly found in:
208V: Three-phase commercial building services, or single-phase derived from two legs of a three-phase wye system. Common in apartments, condominiums, and small commercial buildings.
230V: Standard residential single-phase power supplied by utility transformers. Most homes in North America receive 240V nominal, which is within the 230V rating.
A properly designed 208-230V condenser fan motor is rated to handle the full range from 198V to 253V (10% below 220V to 10% above 230V). This tolerance accounts for voltage drop during peak utility demand and line losses in long wiring runs.
Understanding the differences helps prevent dangerous and costly mismatches.
Feature | 115V Condenser Fan Motor | 208-230V Condenser Fan Motor |
|---|---|---|
Amperage (for same HP) | Higher (approx. 2x) | Lower (approx. 1/2) |
Wiring gauge required | Thicker wire (lower resistance) | Thinner wire (higher resistance) |
Common applications | Window units, small PTACs, mini-splits | Central split systems, heat pumps, package units |
Starting torque | Generally lower | Generally higher |
Capacitor rating | Larger microfarad value | Smaller microfarad value |
A 208-230V condenser fan motor of the same horsepower as a 115V motor draws approximately half the amperage. This is why most central air conditioners use 208-230V—lower current means smaller wire sizes, less voltage drop, and reduced energy losses in the supply wiring.
Not all 208-230V condenser fan motors are created equal. Some budget motors are built with narrow voltage tolerance, typically 210-230V. When connected to a building with true 208V supply, these motors may experience:
Reduced starting torque: The motor struggles to spin the fan blades from a dead stop.
Higher running amperage: Low voltage causes current to increase, overheating the windings.
Premature thermal overload trips: The motor shuts itself off during hot weather.
Complete failure: Prolonged operation at 208V on a 230V-only motor leads to insulation breakdown.
A quality 208-230V condenser fan motor is explicitly rated for both voltages. Look for nameplate markings that state "208-230V" or "200-240V," not simply "230V."
You will find this motor in a wide range of equipment:
Residential Central Air Conditioners
1.5 to 5 ton split systems
Outdoor condenser units from all major brands (Carrier, Trane, Lennox, Rheem, Goodman, American Standard)
Residential and Commercial Heat Pumps
Both standard and variable-speed heat pumps
Packaged heat pumps (all-in-one rooftop or slab-mounted units)
Light Commercial Package Units
Rooftop units (RTUs) up to 10 tons
Vertical package units for restaurants and small retail stores
Commercial Refrigeration Condensers
Walk-in cooler and freezer remote condensers
Reach-in refrigerator condensing units
The 208-230V condenser fan motor is truly the workhorse of the HVAC industry.
When your existing motor fails, you cannot simply buy any 208-230V motor. Follow these five selection criteria:
Common ratings include 1/6 HP, 1/4 HP, 1/3 HP, 1/2 HP, and 3/4 HP. Never install a lower horsepower motor than original. Running an undersized motor leads to overheating and rapid failure. Slightly higher horsepower is acceptable, provided the RPM matches.
Standard speeds for 208-230V condenser fan motors are:
810 RPM (older residential units)
825 RPM (common replacement speed)
1075 RPM (most modern residential units)
1100 RPM (some brands)
1625 RPM (commercial applications)
Matching RPM is critical. A motor spinning too fast moves excessive air, reducing heat exchange efficiency. A motor spinning too slow cannot reject enough heat.
The frame size determines mounting hole spacing and shaft height. Common frame sizes for 208-230V condenser fan motors include:
48 frame: Most common residential size
48Y frame: Same as 48 but with different mounting studs
51 frame: Larger residential and light commercial
Universal replacement motors typically feature multiple mounting brackets to fit various frame sizes.
Diameter: 1/2 inch (most common) or 5/8 inch
Length: Typically 4 to 6 inches, depending on blade hub thickness
Measure your original shaft before ordering. A shaft that is too short will not fully engage the fan blade hub. A shaft that is too long may interfere with the fan grille.
208-230V condenser fan motors can be either:
CW (clockwise) viewed from the shaft end
CCW (counterclockwise) viewed from the shaft end
Most residential units use CCW rotation as standard, but always verify. Universal motors allow rotation reversal by changing wiring connections.
Even a brand new 208-230V condenser fan motor will fail quickly if voltage problems exist at the job site.
Symptom: Motor hums but does not start.
Check voltage at the motor terminals during startup. Below 198V indicates a serious supply issue.
Test the capacitor. A weak capacitor combined with low voltage will prevent starting.
Check for loose connections at the contactor and disconnect.
Symptom: Motor runs but overheats and trips thermal overload.
Measure running voltage. A drop below 208V under load indicates undersized wiring or a failing transformer.
Check amperage draw. High amperage with correct voltage points to failing bearings or incorrect fan blade.
Symptom: Motor runs backward.
On a 208-230V condenser fan motor, reversing rotation typically requires swapping the polarity of the start winding leads. Consult the wiring diagram.
Some universal motors use an internal jumper to change rotation direction.
Symptom: Motor runs slowly and draws high amps.
Test the run capacitor. A capacitor with microfarad reading more than 10% below rating will reduce torque.
Check for a seized or stiff bearing. A motor that is hard to turn by hand has internal mechanical failure.
Nearly all 208-230V condenser fan motors in residential and light commercial HVAC are permanent split capacitor (PSC) motors. The run capacitor remains in the circuit at all times, providing a phase shift that improves running efficiency and starting torque.
When replacing a 208-230V condenser fan motor, always test or replace the run capacitor at the same time. Capacitors degrade over time, and a weak capacitor will:
Reduce motor starting torque by 30–50%
Increase running amperage by 15–25%
Cause the motor to overheat and trip its thermal protector
Shorten motor life by years
The correct capacitor microfarad rating is printed on the motor nameplate. Do not guess.
Preventive maintenance directly impacts motor longevity.
Keep the Condenser Coil Clean: A dirty coil raises condensing pressure, forcing the motor to work harder against higher resistance. Clean the coil annually with a garden hose and coil cleaner.
Check the Contactor: Worn contactor contacts cause voltage drop and arcing. Replace any contactor with pitted or burned contacts.
Verify Voltage at the Unit: Use a multimeter to measure voltage at the outdoor unit during peak load (hottest day, all appliances running). Voltage should stay above 208V.
Clear Debris: Remove leaves, grass, and cottonwood seeds from the fan grille and interior. Blocked airflow increases motor load.
Listen Monthly: Any new grinding, squealing, or clicking noise is a warning sign.

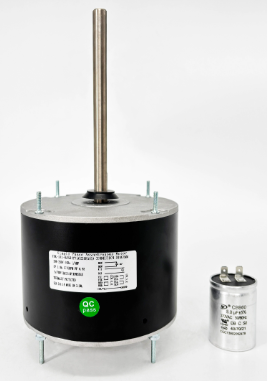

At Trustec (www.trustecgroup.com), we understand that voltage tolerance is not a marketing claim—it is an engineering requirement. Every 208-230V condenser fan motor in our inventory is built to operate reliably from 198V to 253V. Our motors feature:
Heavy-gauge copper windings for efficient operation across the entire voltage range.
Sealed ball bearings that withstand high starting torque and continuous operation.
Oversized start and run capacitor compatibility for improved low-voltage starting.
Class F insulation rated for 155°C (311°F) to survive extreme heat and voltage stress.
Universal mounting plates that fit 48, 48Y, and 51 frame applications.
The 208-230V condenser fan motor is the backbone of residential and light commercial cooling systems. Selecting the correct horsepower, RPM, frame size, and voltage tolerance is essential for reliable operation. Equally important is testing the run capacitor and verifying actual supply voltage at the equipment.
By understanding the unique demands of a 208-230V condenser fan motor and choosing a quality replacement from Trustec, you ensure efficient cooling, prevent costly compressor failures, and avoid emergency service calls during the hottest weather.
