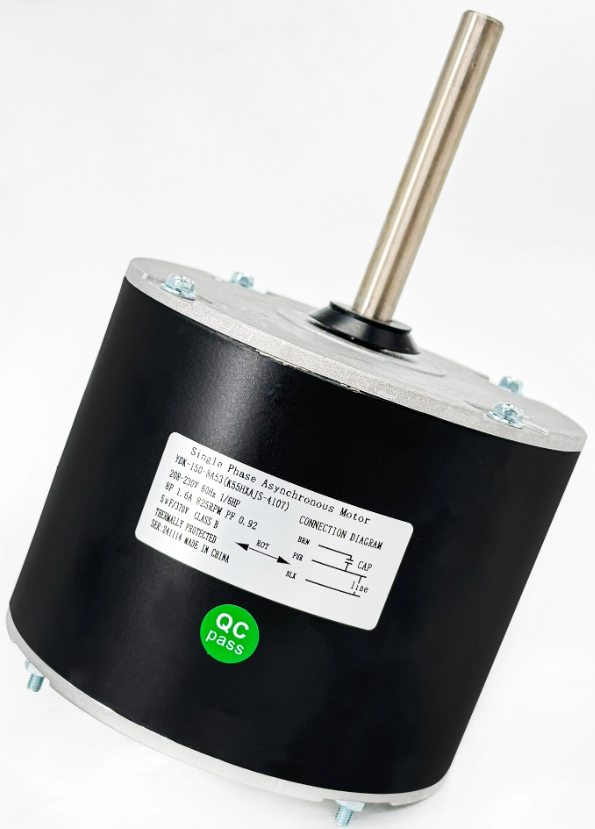

In the world of residential and light commercial air conditioning, the 230V condenser fan motor has become a cornerstone component. As HVAC systems have evolved toward higher efficiency and greater reliability, the 230V single-phase motor has emerged as the preferred standard for outdoor condensing units. For contractors, facility managers, and parts distributors, sourcing a dependable wholesale 230V condenser fan motor is essential for maintaining service quality and controlling costs.
At Trustec, we partner with volume buyers who understand that voltage compatibility is just the starting point. True reliability comes from quality materials, proper specifications, and consistent manufacturing. This guide explores everything you need to know about 230V condenser fan motors—from electrical fundamentals to inventory strategy—so you can make informed wholesale purchasing decisions.
Older homes and smaller air conditioning units often used 115V condenser fan motors. However, as air conditioners grew larger and efficiency standards increased, manufacturers shifted to 230V for several compelling reasons.
A 230V motor draws exactly half the amperage of a 115V motor with the same horsepower. Lower amperage means smaller gauge wiring, less heat generation, and reduced voltage drop over long distances. For a typical 3-ton condenser located 50 feet from the electrical panel, a 230V circuit is simply more efficient and safer than a 115V circuit.
Furthermore, nearly all modern split-system air conditioners from 1.5 tons upward use 230V power for the outdoor unit. This means a wholesale 230V condenser fan motor fits the vast majority of equipment manufactured in the last 20 years. For contractors and distributors, stocking 230V motors covers the highest volume of replacement needs.
Not all 230V condenser fan motors are created equal. Wholesale buyers need to evaluate several key specifications to ensure they are stocking motors that will perform reliably in the field.
Single-Phase vs. Three-Phase
The overwhelming majority of residential and light commercial condenser fan motors are single-phase. These motors use one or more capacitors to create the phase shift needed for starting and running. Three-phase 230V motors exist but are almost exclusively found in industrial equipment and large commercial HVAC systems.
For a wholesale 230V condenser fan motor aimed at the standard replacement market, single-phase is the correct choice. Three-phase motors represent a specialized niche with much lower volume.
Horsepower Ratings
Common horsepower ratings for 230V condenser fan motors range from 1/6 HP up to 1 HP. However, the vast majority of residential and light commercial applications fall into three categories:
1/6 HP: Small units (1.5 to 2 tons)
1/4 HP: Standard units (2 to 3.5 tons)
1/3 HP: Larger residential units (3.5 to 5 tons)
1/2 HP: Light commercial and high-static applications
For wholesale inventory, 1/4 HP and 1/3 HP motors at 1075 RPM represent approximately 70 percent of replacement sales. Stocking these two sizes heavily covers most daily service calls.
Speed (RPM)
Most standard-efficiency condenser fan motors run at 1075 RPM. Older equipment and some high-efficiency designs may use 825 RPM motors. Variable-speed and ECM motors operate across a range of speeds, but standard PSC motors dominate the replacement market.
When purchasing a wholesale 230V condenser fan motor, 1075 RPM is the safest choice for broad compatibility. Stock a smaller quantity of 825 RPM motors for older systems.
Frame Size and Mounting Configuration
Frame size determines physical dimensions and mounting hole spacing. The 48-frame is standard for residential condenser fan motors, measuring approximately 5.6 inches in diameter. Commercial units often use a larger 56-frame motor.
Mounting styles vary:
Resilient ring: Rubber isolators reduce vibration transmission
Rigid base: Motor bolts directly to a flat mounting plate
Belly band: A metal strap wraps around the motor body
Resilient ring mounting in a 48-frame offers the widest compatibility for residential replacements. A wholesale 230V condenser fan motor with resilient rings will fit into most standard condenser units with minimal modification.
Enclosure Type for Outdoor Durability
Condenser fan motors live outdoors year-round. They face rain, snow, direct sunlight, insects, and temperature swings from well below freezing to over 120°F. The enclosure type determines how well a motor survives these conditions.
Open Drip-Proof (ODP) enclosures have ventilation slots that allow air to circulate through the windings. While this keeps the motor cooler, it also allows moisture and debris to enter. ODP motors often fail within a few years in harsh outdoor environments.
Totally Enclosed Air Over (TEAO) enclosures seal the internal components while still allowing heat to dissipate through the housing. For any wholesale 230V condenser fan motor destined for outdoor use, TEAO is the recommended enclosure. The slightly higher upfront cost is quickly recovered through longer motor life and fewer callbacks.
Buying condenser fan motors one at a time from local supply houses is expensive and inefficient. Wholesale purchasing through Trustec offers three clear advantages.
Lower Per-Unit Cost. Volume discounts at quantities of 12, 24, or 50 motors significantly reduce the cost per unit. The savings on a pallet of 24 motors compared to 24 individual purchases can exceed 30 percent.
Reduced Shipping Costs. Consolidating motors onto pallets reduces freight costs per motor dramatically. A single pallet shipment costs far less than dozens of small parcel deliveries.
Inventory Readiness. Having a wholesale 230V condenser fan motor on your shelf means no emergency trips to the supply house at 4 PM on a Friday. Same-day repairs lead to happier customers and more completed jobs per day.
Even experienced technicians occasionally make mistakes when replacing condenser fan motors. Understanding these common errors helps wholesale buyers advise their customers and reduce warranty claims.
Wrong Rotation Direction. A condenser fan motor spinning backward moves only about half of its rated airflow. The result is high refrigerant pressures, poor cooling performance, and potential compressor damage. Reversible motors with clear wiring diagrams prevent this problem.
Incorrect Capacitor Selection. Every 230V condenser fan motor requires a properly sized run capacitor. Using an old or incorrectly rated capacitor reduces torque and causes overheating. The correct microfarad value is printed on the motor nameplate. Many wholesale buyers include a matching capacitor with each motor.
Mounting Mismatches. A motor that does not fit properly will vibrate, wear out bearings quickly, and potentially damage the condenser cabinet. Stocking resilient ring 48-frame motors covers the broadest range of applications.
Ignoring Shaft Dimensions. Shaft diameter and length must match the fan blade hub. Most residential motors use a 1/2-inch diameter shaft. Shaft length typically ranges from 3 to 6 inches. A 4-inch or 5-inch shaft covers the majority of applications.
For most contractors and distributors, a targeted wholesale 230V condenser fan motor inventory does not need to include every possible variation. Focus on the models that handle 80 percent of replacement needs.
Recommended core SKUs:
1/4 HP, 1075 RPM, 48-frame, reversible, TEAO, 1/2-inch shaft
1/3 HP, 1075 RPM, 48-frame, reversible, TEAO, 1/2-inch shaft
1/2 HP, 1075 RPM, 48-frame, rigid base, TEAO (for larger systems)
1/6 HP, 1075 RPM, 48-frame, reversible, TEAO (for small units)
Stock the 1/4 HP and 1/3 HP models most heavily. Include matching run capacitors for each motor. Store motors in a clean, dry area away from direct sunlight and extreme temperatures.
Trustec builds every wholesale 230V condenser fan motor for real-world reliability. Our motors feature heavy-gauge copper windings, double-sealed ball bearings rated for 50,000 hours, Class F high-temperature insulation, and automatic reset thermal overload protection. TEAO enclosures keep moisture and debris out while allowing proper heat dissipation.
Our wholesale program offers transparent tiered pricing, batch traceability for quality control, and fast fulfillment from regional distribution centers. Whether you need a dozen motors for your service fleet or a pallet for your warehouse, you receive consistent quality and dependable performance.
The 230V condenser fan motor is the workhorse of modern air conditioning systems. It runs in millions of homes and businesses, enduring heat, cold, rain, and snow. For contractors and distributors, a reliable wholesale 230V condenser fan motor from Trustec means fewer callbacks, faster repairs, and more satisfied customers.
Focus on the right specifications: 1/4 HP and 1/3 HP, 1075 RPM, 48-frame, TEAO enclosure, reversible, with a 1/2-inch shaft. Include matching capacitors. Buy at volume to maximize savings. That is how successful HVAC businesses turn a standard replacement part into a competitive advantage.
