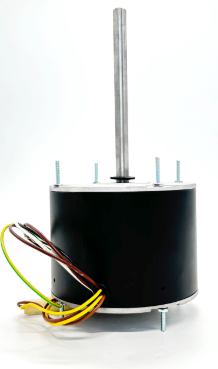

Wholesale 5.6 Inch Condenser Fan Motor – Precision Cooling for Demanding HVAC Applications

When it comes to maintaining consistent performance in air conditioning and refrigeration systems, the smallest details often matter most. One such detail is the physical size of the condenser fan motor. While frame size and electrical ratings receive much attention, the motor’s overall length and mounting configuration can determine whether a replacement fits properly. For professionals seeking a Wholesale 5.6 Inch Condenser Fan Motor, understanding the specific advantages of this form factor is essential.

At Trustec, we design and supply electric motors for the most demanding HVAC environments. Through our platform at www.trustecgroup.com, we offer a comprehensive selection of 5.6 inch condenser fan motors engineered for reliable operation in residential, commercial, and industrial cooling systems. This article explores the unique characteristics of the 5.6 inch motor family, its typical applications, and the benefits of sourcing these motors in wholesale quantities.

What Is a 5.6 Inch Condenser Fan Motor?

The term “5.6 inch” in condenser fan motor specifications refers to the stack height or the overall length of the motor’s stator core. More commonly, in the HVAC industry, it indicates the distance from the mounting face to the farthest point of the motor housing or the height of the motor’s body. A 5.6 inch motor typically falls into the compact to mid-size category, making it suitable for condenser units where space is limited but power requirements remain significant.

These motors are often built on NEMA 48-frame or 42-frame platforms, with the 5.6 inch designation helping technicians quickly identify a motor that will fit within a specific condenser cabinet. Unlike larger frame sizes used in industrial chillers, the 5.6 inch condenser fan motor balances physical compactness with adequate torque and thermal capacity.

Why Physical Size Matters in Condenser Fan Motors

One might assume that all condenser fan motors are interchangeable as long as the horsepower and voltage match. This is not the case. The physical dimensions of a motor determine:

• Clearance within the condenser cabinet: A motor that is too long may contact the cabinet wall or interfere with refrigerant lines.

• Fan blade positioning: The distance from the mounting plate to the shaft end must align with the fan blade hub location. An incorrect stack height pushes the blade too high or too low, reducing airflow.

• Mounting bolt patterns: While frame size dictates bolt spacing, overall motor length affects weight distribution and vibration characteristics.

A 5.6 inch condenser fan motor strikes an optimal balance. It provides enough internal space for robust windings and thermal protection while remaining compact enough for modern high-efficiency condensers.

Key Technical Specifications of a Quality 5.6 Inch Motor

When evaluating wholesale options for 5.6 inch condenser fan motors, pay close attention to these specifications:

1. Horsepower Range
   Common horsepower ratings for 5.6 inch motors include 1/6 HP, 1/4 HP, 1/3 HP, and 1/2 HP. Lower ratings suit small residential condensers and refrigeration units; higher ratings handle larger coils and multiple fan arrangements.

2. Speed Ratings
   Most 5.6 inch condenser fan motors operate at 825 RPM, 1075 RPM, or 1100 RPM. Some premium models offer two-speed or variable-speed capability for enhanced energy savings and noise reduction.

3. Voltage Configurations
   Standard voltages include 115V for single-phase residential systems and 208-230V for commercial applications. Dual-voltage 115/230V motors provide inventory flexibility for wholesale buyers.

4. Rotation Direction
   High-quality 5.6 inch motors are field-reversible. This allows a single SKU to serve both clockwise and counterclockwise applications, reducing the number of spare parts a contractor must carry.

5. Enclosure Type
   These motors typically feature TEAO (Totally Enclosed Air-Over) construction. The enclosure protects internal components from rain, dust, and debris while allowing the condenser fan’s airstream to provide cooling.

6. Thermal Protection
   Automatic reset thermal overload protectors are standard. These devices interrupt power if the motor exceeds safe operating temperatures, then restore power once the motor cools. This feature prevents burnouts during extreme heat waves or restricted airflow events.

Common Applications for the 5.6 Inch Condenser Fan Motor

The 5.6 inch size appears across a wide range of cooling equipment:

• Residential Split System Condensers: Many 1.5 to 4 ton outdoor units use 5.6 inch motors for their condenser fan. The compact size allows manufacturers to design smaller, quieter condenser cabinets.

• Residential Heat Pump Outdoor Units: Since heat pumps operate year-round, the condenser fan motor must withstand winter heating cycles as well as summer cooling. A quality 5.6 inch motor handles both regimes.

• Packaged Terminal Air Conditioners (PTACs): These through-the-wall units often contain 5.6 inch condenser fan motors due to space constraints within the chassis.

• Room Air Conditioners: Window units and portable air conditioners frequently rely on 5.6 inch or similar compact motors for their outdoor condenser airflow.

• Small Refrigeration Condensers: Walk-in cooler and freezer systems with remote condensing units up to 2 HP often specify 5.6 inch condenser fan motors.

• Ice Machine Condensers: Commercial ice makers require reliable condenser fan operation. A 5.6 inch motor provides adequate airflow in a package that fits within the machine’s cabinet.

Signs of a Failing 5.6 Inch Condenser Fan Motor

For facility managers and service technicians, recognizing motor failure early prevents secondary damage:

• Increased Operating Temperature: The motor housing feels excessively hot to the touch, indicating high winding currents or poor heat dissipation.

• Bearing Noise: Squealing, grinding, or rattling sounds suggest that the bearings have lost lubrication or have become contaminated.

• Intermittent Operation: The motor starts, runs briefly, stops, and then restarts repeatedly. This pattern usually indicates thermal overload cycling due to high current draw or inadequate cooling airflow.

• Slow or Failed Starting: A motor that hums but does not turn, or turns very slowly, may have a failed start capacitor, open winding, or seized bearing.

• Visible Damage: Melted wire insulation, burned odors, or rust on the shaft all point to end-of-life conditions.

Why Buy Wholesale 5.6 Inch Condenser Fan Motors from Trustec?

Sourcing these motors in wholesale quantities offers several business advantages:

1. Consistent Specifications Across Batches
   When you purchase wholesale from Trustec, every motor in your shipment meets the same dimensional and electrical standards. This consistency is critical for contractors who track performance across multiple job sites.

2. Reduced Inventory Complexity
   By stocking a single model of 5.6 inch condenser fan motor that covers multiple horsepower ratings or voltage configurations, you reduce the number of SKUs needed on your truck or warehouse shelf.

3. Lower Per-Unit Cost
   Wholesale pricing improves your margins on service calls and replacement projects. Volume discounts apply automatically, and larger orders qualify for additional savings.

4. Fast Fulfillment
   Trustec maintains deep inventory of popular 5.6 inch motor configurations. Backorders are rare, and we offer expedited shipping for urgent wholesale orders.

5. Application Support
   Not certain which 5.6 inch motor matches a specific condenser model? Our technical team provides cross-referencing assistance and dimensional verification before you commit to a wholesale purchase.

Installation Best Practices for 5.6 Inch Motors

Follow these guidelines to maximize service life:

• Verify Stack Height: Measure the original motor’s body length from the mounting plate to the rear end bell. Confirm that the replacement measures 5.6 inches or the specified dimension.

• Match the Fan Blade to the Shaft: The shaft diameter (typically 1/2 inch or 5/8 inch) must match the fan blade hub. Use a shaft adapter if necessary.

• Position the Blade Correctly: The fan blade should sit at the same height within the venturi ring as the original motor. Use the original motor as a reference.

• Check Rotation Before Full Assembly: Briefly energize the motor to confirm air blows upward or outward as designed. Reverse leads if rotation is incorrect.

• Seal All Electrical Connections: Use outdoor-rated wire nuts and moisture-resistant tape to prevent corrosion at the connection points.

Conclusion

The Wholesale 5.6 Inch Condenser Fan Motor occupies a vital niche in the HVAC replacement market. Its compact size, adequate power range, and broad compatibility make it a popular choice for residential condensers, PTAC units, room air conditioners, and small refrigeration systems.

Trustec delivers quality, consistency, and value for wholesale buyers. Our 5.6 inch condenser fan motors feature durable construction, thermal protection, and reversible rotation to simplify your inventory management. Whether you are a service contractor, facility manager, or distributor, Trustec has the products and expertise to support your business.

Explore our complete wholesale catalog at www.trustecgroup.com. Equip your team with reliable, properly sized 5.6 inch condenser fan motors from Trustec.
