Walk into any residential or light commercial condenser unit in North America, and you will almost certainly find a 208-230V power supply. This voltage range has become the industry standard for outdoor HVAC equipment, from single-family homes to strip malls and office buildings. For contractors and distributors, stocking a wholesale 208-230V condenser fan motor is not just a good idea—it is essential for daily business operations.
At Trustec, we work with volume buyers who understand that voltage compatibility is the first and most critical specification. A motor with the wrong voltage will not run at all, or worse, it will run poorly and fail quickly. This guide explains everything you need to know about 208-230V condenser fan motors, why they dominate the market, and how to build a wholesale inventory that keeps your customers running.
The North American electrical system delivers power to most residential and light commercial buildings as split-phase 240V. However, commercial buildings often receive three-phase power with a voltage of 208V between phases. Equipment manufacturers solved this problem by designing motors rated for both voltages—208V and 230V—on the same unit.
A wholesale 208-230V condenser fan motor works perfectly on either system. When connected to 208V, the motor draws slightly higher current but still delivers rated torque. When connected to 230V, the motor runs efficiently with normal current draw. This dual-voltage capability makes these motors incredibly versatile.
For technicians and distributors, stocking 208-230V motors covers the vast majority of replacement needs. Only older homes with 115V condenser units or industrial sites with 460V systems fall outside this standard.
Understanding the differences helps wholesale buyers make informed decisions about their inventory.
208-230V vs. 115V Motors
A 115V condenser fan motor draws roughly twice the amperage of a 230V motor of the same horsepower. Higher amperage means thicker wiring, heavier contacts, and more heat generation. For this reason, most modern condensers from 1.5 tons upward use 208-230V. Smaller window units and some older residential systems use 115V, but they represent a shrinking portion of the market.
When buying a wholesale 208-230V condenser fan motor, you are targeting the largest segment of the replacement market. A typical service truck might carry ten 208-230V motors for every one 115V motor.
Single-Phase vs. Three-Phase
Most 208-230V condenser fan motors in residential and light commercial applications are single-phase. These motors use a run capacitor and sometimes a start capacitor to generate the phase shift needed for starting. Three-phase 208-230V motors exist but are found almost exclusively in industrial and large commercial equipment.
For wholesale buyers focusing on the residential and small commercial market, single-phase 208-230V motors are the priority.
Multi-Tap Motors for Flexibility
Some premium wholesale 208-230V condenser fan motor models include multi-tap capability. These motors can be connected for either 208V or 230V operation without changing internal wiring—simply select the correct tap on the terminal board. This feature reduces installation errors and makes one motor model work in even more applications.
Voltage is just the beginning. Here are the other specifications that matter when buying in bulk.
Horsepower and Speed
The most common horsepower ratings for residential 208-230V condenser fan motors are 1/6 HP, 1/4 HP, 1/3 HP, and 1/2 HP. Speed is typically 1075 RPM for standard-efficiency units, though 825 RPM motors still appear in older equipment and some high-efficiency designs.
For wholesale inventory, 1/4 HP and 1/3 HP at 1075 RPM represent the sweet spot. These two sizes cover most 2- to 4-ton residential and light commercial condensers from major brands including Carrier, Trane, Rheem, Goodman, Lennox, and York.
Frame Size and Mounting
The 48-frame is standard for residential condenser fan motors. It measures approximately 5.6 inches in diameter and features mounting holes on the face or resilient rings for vibration isolation. Commercial units often use a larger 56-frame motor.
When selecting a wholesale 208-230V condenser fan motor, resilient ring mounting in a 48-frame offers the widest compatibility. These motors drop into most residential condensers with minimal adaptation.
Enclosure Type
Outdoor condenser fan motors face rain, snow, dust, and temperature extremes. Open Drip-Proof (ODP) enclosures allow airflow through the motor but also allow moisture ingress. Totally Enclosed Air Over (TEAO) enclosures seal the internal components, dramatically improving lifespan in outdoor service.
For any wholesale 208-230V condenser fan motor destined for outdoor use, TEAO is the recommended enclosure. The small additional cost per unit pays for itself in reduced warranty claims and callback service calls.
Rotation Direction
Some condenser fan motors are fixed rotation—clockwise only or counterclockwise only. Others are reversible by changing the wiring connections. Reversible motors are safer for wholesale inventory because they work regardless of the original motor's rotation direction.
Shaft Specifications
The shaft diameter and length must match the fan blade hub. Most residential condenser fan motors use a 1/2-inch diameter shaft. Shaft length typically ranges from 3 inches to 6 inches. A 4-inch or 5-inch shaft length covers the majority of applications.
Buying a wholesale 208-230V condenser fan motor at volume makes financial sense for several reasons.
First, per-unit pricing drops significantly at quantities of 12, 24, or 50 motors. The savings on a pallet of 24 motors compared to 24 individual purchases can exceed 30 percent. Second, consolidated shipping reduces freight costs. A single pallet shipment costs far less per motor than 24 small parcel deliveries. Third, having inventory on hand eliminates emergency purchases at retail prices.
For contractors, a wholesale purchase also means fewer supply house runs. Each motor on the shelf saves an hour of driving and waiting. For distributors, a strong wholesale inventory of 208-230V motors builds customer loyalty—contractors remember which supplier had the right motor when they needed it.
Even straightforward motor replacements can go wrong. Here are the most common issues with 208-230V condenser fan motors and how wholesale buyers can help their customers avoid them.
Incorrect Capacitor Selection

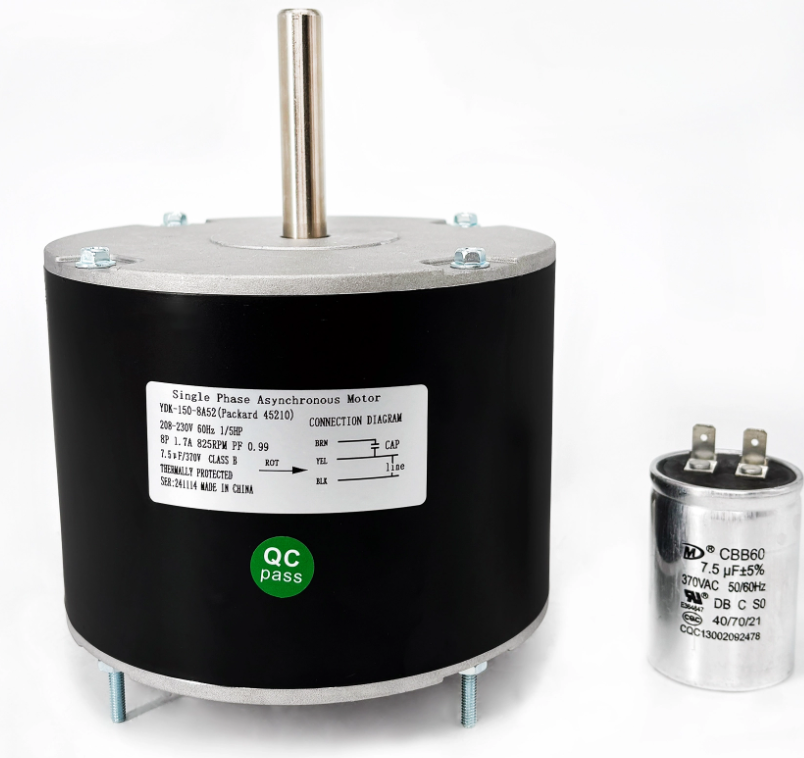

A 208-230V condenser fan motor requires a properly sized run capacitor. Using the old capacitor or guessing the microfarad rating leads to weak torque, overheating, and premature failure. The correct capacitor value is printed on the motor nameplate. Many wholesale buyers include a matching capacitor with each motor they sell.
Miswiring the Multi-Tap
On multi-tap motors, connecting to the wrong voltage tap causes either low torque (if connected to 230V but running on 208V) or overcurrent (if connected to 208V but running on 230V). Clear labeling and training reduce these errors.
Wrong Rotation Direction
A condenser fan motor spinning backward moves only about 50 percent of its rated airflow. The result is high refrigerant pressures, poor cooling or heating, and potential compressor damage. Reversible motors and clear wiring diagrams help technicians get it right.
Mounting Mismatch
A motor that does not fit properly vibrates, wears out bearings quickly, and can damage the condenser cabinet. Stocking resilient ring 48-frame motors covers the broadest range of applications.
For most buyers, a targeted wholesale 208-230V condenser fan motor inventory includes:
1/4 HP, 1075 RPM, 48-frame, reversible, TEAO, 1/2-inch shaft, multi-tap
1/3 HP, 1075 RPM, 48-frame, reversible, TEAO, 1/2-inch shaft, multi-tap
1/2 HP, 1075 RPM, 48-frame, reversible or rigid base, TEAO
1/6 HP, 1075 RPM, 48-frame, reversible, TEAO (for smaller 1.5- to 2-ton units)
Stock the 1/4 HP and 1/3 HP models most heavily. They represent approximately 70 percent of residential replacement needs. Include matching run capacitors in your inventory as well.
Trustec builds every wholesale 208-230V condenser fan motor for real-world reliability. Our motors feature dual-voltage compatibility, TEAO enclosures, double-sealed ball bearings, Class F insulation, and automatic reset thermal overload protection. We test every batch before shipping.
Our wholesale program offers transparent tiered pricing, batch traceability, and fast fulfillment from regional distribution centers. Whether you need a dozen motors or a full pallet, you receive consistent quality and dependable performance.
The 208-230V condenser fan motor is the workhorse of the HVAC industry. It runs in millions of homes and businesses across North America. For contractors and distributors, stocking a reliable wholesale 208-230V condenser fan motor from Trustec means fewer callbacks, faster repairs, and more satisfied customers.
Focus on the right specifications—1/4 HP and 1/3 HP, 1075 RPM, 48-frame, TEAO, reversible. Include matching capacitors. Buy at volume to maximize savings. That is how successful HVAC businesses turn a standard replacement part into a competitive advantage.
