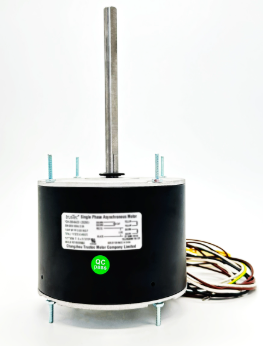

The condenser fan motor is the workhorse of any air conditioning or refrigeration system. It operates in extreme heat, drives air through tightly packed coils, and must start reliably thousands of times over its service life. When the component in question is a Wholesale 48YZ Condenser Fan Motor, understanding its unique design features and bulk purchasing advantages becomes critical for HVAC professionals, facility managers, and equipment distributors.
At Trustec, we take pride in supplying high-performance electric motors for commercial and residential cooling applications. Through our platform at www.trustecgroup.com, we offer a comprehensive selection of 48YZ condenser fan motors engineered for durability, energy efficiency, and drop-in compatibility with a wide range of condenser units. This article provides an in-depth look at the 48YZ platform, its applications, and why wholesale purchasing from a trusted supplier makes business sense.
What Does the 48YZ Designation Mean?
The “48YZ” designation carries specific meaning within NEMA (National Electrical Manufacturers Association) motor classifications. Let us break it down:
48 refers to the frame size. A NEMA 48-frame motor has standardized mounting dimensions, including the distance from the mounting base to the center of the shaft, the bolt hole pattern, and the shaft diameter (typically 1/2 inch). This standardization ensures that a 48YZ motor will physically fit into condenser units designed for this frame class.
Y often indicates a specific shaft configuration or a resilient mounting ring design. In many 48YZ motors, the “Y” suffix points to a extended shaft length or a special keyway dimension that matches certain OEM condenser fan blades.
Z typically denotes an electrical characteristic, such as a particular winding configuration, a built-in thermal protector, or a capacitor type. When combined as “YZ,” the suffix suggests a motor designed for maximum application flexibility—often reversible rotation, multiple mounting positions, and broad voltage tolerance.
In practical terms, the 48YZ condenser fan motor is built to replace a wide array of original equipment manufacturer (OEM) motors across residential split systems, light commercial rooftop units, and refrigeration condensing units.
Key Technical Specifications of a Quality 48YZ Motor
When evaluating wholesale 48YZ condenser fan motors, the following specifications determine compatibility and long-term reliability:
Horsepower Ratings
Common horsepower options for 48YZ motors range from 1/4 HP through 3/4 HP. The correct horsepower depends on the fan blade diameter, blade pitch, and the static pressure of the condenser coil. Under-sizing leads to overheating; over-sizing wastes energy and may cause excessive airflow noise.
Speed Capabilities
Most 48YZ motors are available in single-speed configurations at 825 RPM, 1075 RPM, or 1100 RPM. Multi-speed versions also exist, allowing technicians to select the appropriate speed during installation. Variable-speed electronically commutated motor (ECM) versions of the 48YZ platform are also available for high-efficiency applications.
Voltage Configurations
A quality wholesale 48YZ condenser fan motor lineup includes 115V (single-phase) for residential units, 208-230V for light commercial systems, and 460V (three-phase) for industrial cooling equipment. Dual-voltage motors (115/230V) offer maximum flexibility for contractors who service diverse job sites.
Rotation Direction
The 48YZ motor is almost always field-reversible. By changing the connection of specific leads (typically black and yellow), the motor can be set for clockwise or counterclockwise rotation as viewed from the shaft end. This feature eliminates the need to carry separate clockwise and counterclockwise motor inventories.
Enclosure and Protection
The standard enclosure for a 48YZ condenser fan motor is TEAO (Totally Enclosed Air-Over). This design protects the windings from moisture, dust, and debris while relying on the condenser fan’s airflow for cooling. Class B or Class F insulation systems are common, with Class F offering higher temperature tolerance for demanding applications.
Thermal Overload Protection
Automatic reset thermal overload protectors are integrated into quality 48YZ motors. These devices sense winding temperature and disconnect power if the motor exceeds safe operating limits. Once the motor cools, the protector resets automatically, preventing nuisance service calls while safeguarding against burnout.
Why Choose the 48YZ for Condenser Fan Applications?
Not all 48-frame motors are created equal. The 48YZ variant offers several specific advantages for condenser fan duty:
Resilient Mounting System: The Y configuration typically includes resilient rings or rubber grommets that isolate vibration. This reduces noise transmitted to the condenser cabinet and extends bearing life.
Sealed Bearings: Quality 48YZ motors use double-sealed ball bearings pre-packed with high-temperature grease. Unlike sleeve bearings, ball bearings handle the vertical shaft orientation common in condenser fans without premature wear.
Corrosion-Resistant Construction: The motor shell and hardware receive anti-corrosion treatments suitable for outdoor installations in coastal or industrial environments.
Broad Compatibility: The 48YZ motor cross-references to dozens of OEM part numbers from major HVAC brands, making it a favorite among wholesale buyers who want to reduce inventory complexity.
Common Applications for the 48YZ Condenser Fan Motor
The versatility of the 48YZ platform makes it suitable for numerous cooling systems:
Residential Air Conditioning Condensers: Units from 1.5 to 5 tons from brands such as Carrier, Trane, Lennox, Rheem, and Goodman frequently use 48-frame motors. The YZ variant directly replaces many OEM-specific designs.
Light Commercial Rooftop Units (RTUs): RTUs in the 3 to 15 ton range often incorporate 48YZ condenser fan motors for their outdoor fan sections.
Refrigeration Condensers: Walk-in coolers, reach-in freezers, and commercial refrigeration racks use 48YZ motors for their remote condensing units.
Heat Pump Outdoor Sections: Because heat pumps run in both heating and cooling modes, the condenser fan motor operates year-round. A robust 48YZ motor handles this continuous duty.
Packaged Terminal Heat Pumps (PTHPs): Some commercial PTAC and PTHP units rely on compact 48YZ motors for condenser airflow.
Signs of Failure in a 48YZ Condenser Fan Motor
For maintenance teams and contractors, recognizing early warning signs prevents costly compressor failures and customer complaints:
Slow or Difficult Starting: The fan takes more than a few seconds to reach full speed or requires a physical push to begin rotating. This often points to a failing start capacitor or worn bearings.
Loud Operating Noises: Grinding, rattling, or high-pitched squealing indicates bearing degradation or foreign material inside the motor housing.
Frequent Thermal Trips: A motor that runs for 10–15 minutes, stops, then restarts repeatedly is likely overheating. Causes include low refrigerant charge (reducing condenser airflow), a dirty coil, or a failing motor winding.
Visible Oil Leakage: Oil stains around the shaft or end bells suggest that bearing seals have failed, and bearing lubrication is escaping.
Rust or Corrosion on the Shaft: Heavy rust can seize the shaft to the bearing inner race, causing locked rotor conditions.
Installation Best Practices for Wholesale 48YZ Motors
To maximize the service life of your 48YZ condenser fan motors, follow these professional guidelines:
Confirm Frame Dimensions: Even within the 48YZ class, verify shaft length (typically 3.5 to 6 inches), shaft diameter (1/2 inch is standard), and mounting hole spacing before installation.
Select the Correct Run Capacitor: Match the capacitor microfarad rating precisely to the motor’s specifications. An incorrect capacitor reduces starting torque and increases operating current.
Position the Fan Blade Correctly: The blade hub should be flush with or slightly recessed from the shaft end, depending on OEM specifications. Improper blade height reduces airflow and can cause the motor to overload.
Verify Rotation Direction: Briefly energize the motor without the fan blade installed (or with the blade loosely attached) to confirm correct rotation. Reverse leads if needed before final assembly.
Secure All Electrical Connections: Use weatherproof connectors and dielectric grease to prevent moisture ingress. Loose connections cause voltage drop and heat generation at terminals.
Why Trustec for Wholesale 48YZ Condenser Fan Motors?
Choosing Trustec as your wholesale supplier delivers tangible benefits:
Consistent Quality: Every motor meets published specifications for horsepower, speed, voltage, and thermal protection.
Competitive Pricing: Volume discounts reward contractors and distributors who stock multiple units.
Fast Fulfillment: Large inventory ensures that backorders are rare, and urgent orders ship promptly.
Technical Support: Our team assists with cross-referencing and application questions.
Conclusion
The Wholesale 48YZ Condenser Fan Motor represents an ideal balance of standardization, durability, and application flexibility. Whether you are maintaining residential AC systems, commercial rooftop units, or refrigeration condensing equipment, this motor family delivers the performance you need.
Trustec stands ready as your wholesale partner. We combine quality products, fair pricing, and knowledgeable support to keep your projects moving forward. Visit www.trustecgroup.com to explore our complete 48YZ motor catalog and request a bulk quote today.
