A heat pump is unique among HVAC systems because it provides both heating and cooling using the same outdoor unit. At the heart of this year-round operation is the heat pump condenser fan motor. Unlike a standard air conditioner that only runs during warm months, a heat pump’s outdoor fan motor operates in summer and winter, making it one of the most hardworking components in your entire home comfort system.
At Trustec, we help homeowners, facility managers, and HVAC professionals understand the critical role of the heat pump condenser fan motor. In this comprehensive guide, we explain how this motor works, how to recognize early signs of failure, how to select the right replacement, and why quality matters for defrost cycles and overall efficiency.

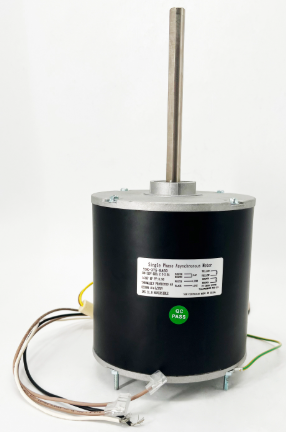

The heat pump condenser fan motor is an electric motor mounted inside the outdoor unit of a heat pump system. Its job changes depending on the mode of operation:
Cooling Mode (Summer): The motor spins the fan to pull outdoor air across the condenser coil, releasing heat from the refrigerant—exactly like a standard air conditioner.
Heating Mode (Winter): The motor continues to operate but with a critical difference. The outdoor coil becomes the evaporator, absorbing heat from cold outdoor air. The fan motor forces air across this cold coil to extract thermal energy, which is then compressed and sent indoors.
Defrost Mode (Winter): During defrost cycles, the fan motor temporarily stops. This allows the outdoor coil to heat up rapidly and melt frost or ice without cold air blowing across it.
Because the heat pump condenser fan motor cycles on and off even in freezing temperatures, it faces mechanical stresses that a standard AC condenser fan motor does not. Seals, bearings, and windings must withstand thermal shock, moisture, and ice formation.
Understanding the operational sequence helps in accurate troubleshooting.
Cooling Cycle:
The reversing valve directs hot gas to the outdoor coil.
The thermostat calls for cooling, closing the contactor.
The heat pump condenser fan motor starts immediately with the compressor.
Ambient air passes over the outdoor coil, removing heat from the refrigerant.
Heating Cycle:
The reversing valve redirects hot gas to the indoor coil.
The outdoor coil becomes cold (as low as -10°F to -20°F).
The heat pump condenser fan motor pulls outdoor air across the freezing outdoor coil.
Even very cold air contains some heat energy, which the refrigerant absorbs.
Defrost Cycle:
A defrost control board senses ice buildup on the outdoor coil.
The reversing valve switches to cooling mode, sending hot gas outdoors.
The heat pump condenser fan motor is deliberately stopped by the control board.
The outdoor coil warms up, melting frost within 5–10 minutes.
The fan motor restarts automatically once defrost ends.
This constant mode switching places unique demands on the motor, particularly its starting capacitor, internal insulation, and bearing lubrication.
Because a heat pump runs year-round, motor failures can occur in any season. Watch for these warning signs:
If the compressor runs but the fan blades remain stationary, the motor may have failed. However, remember that during defrost cycles, the control board intentionally stops the fan. Wait 10–15 minutes. If the fan still does not spin after the unit has fully defrosted, suspect a bad motor, failed capacitor, or faulty defrost board.
Does the heat pump condenser fan motor start, run for several minutes, then stop while the compressor continues? This behavior usually indicates an internal thermal overload protecting a failing motor. As bearings wear or insulation breaks down, the motor overheats and shuts itself off. Once it cools, it restarts—only to fail again soon after.
While some frost is normal in heating mode, excessive ice buildup that does not melt during defrost cycles can point to a slow or dead fan motor. If the motor rotates too slowly or not at all, the outdoor coil cannot absorb enough heat. The coil temperature drops below freezing, and ice accumulates rapidly, eventually forming a solid block.
Grinding or screeching: Worn bearings inside the motor housing.
Loud hum with no spin: Failed start capacitor or seized bearings.
Rattling or metallic clicking: Loose fan blade hub or debris inside the fan cage.
Squealing on startup: Deteriorating bearing surfaces or lack of lubrication.
If the heat pump condenser fan motor spins at the wrong speed due to failing windings or a weak run capacitor, airflow across the coil drops significantly. In cooling mode, this reduces heat rejection. In heating mode, it reduces heat absorption. The result is lukewarm air from your vents, longer run times, and higher energy bills.
If you see ice on the outdoor coil but the fan continues spinning rapidly, the defrost board may have failed—but also check the motor. Some defrost boards use current sensing to detect fan motor operation. If the motor draws incorrect amperage, the board may never initiate defrost, leading to ice buildup and eventual system shutdown.
Replacing this motor is not identical to replacing a standard AC fan motor. Follow these Trustec guidelines:
1. Match Original Specifications Exactly
Because the heat pump condenser fan motor operates in subfreezing conditions, using a motor with improper insulation class can lead to rapid failure. Look for insulation class F or higher, rated for low-ambient operation.
2. Verify Rotation Direction
Heat pump outdoor fans typically blow upward (vertical discharge). Standard rotation is counterclockwise when viewed from above. However, some brands use clockwise rotation. Always check the original motor’s rotation arrow or consult the wiring diagram.
3. Choose Sealed Ball Bearings
Sleeve-bearing motors are cheaper but fail quickly in heat pump applications due to cold-start stresses and year-round operation. Always select a replacement motor with permanently sealed ball bearings.
4. Consider the Run Capacitor
A weak run capacitor is a common mimic of a failing motor. Before replacing any heat pump condenser fan motor, have a technician test the capacitor’s microfarad rating. Replace any capacitor showing more than 10% variance from its labeled rating.
The heat pump condenser fan motor does not operate independently. It communicates with the defrost control board. When replacing the motor, ensure that:
The new motor’s amperage draw is within the defrost board’s rated range.
The motor starts and stops exactly as commanded by the board.
No error codes related to fan speed or current sensing appear after installation.
Some modern heat pumps use ECM (electronically commutated) condenser fan motors. These variable-speed motors require a specific replacement from the original manufacturer or a certified universal ECM motor. Never replace an ECM fan motor with a standard PSC (permanent split capacitor) motor.
Given the year-round duty cycle, preventive maintenance is essential.
Keep the Outdoor Coil Clean: Dirty coils in winter lead to ice buildup and longer defrost cycles, wearing out the fan motor. Clean the coil at least twice per year—once before cooling season and once before heating season.
Clear Snow and Ice: Do not allow snow to pile up against the outdoor unit. The fan needs clear airflow from all sides. Remove ice from the fan grille carefully without damaging the blades.
Check the Run Capacitor Annually: Have a technician test the capacitor every fall before heating season begins. A weak capacitor increases starting amps and reduces motor life.
Listen Seasonally: Walk past your outdoor unit once per month in both summer and winter. Any new noise is worth investigating before it leads to complete failure.
Install a Crankcase Heater (Cold Climates): In regions with extended freezing temperatures, adding a crankcase heater to the compressor helps, but also consider a low-ambient fan cycling control to reduce stress on the motor during extreme cold.
At Trustec (www.trustecgroup.com), we recognize that a failed heat pump condenser fan motor is an emergency regardless of the outdoor temperature. Our motors are specifically engineered for the demands of year-round operation. Every Trustec motor features:
Class F or H insulation to withstand temperature extremes from -20°F to 120°F.
Double-sealed ball bearings that never require lubrication and resist moisture ingress.
Thermal overload protection with automatic reset for safety.
Heavy-gauge copper windings for reliable starting torque even in subfreezing conditions.
Universal mounting brackets that fit most major heat pump brands.
The heat pump condenser fan motor is one of the hardest working components in any home comfort system. Unlike a standard AC motor that rests all winter, this motor must perform efficiently in snow, rain, and freezing temperatures. Ignoring the warning signs—slow spinning, unusual noises, ice buildup, or intermittent operation—leads to compressor failure, costly repairs, and loss of heating when you need it most.
By recognizing early symptoms and choosing a high-quality replacement from Trustec, you protect your heat pump investment, maintain energy efficiency, and ensure reliable comfort in every season.
