When it comes to maintaining smaller air conditioning units, refrigeration systems, and heat pumps, the 1/6 HP Condenser Fan Motor is an essential yet often overlooked component. While larger horsepower motors dominate commercial applications, the 1/6 HP motor is the perfect fit for compact condensers, window units, walk-in coolers, and residential systems with modest cooling demands. At Trustec, we understand that using the correct motor size is just as important as choosing the right speed or voltage. An oversized motor wastes energy and creates excessive noise, while an undersized motor overheats and fails prematurely. The 1/6 HP rating offers the ideal balance for light-duty applications.
The term “1/6 HP” refers to the motor’s power output—one-sixth of a horsepower, or approximately 124 watts of mechanical output. In practical terms, a 1/6 HP condenser fan motor provides enough torque to turn a relatively small fan blade (typically 14 to 20 inches in diameter) at speeds ranging from 825 RPM to 1625 RPM, depending on the specific motor design.
Despite its modest power rating, a 1/6 HP motor is perfectly capable of moving sufficient air across a condenser coil for systems up to approximately 18,000 BTU (1.5 tons) of cooling capacity. These motors are most commonly found in:
Small residential air conditioning condensers (1 to 1.5 tons)
Window air conditioning units
Portable air conditioners
Walk-in cooler condenser units
Reach-in refrigerators and freezers
Ice machine condensers
Dehumidifiers
Small heat pump outdoor units
Because of their lower power draw, 1/6 HP motors are also popular in solar-assisted cooling systems and other energy-conscious applications.
Using the correct horsepower motor is critical for several reasons:
Electrical Efficiency: A 1/6 HP motor draws significantly less current than a 1/3 HP or 1/2 HP motor. Installing an oversized motor increases your utility bill unnecessarily and may require heavier gauge wiring.
Thermal Management: A properly sized motor runs within its designed temperature range. Oversized motors can actually run cooler, but they often cause excessive airflow that disturbs the condenser coil’s heat transfer characteristics. Undersized motors run hot and frequently trip their internal overload protectors.
Noise Control: Larger motors produce more mechanical and aerodynamic noise. A 1/6 HP motor operating at its intended speed is noticeably quieter than a higher-horsepower motor throttled down or running too fast.
Fan Blade Compatibility: Fan blades are engineered for specific torque and speed ranges. A 1/6 HP motor matches the starting torque requirements of small-diameter blades. A more powerful motor may shear the blade hub or cause dangerous vibration.
When sourcing a replacement 1/6 HP Condenser Fan Motor, pay close attention to these parameters:
RPM (Speed): Common speeds include 825 RPM, 1075 RPM, 1500 RPM, and 1625 RPM. The correct speed depends on the original equipment’s fan blade pitch and diameter. A 1/6 HP motor at 1625 RPM moves less air per revolution than a 1/3 HP motor at 1075 RPM but may be correct for high-static pressure applications.
Voltage: Most 1/6 HP condenser fan motors are designed for 115V single-phase power, though 208-230V versions exist for larger residential systems. Always match the voltage to your unit’s supply.
Frame Size: The most common frame size for 1/6 HP motors is 48Y, though some older units use 42 frames. Frame size determines mounting hole spacing and shaft diameter, typically 1/2 inch or 5/8 inch.
Enclosure Type: For outdoor condenser applications, a totally enclosed air-over (TEAO) or open drip-proof (ODP) enclosure with weather shielding is required. Many 1/6 HP motors used in indoor refrigeration applications are open designs but must be kept dry.
Rotation: Reversible rotation is highly desirable because condenser fan motors can be installed in either clockwise or counterclockwise configurations depending on the unit design.
Capacitor Requirements: Most 1/6 HP condenser fan motors use a run capacitor between 3 and 7.5 microfarads (mfd). Some smaller motors are capacitor-start or even split-phase designs that do not use a capacitor at all.
The versatility of the 1/6 HP motor makes it suitable for a surprising range of equipment:
Residential Air Conditioners: Many older or smaller central air conditioners (1.5 tons or less) use a single 1/6 HP condenser fan motor. These units are still common in apartments, small homes, and mild climates.
Walk-in Cooler Condensers: Small to medium walk-in coolers often use a 1/6 HP motor to pull air across the condenser coil. Because coolers run year-round, using a smaller, more efficient motor reduces long-term energy costs.
Reach-in Refrigerators and Freezers: Commercial kitchen equipment frequently relies on 1/6 HP condenser fan motors. These units are typically mounted underneath or behind the cabinet and require quiet, vibration-free operation.
Ice Machines: Both modular and self-contained ice makers use small condenser fan motors. The 1/6 HP size is common in machines producing 200 to 500 pounds of ice per day.
Dehumidifiers: Whole-house and commercial dehumidifiers often use a 1/6 HP motor to cool the refrigerant condenser while moving air across the evaporator coil.
Wine Coolers and Beverage Centers: High-end cooling appliances require precise temperature control and low noise, making the 1/6 HP motor an excellent choice.
Even reliable motors eventually wear out. Look for these warning signs:
Unusual noises: Clicking, grinding, or squealing indicates bearing failure.
Slow or intermittent start: The fan motor hums but fails to rotate, or rotates very slowly.
Frequent thermal tripping: The motor runs briefly, stops, then restarts after cooling down.
Visible rust or corrosion: Moisture has penetrated the motor housing.
Burning smell: Insulation breakdown or winding short circuits.
Fan blade wobble: Usually caused by worn bearings or a bent motor shaft.

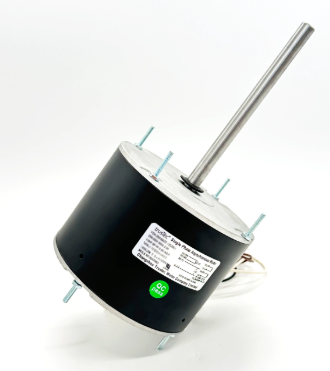

Trustec has developed a line of 1/6 HP condenser fan motors that exceed OEM specifications while remaining affordable for service contractors and property owners. Key features include:
Precision-Ground Shaft: Ensures perfect alignment with the fan blade hub, eliminating wobble and extending bearing life.
High-Quality Copper Windings: Pure copper windings run cooler and last longer than aluminum alternatives. Trustec uses Class B (130°C) or Class F (155°C) insulation for added thermal protection.
Double-Sealed Ball Bearings: Unlike sleeve bearings, ball bearings handle both horizontal and vertical mounting orientations. Trustec motors use sealed, pre-lubricated ball bearings rated for 50,000 hours of operation.
Automatic Thermal Overload Protection: The internal overload switch interrupts power if the motor exceeds safe operating temperature. Once cooled, the motor automatically resets, preventing permanent damage.
Reversible Rotation: Simple lead changes allow the motor to spin clockwise or counterclockwise, reducing inventory needs.
Compact Design: Trustec’s 1/6 HP motors fit into tight condenser compartments where larger motors cannot be installed.
Replacing a 1/6 HP condenser fan motor requires careful attention to detail:
Disconnect power to the condenser unit at the disconnect box and circuit breaker.
Remove the top grille and carefully extract the fan blade. Mark the blade’s position on the shaft using a permanent marker.
Label all wires before disconnecting the old motor. Take a clear photograph for reference.
Remove the old motor from its mounting bracket. Clean any rust or debris from the bracket.
Inspect the capacitor. Even if the old capacitor tests good, replace it with a new one of the same microfarad rating.
Install the new Trustec motor using the original mounting hardware. Do not overtighten bolts.
Mount the fan blade at exactly the same depth as before. Verify blade clearance inside the coil shroud – there should be at least 1/4 inch between the blade tips and any stationary surface.
Connect the wiring following the diagram on the Trustec motor label. Double-check rotation direction.
Test run the motor with the top grille still removed. Listen for unusual noises or vibration.
Reinstall the grille and verify that the fan does not rub against any guard wires.
Symptom | Likely Cause | Solution |
|---|---|---|
Motor hums but won’t start | Failed start or run capacitor | Replace capacitor |
Runs backward | Incorrect lead connection | Reverse specific leads per diagram |
Excessive vibration | Unbalanced or bent fan blade | Replace fan blade |
Motor gets very hot | Blocked condenser coil or incorrect HP | Clean coil thoroughly |
Intermittent operation | Thermal overload tripping | Check for binding or low voltage |
The 1/6 HP Condenser Fan Motor may be small, but it plays a vital role in thousands of cooling systems across residential and light commercial markets. Choosing the correct horsepower, speed, frame size, and voltage ensures that your air conditioner, refrigerator, or dehumidifier runs quietly, efficiently, and reliably.
Trustec’s commitment to quality engineering means that every 1/6 HP motor we produce delivers dependable service year after year. Whether you are a technician servicing a walk-in cooler or a homeowner repairing a window AC unit, Trustec provides the exact-fit solution you need without compromise.
