In the world of HVAC systems, the condenser fan motor is a critical component that ensures efficient heat exchange and optimal system performance. Among the various motor frame sizes available in the industry, the 48 frame condenser fan motor stands out as one of the most widely used and versatile options. When standard off-the-shelf motors fall short of meeting specific application requirements, a custom 48 frame condenser fan motor becomes the ideal solution for engineers, equipment manufacturers, and maintenance professionals seeking precision, reliability, and long-term operational efficiency.

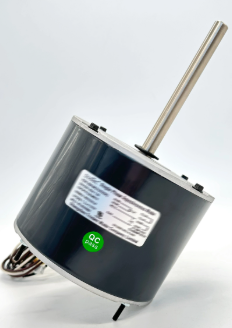

The term “48 frame” refers to a NEMA (National Electrical Manufacturers Association) standard that defines the physical dimensions and mounting characteristics of the motor. A NEMA 48 frame motor typically has a body diameter of approximately 5‑5/8 inches (about 5.6 inches) and a 1/2‑inch diameter shaft. This compact yet robust frame size is designed for fractional horsepower applications, commonly ranging from 1/8 HP up to 1 HP or more, and is extensively used in residential and light commercial HVAC condenser units, heat pumps, and refrigeration systems.
Condenser fan motors are specifically designed to drive the fan blades that draw ambient air across the condenser coil, facilitating the transfer of heat from the refrigerant to the outside air. This process transforms high‑pressure gaseous refrigerant into a liquid state, enabling the refrigeration cycle to continue. Without a properly functioning condenser fan motor, the entire HVAC system would suffer from reduced cooling capacity, increased energy consumption, and premature component failure.
While standard 48 frame motors are readily available from numerous manufacturers, many HVAC applications demand something more than what a generic product can offer. This is where customization becomes not just a luxury, but a necessity.
Custom 48 frame condenser fan motors allow equipment designers and system integrators to tailor every critical parameter to the exact needs of their application. Instead of compromising on performance or forcing an ill‑fitting motor into a system, customers can specify voltage requirements, rotational speed, horsepower output, shaft configuration, insulation class, bearing type, thermal protection mechanisms, and mounting arrangements. A motor that perfectly matches the system’s operating conditions will run cooler, consume less energy, last longer, and require less maintenance than a one‑size‑fits‑all alternative.
When engineers and procurement specialists partner with a professional motor manufacturer for custom solutions, a wide range of design parameters can be adjusted to meet specific performance criteria.
Voltage and Frequency. Custom motors can be designed to operate on virtually any power supply configuration, including 115V, 208‑230V, 460V, or even 50Hz or 60Hz power grids. For international OEM customers, the ability to switch between 50Hz and 60Hz operation without performance degradation is often a critical requirement.
Horsepower and RPM. The output power of a 48 frame motor can be scaled from fractional levels up to 1.5 HP or higher, depending on the design and materials used. Rotational speeds can be customized across a broad spectrum, from slower 825‑920 RPM models for noise‑sensitive applications up to 1,075 RPM or even 1,725 RPM for higher airflow demands. Multi‑speed designs are also available, allowing the motor to adapt its output to varying cooling loads.
Shaft Design. The shaft is arguably one of the most frequently customized features. While a standard 1/2‑inch diameter shaft is common, the length, flat configurations, keyways, and whether the shaft extends from one or both ends of the motor can all be tailored to fit specific fan blade assemblies and mounting systems.
Enclosure Type. Condenser fan motors are exposed to the outdoor environment, including rain, dust, insects, and extreme temperatures. Totally Enclosed Air‑Over (TEAO) enclosures provide excellent protection against moisture and debris, while Open Air‑Over (OAO) designs offer lower cost for applications where exposure risks are minimal. Custom enclosures can be specified with enhanced sealing, drain plugs, or corrosion‑resistant coatings.
Bearing Systems and Thermal Protection. Ball bearings are preferred for demanding applications because they handle heavier loads and offer longer service life, while sleeve bearings provide quieter operation at lower cost. Custom motors can be equipped with automatic thermal overload protection that cuts power to the motor when internal temperatures exceed safe limits, preventing catastrophic failure.
Understanding the standard specifications of a 48 frame motor is essential before embarking on a custom design project. The 48 frame designation indicates a motor with a body diameter of 5‑5/8 inches and a shaft diameter of 1/2 inch. However, it is worth noting that variations such as 48Y and 48Z frames exist, which may feature different mounting hole patterns or shaft extensions. For example, some 48Y frame motors utilize the same bolt circle pattern as a 56 frame, providing greater flexibility in retrofitting applications.
Typical electrical characteristics for a 48 frame condenser fan motor include single‑phase operation, permanent split capacitor (PSC) design for energy efficiency, and Class B or Class F insulation rated for ambient temperatures up to 60°C to 70°C. The motor is designed for continuous duty and can be mounted in virtually any orientation—vertical shaft up, vertical shaft down, or horizontal—depending on the specific mounting configuration.
Custom 48 frame condenser fan motors are employed across a diverse range of industries and applications. Original equipment manufacturers (OEMs) producing residential air conditioning systems rely on these motors to meet strict performance, noise, and efficiency targets. Commercial refrigeration equipment manufacturers integrate custom 48 frame motors into walk‑in coolers, refrigerated display cases, and ice‑making machines. Heat pump systems, which require highly efficient and reliable fan motors to operate year‑round, also benefit significantly from custom‑tailored designs.
In addition to OEM applications, custom 48 frame motors are frequently used in replacement and retrofit scenarios. When a legacy system uses an obsolete motor model, a custom replacement can be engineered to match the original mounting and electrical characteristics perfectly, avoiding costly system modifications.
A truly successful custom 48 frame condenser fan motor begins with a manufacturer that possesses both engineering expertise and production capability. Professional manufacturers in this space offer comprehensive design, prototyping, testing, and mass production services. They conduct thorough performance testing at various voltage and load conditions, verify noise and vibration characteristics, and validate thermal performance before releasing motors to customers.
Advanced manufacturers work closely with clients to understand the specific operating environment—whether it involves extreme temperatures, high humidity, corrosive atmospheres, or demanding duty cycles. This collaborative approach ensures that the final product not only meets the written specifications but also delivers reliable performance under real‑world conditions.
The 48 frame condenser fan motor has earned its place as a workhorse component in the HVAC industry, valued for its compact size, versatility, and reliable performance. However, when standard catalog products cannot deliver the precise combination of power, speed, mounting configuration, and environmental protection required for a specific application, a custom solution becomes indispensable.
By partnering with an experienced motor manufacturer that understands the nuances of condenser fan motor design and offers full customization capabilities, engineers and OEM buyers can achieve the perfect balance of performance, efficiency, and longevity. Whether the goal is to reduce energy consumption, minimize downtime, or optimize system performance, a custom 48 frame condenser fan motor represents a smart, future‑focused investment in HVAC system reliability.
