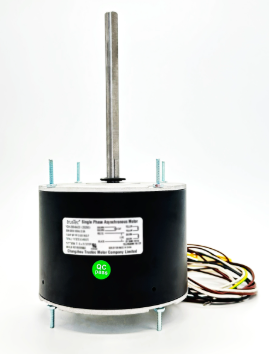

In the HVAC and refrigeration industries, precision matters. Every component must work in harmony to achieve efficient heat transfer, reliable operation, and long service life. Among the many specifications that define a condenser fan motor, the physical frame size is one of the most critical. The 5.6 inch condenser fan motor —referring to a motor with a body diameter of 5.6 inches—represents a standard dimension widely used in residential and light commercial cooling equipment. However, when catalog products cannot meet the exact requirements of a specific application, a custom 5.6 inch condenser fan motor becomes the optimal solution for engineers, OEMs, and maintenance professionals seeking a perfect match.
The term “5.6 inch” describes the outside diameter of the motor’s stator or housing. In the NEMA (National Electrical Manufacturers Association) frame system, a motor with a 5.6‑inch diameter corresponds to the popular NEMA 48 frame (and its variations such as 48Y, 48YZ). The 5.6 inch dimension has become an industry standard because it offers an excellent balance between power output and compactness. A motor of this diameter can typically produce anywhere from 1/8 horsepower up to 1.5 horsepower, depending on the stack length (the axial length of the magnetic core).
Condenser fan motors with a 5.6‑inch frame are found in countless applications: residential central air conditioning condensers, heat pumps, commercial condensing units for walk‑in coolers and freezers, rooftop HVAC systems, refrigeration display cases, and many other cooling devices. Their relatively small footprint allows them to fit into tight condenser compartments while still delivering adequate airflow across the condenser coil.
At first glance, a standard 5.6‑inch frame motor appears to be a commodity product. Many manufacturers offer off‑the‑shelf versions with common horsepower ratings, speeds, and electrical characteristics. However, HVAC equipment is not always designed around standard motors. Large OEMs often specify custom shaft lengths, unique mounting hole patterns, special thermal protectors, or non‑standard terminal box orientations to differentiate their products or to fit proprietary fan blade designs.
When a standard 5.6‑inch motor is used in such equipment, installation problems frequently arise. The shaft may be too long or too short for the fan blade hub. The mounting holes may not align with the equipment chassis, requiring field drilling or adapter plates. The electrical connection may face the wrong direction, making wiring difficult or unsafe. The motor may run at the wrong speed, causing insufficient airflow or excessive noise. In some cases, a standard motor may physically fit but operate at a higher temperature than the original, leading to premature failure.
A custom 5.6‑inch condenser fan motor eliminates these issues by being engineered specifically for the target equipment.
When working with a manufacturer that specializes in custom motors, virtually every aspect of the 5.6‑inch frame motor can be tailored to the application. The following parameters are among the most frequently customized.
Mechanical Dimensions. While the 5.6‑inch diameter is fixed, the overall length of the motor (stack height) can be adjusted to achieve different power outputs. The mounting plate pattern—the number of mounting holes, their diameter, and their positions on the bolt circle—can be customized to match any OEM chassis. Some applications require through‑bolts, while others use threaded studs or resilient mounting rings.
Shaft Specifications. The standard shaft diameter for a 5.6‑inch frame motor is typically 1/2 inch, but other diameters can be specified. Shaft length, flat configuration, keyways, threads, and whether the shaft extends from one end (single shaft) or both ends (double shaft) are all customizable. For example, a motor used in a tight condenser compartment may require a shorter shaft to avoid interference with surrounding components.
Electrical Performance. Custom motors can be wound for any voltage commonly used in HVAC applications, including 115V, 208‑230V, 277V, 460V, and dual‑voltage designs. Frequency options include 60 Hz (standard in North America), 50 Hz (common in many other regions), or 50/60 Hz designs that provide consistent performance regardless of line frequency. Single‑phase permanent split capacitor (PSC) designs are most common, but electronically commutated motor (ECM) technology, which offers higher efficiency and variable speed control, can also be specified.
Horsepower and Speed. Power output can be precisely tailored, from low‑fractional ratings such as 1/6 HP up to 1.5 HP or more within the 5.6‑inch frame envelope. Rotational speed is another critical variable. Common speeds for condenser fan motors include 825 RPM, 850 RPM, 1,075 RPM, 1,140 RPM, and 1,725 RPM, but custom speeds are readily achievable through special winding designs. Multi‑speed motors, offering two or three discrete speeds, allow the fan to adapt to varying cooling loads.
Insulation and Thermal Management. Standard insulation is usually Class B (130°C), but Class F (155°C) or Class H (180°C) insulation can be specified for high‑temperature environments such as rooftop condensers in hot climates. Internal thermal protection is essential for preventing motor burnout. Options include automatic reset thermal overload protectors (the most common), manual reset protectors, or no internal protection where an external overload relay is used. Some custom motors incorporate thermistors or embedded temperature sensors for advanced monitoring.
Enclosure and Environmental Protection. Most outdoor condenser fan motors use a Totally Enclosed Air‑Over (TEAO) enclosure, which protects internal components from rain, dust, and insects while relying on the fan’s airflow for cooling. For corrosive environments—such as coastal areas with salt spray or chemical plants—additional protection can be added. Epoxy‑encapsulated windings, stainless steel hardware, and special corrosion‑resistant paint systems (e.g., electrodeposition coatings) significantly extend motor life.
Bearing Selection. Long service life depends heavily on bearing quality. Precision ball bearings are standard in quality 5.6‑inch motors. However, the grade, internal clearance, and lubricant type can be customized. High‑temperature grease, sealed bearings (to prevent contamination), or even stainless steel bearings for extremely corrosive environments are available options. For noise‑sensitive applications (e.g., residential equipment near bedrooms), specially selected low‑noise bearings can reduce operating sound levels.
Termination and Wiring. The location and orientation of the terminal box or connector can be customized to align with equipment access panels. Lead wire length, gauge, color coding, and terminal type (ring, spade, or quick‑connect) can all be specified to simplify field installation and reduce wiring errors.
Custom 5.6‑inch condenser fan motors serve a wide range of industries and use cases. Original equipment manufacturers (OEMs) producing residential and light commercial HVAC equipment frequently require custom motors to accommodate unique fan blade designs, proprietary chassis layouts, or specific agency certifications (UL, CE, etc.). By standardizing on a custom motor tailored to their equipment, OEMs reduce assembly time, improve product reliability, and enhance brand differentiation.
The aftermarket replacement sector is another major user of custom 5.6‑inch motors. When an OEM discontinues a specific motor model, wholesalers and service organizations often find themselves unable to source an exact replacement. A custom motor built to match the original’s shaft, mounting, and electrical characteristics provides a true drop‑in solution, eliminating the need for field modifications and preserving equipment certifications.
Specialty cooling equipment—such as medical refrigeration units, telecommunications shelter cooling systems, ice machines, and beverage dispensers—often has unique size constraints or performance requirements that cannot be met by standard motors. Custom 5.6‑inch motors designed for these niche applications deliver reliable performance in demanding environments.
A reputable motor manufacturer follows a structured process when producing custom 5.6‑inch condenser fan motors. It begins with a detailed engineering consultation where the customer provides specifications: required horsepower, speed, voltage, frame mounting dimensions, shaft details, enclosure type, thermal protection, and any environmental considerations. The manufacturer may request a sample of the original motor or detailed drawings of the equipment.
Using computer‑aided design (CAD) and electromagnetic simulation software, the manufacturer creates a winding configuration and mechanical layout that exactly meets the target performance. Prototype motors are built and subjected to rigorous testing, including thermal cycling, vibration analysis, dielectric strength testing, and accelerated life testing. Only after passing these tests does the motor move to full production. This systematic approach ensures that every custom motor performs reliably in its intended application.
The 5.6‑inch frame size has earned its place as a standard in the condenser fan motor industry because it offers an ideal combination of power capability and compact dimensions. From residential air conditioners to commercial refrigeration units, these motors perform essential work every day. However, when standard off‑the‑shelf motors cannot provide the precise shaft length, mounting pattern, electrical characteristics, or environmental protection required by a specific system, a custom 5.6‑inch condenser fan motor is the logical choice.
By partnering with an experienced manufacturer that offers full customization capabilities—including mechanical dimensions, electrical performance, insulation systems, bearings, enclosures, and terminations—customers can obtain a motor that installs without modification, operates at peak efficiency, and delivers years of trouble‑free service. Whether you are an OEM designing new equipment or a service professional seeking a perfect replacement, investing in a custom 5.6‑inch condenser fan motor is a decision that pays dividends in reduced downtime, lower energy costs, and enhanced system reliability.
