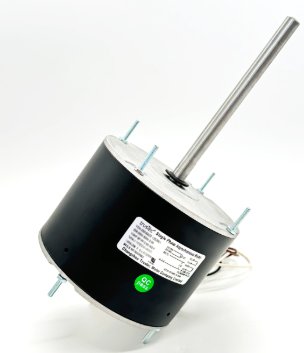

In the specialized world of HVAC and commercial refrigeration, selecting the correct condenser fan motor involves more than just matching horsepower and voltage specifications. The physical frame configuration, mounting hole pattern, shaft dimensions, and overall mechanical compatibility often determine whether a replacement motor will install seamlessly or require costly modifications. Among the various NEMA frame designations, the 48YZ condenser fan motor represents a particularly versatile and valuable variant. When off‑the‑shelf options fail to meet the unique demands of an application, a custom 48YZ condenser fan motor provides a precision‑engineered solution that delivers exact fit, optimal performance, and extended service life.
The NEMA (National Electrical Manufacturers Association) frame system uses numbers and letters to define the physical characteristics of electric motors. The base number “48” indicates a motor with a body diameter of approximately 5‑5/8 inches (about 5.6 inches) and a standard shaft diameter of 1/2 inch. These 48‑frame motors are commonly used in fractional horsepower applications, typically ranging from 1/8 HP to 1 HP, and are found extensively in residential air conditioning condensers, heat pumps, and light commercial refrigeration units.
The “Y” and “Z” suffixes provide additional specificity. The “Y” designation generally refers to a variation in the mounting hole pattern or bolt circle geometry. In many cases, a 48Y frame shares the same mounting dimensions as the larger NEMA 56 frame, allowing it to be bolted directly onto equipment originally designed for a 56‑frame motor while retaining the compact body of a 48‑frame. The “Z” suffix indicates yet another variation, often involving differences in shaft extension length, shaft flat configuration, or the presence of special features such as double‑ended shafts or custom pilot diameters.
When combined as 48YZ, this frame code describes a motor that offers enhanced mounting flexibility and shaft customization beyond the standard 48 or even 48Y variants. For engineers and maintenance professionals, understanding these nuances is key to selecting or designing the perfect motor for a given piece of equipment.
Thousands of standard 48YZ condenser fan motors are sold every year, and for many common applications, they work perfectly well. However, HVAC equipment manufacturers often introduce design changes to improve efficiency, reduce noise, or lower production costs. These changes may involve unique mounting bosses, non‑standard shaft lengths, special thermal protectors, or unusual terminal box orientations. A standard motor, even if it matches the frame size, may not align with the equipment’s mounting holes or may position the electrical connection in an inaccessible location.
Similarly, when repairing older equipment, the originally specified motor may have been discontinued years ago. Attempting to fit a modern standard motor into a legacy system often requires drilling new mounting holes, fabricating adapter plates, or modifying the fan blade assembly. These workarounds are time‑consuming, introduce potential points of failure, and may violate equipment certifications or safety standards. A custom 48YZ condenser fan motor eliminates these compromises by being built exactly to the required specifications.
The true power of a custom 48YZ condenser fan motor lies in the ability to adjust virtually every performance and physical attribute to match the target application. Below are the primary parameters that can be tailored.
Electrical Characteristics. Custom 48YZ motors can be wound for any standard voltage, including 115V, 208‑230V, 277V, 460V, or dual‑voltage configurations. Frequency options include 60 Hz for North American markets, 50 Hz for international use, or even 50/60 Hz designs that maintain consistent performance across both power grids. Phase options are typically single‑phase for condenser fan applications, using permanent split capacitor (PSC) or electronically commutated motor (ECM) technologies. However, three‑phase versions can also be produced for industrial equipment.
Power Output and Speed. Horsepower ratings can be specified across a wide range, from 1/6 HP up to 1.5 HP or more, depending on the stack length and winding design. Speed selections are equally flexible: common options include 825 RPM, 1,075 RPM, 1,140 RPM, and 1,725 RPM, but any speed within the motor’s design envelope can be achieved through custom winding. Multi‑speed motors, offering two or three discrete speeds, allow the fan to respond dynamically to system demands.
Shaft Customization. The 48YZ frame typically uses a 1/2‑inch diameter shaft, but the length, flat dimensions, keyway presence and size, and whether the shaft is threaded or smooth can all be customized. Some applications require a shaft that extends from both ends (double shaft), allowing a fan blade on one end and a cooling fan or encoder on the other. The “Z” suffix in 48YZ often implies a specific shaft variation, and custom orders can further refine this.
Mounting Configuration. The mounting bolt circle diameter, number of mounting holes, hole size, and pattern orientation are all customizable. Because the 48Y frame already offers compatibility with 56‑frame patterns, a custom 48YZ motor can be designed to match virtually any OEM mounting specification. Threaded studs, resilient rubber rings, or custom base plates can also be incorporated.
Insulation and Thermal Protection. Standard insulation is Class B (130°C), but Class F (155°C), Class H (180°C), or even higher temperature ratings can be specified for extreme environments. Thermal protection options include automatic reset overload protectors (most common), manual reset protectors, or no internal protection where external overload relays are used. Some custom motors also incorporate thermistors or RTD sensors for remote temperature monitoring.
Enclosure Type and Environmental Protection. Totally Enclosed Air‑Over (TEAO) is the preferred enclosure for most outdoor condenser fan motors, as it protects internal components from rain, dust, and insects while using the fan’s airflow for cooling. For harsh industrial environments, additional coatings such as epoxy‑encapsulated windings or stainless steel hardware can be added. Corrosion‑resistant paint systems, including electrodeposition coatings, significantly extend motor life in coastal or chemical plant installations.
Bearing Selection. Precision ball bearings are standard in quality condenser fan motors, but the grade, internal clearance, and lubricant type can be customized. High‑temperature grease, sealed bearings to prevent contamination, or even stainless steel bearings for corrosive environments are available. For extremely quiet applications, specially selected low‑noise bearings can be specified.
Connection and Termination. The location and orientation of the terminal box or connection plug can be customized to match equipment access panels. Lead length, wire gauge, terminal types (ring, spade, or quick‑connect), and color coding can all be specified to simplify field wiring and reduce installation errors.
Custom 48YZ condenser fan motors are used across numerous sectors. Original equipment manufacturers (OEMs) producing condensing units for residential and light commercial HVAC systems often require unique frame variations to differentiate their products or to accommodate proprietary fan blade designs. Aftermarket suppliers serving the replacement motor market rely on custom 48YZ motors to offer drop‑in replacements for discontinued OEM models, eliminating the need for field modifications.
Specialty cooling equipment—such as refrigerated beverage dispensers, ice machines, medical refrigeration units, and telecommunications shelter cooling systems—frequently demands custom 48YZ motors with non‑standard shaft lengths or unusual mounting patterns. Data center cooling systems, where fan motor failure can lead to overheating of servers, benefit from custom motors built with redundant thermal protection and extended life bearings.
When a motor manufacturer produces a custom 48YZ condenser fan motor, the process typically begins with a detailed engineering review. The manufacturer collects all relevant specifications: required horsepower, speed, voltage, frame mounting dimensions, shaft details, enclosure rating, thermal protection type, and any special environmental requirements. Using computer‑aided design (CAD) and electromagnetic simulation tools, the manufacturer creates a winding configuration and mechanical layout that exactly meets the target performance curve.
Prototype motors are then built and tested under real‑world conditions, including thermal cycling, vibration testing, and accelerated life testing. Only after passing these rigorous tests does the motor enter production. This systematic approach ensures that the final product not only physically fits the equipment but also operates reliably across its entire expected service life.
The 48YZ condenser fan motor is a versatile and adaptable solution for a wide range of cooling applications. Its unique combination of a compact 48‑frame body, the mounting compatibility of a 56‑frame pattern, and the additional shaft and feature variations implied by the “Z” suffix make it an invaluable tool for both equipment manufacturers and maintenance professionals.
However, when standard production models cannot precisely match the mechanical or electrical requirements of a specific system, a custom 48YZ condenser fan motor becomes the only logical choice. By partnering with an experienced motor engineering and manufacturing team, customers can obtain a motor that installs without modifications, operates at peak efficiency, and delivers years of trouble‑free service. For any application where a standard motor falls short, investing in a custom 48YZ design is a decision that pays for itself many times over in reduced downtime, lower energy costs, and enhanced system reliability.
