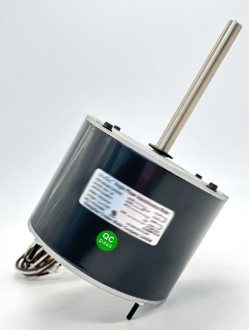

In the HVAC and refrigeration industries, selecting the right condenser fan motor is not merely a matter of matching horsepower and voltage. The physical frame size, mounting configuration, and shaft design play equally critical roles in ensuring long‑term reliability and optimal system performance. Among the many NEMA frame standards available, the 48Y condenser fan motor occupies a unique and highly practical position. When standard production models cannot meet the specific demands of an application, a custom 48Y condenser fan motor becomes the ideal engineering solution for OEMs, maintenance professionals, and system designers seeking a perfect fit.
The NEMA 48Y frame is a variation of the standard NEMA 48 frame, which typically features a body diameter of 5‑5/8 inches and a 1/2‑inch shaft diameter. The “Y” designation indicates a specific variation in mounting hole patterns or shaft extension details. In the case of the 48Y frame, the most significant distinction lies in its bolt circle geometry: the 48Y frame shares the same mounting hole pattern as the larger NEMA 56 frame. This seemingly small difference has enormous practical value.
Because the 48Y frame motor can be mounted directly onto equipment originally designed for a 56 frame motor, it offers tremendous flexibility for retrofits, upgrades, and cross‑platform standardization. At the same time, the 48Y retains the compact body diameter of the standard 48 frame, making it easier to install in tight condenser compartments where a full‑size 56 frame motor might not fit. In other words, the 48Y provides the best of both worlds: the compact body of a 48 frame and the mounting compatibility of a 56 frame.
Off‑the‑shelf 48Y motors serve many general‑purpose applications adequately. However, HVAC systems and refrigeration units vary enormously in their design constraints and operating environments. A condenser fan motor that works perfectly in one unit may run too hot, spin too fast, draw excessive current, or fail prematurely in another. Customization addresses these mismatches at the source.
When engineers choose a custom 48Y condenser fan motor, they gain the ability to specify every performance parameter precisely. Horsepower, rotational speed, voltage, frequency, insulation class, bearing type, thermal protection, shaft length and configuration, enclosure rating, and even paint color can be tailored to exact requirements. The result is a motor that operates at peak efficiency, consumes the minimum necessary energy, withstands the specific environmental stresses of the installation site, and integrates seamlessly into the existing equipment design.
Understanding what can be customized helps buyers communicate effectively with motor manufacturers. The following are the primary adjustable characteristics of a custom 48Y condenser fan motor.
Horsepower and Torque. Custom 48Y motors can be wound to deliver fractional horsepower outputs from as low as 1/8 HP up to 1 HP or more, depending on the stack length and winding design. Torque characteristics—whether high starting torque for hard‑starting applications or lower torque for fan‑loaded systems—can also be optimized.
Rated Speed. Typical speeds for condenser fan motors include 825 RPM, 850 RPM, 1,075 RPM, 1,140 RPM, and 1,725 RPM. A custom motor can be designed for any specific speed within the operating range of the frame size. Multi‑speed designs, offering two or three discrete speed settings, allow the motor to adapt to varying cooling demands.
Voltage and Phase. Single‑phase 48Y motors are most common in residential and light commercial HVAC equipment, available in 115V, 208‑230V, and sometimes dual‑voltage configurations. Three‑phase versions can also be produced for industrial or commercial applications requiring higher efficiency and reliability.
Shaft Configuration. The 48Y frame standard typically uses a 1/2‑inch diameter shaft, but the length, flats, keyways, threads, and whether the shaft extends from one or both ends (double shaft) can all be customized. Some applications require a shorter shaft to clear surrounding components, while others need extra length to accommodate a specialized fan blade hub.
Mounting Details. One of the benefits of the 48Y frame is its compatibility with 56‑frame mounting patterns. Custom motors can have mounting holes drilled and tapped to match specific equipment chassis. Threaded studs, resilient mounting rings, or custom base plates can also be provided.
Insulation System and Temperature Rating. Standard condenser fan motors often use Class B insulation (130°C), but Class F (155°C) or Class H (180°C) insulation can be specified for high‑temperature environments. Custom motors can also be wound with moisture‑resistant magnet wire and sealed with vacuum pressure impregnation (VPI) for use in humid or chemically aggressive atmospheres.
Enclosure Type. Totally Enclosed Air‑Over (TEAO) is the most common enclosure for outdoor condenser fan motors, providing excellent protection against rain, dust, and insects while using the air stream from the fan for cooling. Open Air‑Over (OAO) enclosures are lighter and less expensive but offer less protection. Fully enclosed non‑ventilated (TENV) designs may also be requested for special situations.
Bearing Type. Ball bearings are nearly universal in modern condenser fan motors because they can withstand heavy axial and radial loads and have a long service life. However, precision‑grade bearings, shielded vs. sealed bearings, and bearing lubrication type (standard grease vs. high‑temperature grease) can all be customized.
Thermal Protection. Automatic reset thermal overload protectors built into the motor windings are standard on many custom 48Y motors, but manual reset protectors or no internal protection (relying on external overloads) can be specified according to the safety requirements of the final equipment.
Custom 48Y motors are used across a broad spectrum of cooling equipment. Residential air conditioning condensers represent the largest single application, where a quiet, efficient, and reliably starting motor is essential for homeowner satisfaction. Commercial condensing units for walk‑in coolers and freezers also rely heavily on 48Y motors because these units often operate in challenging environments—rooftops exposed to summer heat, outdoor loading docks, or indoor mechanical rooms with elevated ambient temperatures.
Heat pump systems, which serve both heating and cooling functions, benefit significantly from custom 48Y motors designed for year‑round operation in all weather conditions. Refrigeration display cases in supermarkets and convenience stores, particularly those with remote condensing units, frequently specify 48Y motors for their combination of compact size and robust mounting compatibility.
One particularly valuable use case is replacing obsolete or discontinued motors. When a legacy condensing unit uses a motor that is no longer produced, a custom 48Y motor can be engineered to match the original’s shaft dimensions, mounting holes, and electrical characteristics exactly—saving the cost of modifying the equipment or replacing the entire unit.
When planning to order a custom 48Y condenser fan motor, several factors should be considered in advance. First, the operating ambient temperature range is critical. A motor installed in Phoenix, Arizona, during summer sees vastly different conditions than one installed in northern Canada. Providing the manufacturer with the expected minimum and maximum ambient temperatures ensures proper insulation and lubricant selection.
Second, the duty cycle matters. Continuous duty, where the motor runs 24 hours per day, requires different design margins than intermittent duty with frequent starts and stops. Third, the direction of rotation (clockwise or counterclockwise as viewed from the shaft end) and whether reversible rotation is needed should be specified clearly.
Finally, it is essential to provide sample fan blades or detailed specifications of the fan load. The relationship between motor torque and fan blade aerodynamic resistance determines whether the motor will start reliably and reach its rated speed under all operating conditions.
The NEMA 48Y condenser fan motor is a versatile and practical solution for a wide range of HVAC and refrigeration applications. Its unique combination of a compact 48‑frame body and 56‑frame mounting pattern makes it an excellent choice for both new equipment design and field retrofits. When generic motors cannot deliver the precise performance, durability, or fit required, a custom 48Y condenser fan motor provides the answer.
By working with an experienced manufacturer that understands the intricacies of motor winding, insulation systems, bearing selection, and thermal management, engineers and procurement professionals can obtain a motor that is perfectly matched to their application. The investment in customization pays dividends in reduced energy consumption, fewer service calls, extended equipment life, and ultimately, greater customer satisfaction. For any application where the standard solution falls short, exploring a custom 48Y condenser fan motor is a decision that makes sound technical and economic sense.
