In the heating, ventilation, and air conditioning (HVAC) industry, the condenser fan motor is a small but mighty component. It is responsible for drawing ambient air across the condenser coil, dissipating the heat absorbed from indoor spaces, and ensuring the refrigeration cycle operates efficiently. While standard condenser fan motors are widely available, they do not always meet the unique demands of every system. This is where a custom HVAC condenser fan motor becomes an indispensable solution. By tailoring every specification—from shaft length and mounting configuration to voltage, speed, and thermal protection—a custom motor delivers a perfect fit, superior performance, and extended service life.
An HVAC condenser fan motor is a type of electric motor specifically designed to drive the fan blade(s) in the outdoor condensing unit of an air conditioner, heat pump, or refrigeration system. Its primary function is to move a high volume of air across the condenser coil, facilitating the transfer of heat from the high‑pressure refrigerant vapor to the outside environment. This process condenses the refrigerant into a liquid, allowing it to return indoors and absorb more heat.
These motors are typically single‑phase, fractional horsepower units (ranging from 1/8 HP to 1 HP or more) and operate at speeds between 800 and 1,800 RPM. They must withstand harsh outdoor conditions: rain, snow, extreme heat, UV radiation, dust, and sometimes corrosive salt spray or chemical fumes. As a result, most condenser fan motors feature a Totally Enclosed Air‑Over (TEAO) enclosure, which protects internal components while using the fan’s airflow for cooling.
At first glance, a standard, off‑the‑shelf condenser fan motor seems like a convenient and cost‑effective choice. However, HVAC equipment is not always designed around standard motors. Large original equipment manufacturers (OEMs) often introduce proprietary mounting patterns, non‑standard shaft lengths, unique terminal box orientations, or specialized thermal protectors to differentiate their products. When a standard motor is used in such equipment, several problems can arise:
Physical mismatch: Mounting holes may not align, requiring drilling or adapter plates.
Shaft incompatibility: The shaft may be too long, too short, or lack the correct flat or keyway for the fan blade hub.
Electrical mismatch: Voltage, phase, or speed may not match the system’s requirements, leading to poor airflow, overheating, or premature failure.
Environmental vulnerability: Standard insulation or corrosion protection may be inadequate for coastal or industrial environments.
Obsolete replacement needs: Older equipment often uses motors that are no longer in production, leaving no direct replacement.
A custom HVAC condenser fan motor solves all these issues by being engineered precisely for the target application. The result is a drop‑in replacement or a purpose‑built component for new equipment that installs without modification, runs efficiently, and lasts for years.
When you partner with a manufacturer that specializes in custom motors, virtually every aspect of the condenser fan motor can be tailored. Below are the most common parameters that customers customize.
Frame size: While many motors use NEMA 48, 48Y, or 48YZ frames (with a 5.6‑inch body diameter), other frame sizes are available. The overall length (stack height) can be adjusted to change power output.
Mounting pattern: The number, diameter, and position of mounting holes on the bolt circle can be customized to match any OEM chassis. Resilient mounting rings or threaded studs are also options.

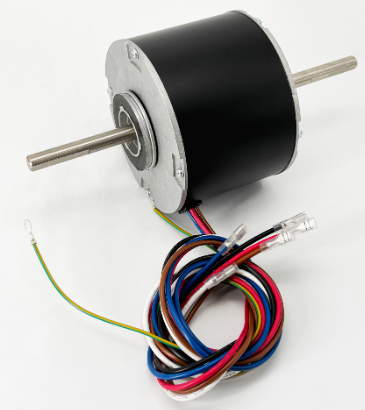

Shaft configuration: Standard shafts are typically 1/2‑inch diameter, but other diameters, lengths, flat sizes, keyways, threads, or double‑ended shafts can be specified.
Voltage and frequency: Common voltages include 115V, 208‑230V, 277V, 460V, and dual‑voltage designs. Frequency options are 50 Hz, 60 Hz, or 50/60 Hz for global compatibility.
Phase: Most condenser fan motors are single‑phase, but three‑phase versions are available for industrial equipment.
Horsepower: From 1/12 HP up to 1.5 HP or more, depending on the frame size and stack length.
Speed: Fixed speeds such as 825, 1,075, 1,140, or 1,725 RPM are common, but custom speeds are achievable. Multi‑speed motors (2 or 3 speeds) allow the fan to adjust to changing cooling loads.
Motor type: Permanent Split Capacitor (PSC) designs are economical and reliable. Electronically Commutated Motors (ECM) offer higher efficiency and variable speed control but require more complex electronics.
Insulation class: Standard is Class B (130°C). Class F (155°C) or Class H (180°C) can be specified for high‑ambient environments.
Thermal overload protection: Automatic reset protectors are most common. Manual reset or no internal protection (relying on external overload relays) can also be provided. Some custom motors include thermistors or RTD sensors for remote monitoring.
Enclosure type: TEAO is standard for outdoor condensers. Other options include Open Air‑Over (OAO) for protected locations, Totally Enclosed Non‑Ventilated (TENV), or Totally Enclosed Fan‑Cooled (TEFC).
Corrosion protection: For coastal or chemical plant environments, epoxy‑encapsulated windings, stainless steel hardware, and specialized paint systems (e.g., electrodeposition coating) dramatically extend motor life.
Moisture resistance: Sealed bearings, drain holes, and moisture‑resistant magnet wire prevent internal condensation damage.
Bearing type: Precision ball bearings are standard. For extremely quiet residential applications, specially selected low‑noise ball bearings can be used. Sealed bearings prevent contamination.
Lubrication: High‑temperature grease for hot climates, or food‑grade grease for commercial refrigeration applications.
Terminal box location and orientation: Can be positioned to align with equipment access panels.
Lead wires: Length, gauge, color coding, and terminal type (ring, spade, quick‑connect) can be customized to simplify field wiring.
Custom condenser fan motors serve a broad range of industries and scenarios:
Residential HVAC: New construction or replacement motors for central air conditioners and heat pumps, where noise levels and energy efficiency are critical.
Commercial refrigeration: Walk‑in coolers and freezers, display cases, and ice machines often require custom shaft lengths or mounting patterns to fit tight equipment rooms.
Rooftop units (RTUs): These units face extreme temperature swings and UV exposure. Custom motors with high‑temperature insulation and corrosion‑resistant coatings are common.
Telecommunications and data center cooling: Precision cooling systems demand motors with redundant thermal protection and extended life bearings to avoid costly downtime.
Medical and laboratory refrigeration: Ultra‑low temperature freezers and pharmacy refrigerators require motors with strict temperature ratings and low electromagnetic interference.
OEM equipment manufacturing: Companies producing condensing units or packaged HVAC systems often standardize on a custom motor that fits their unique chassis and performance targets.
A reliable custom motor manufacturer follows a disciplined engineering process. It begins with a detailed consultation where the customer provides existing motor specifications, equipment drawings, or a sample unit. The manufacturer then uses computer‑aided design (CAD) and electromagnetic simulation to develop a winding configuration and mechanical layout. Prototype motors are built and subjected to rigorous testing: thermal cycling, vibration analysis, dielectric strength, and accelerated life testing. Only after passing these tests does the motor enter full production. This approach ensures that every custom motor performs exactly as intended.
The condenser fan motor is the unsung hero of every HVAC system. When it fails or underperforms, the entire system suffers—higher energy bills, insufficient cooling, and costly breakdowns. Standard motors can often get the job done, but they are not a universal answer. For equipment with unique dimensions, specific performance requirements, or harsh operating environments, a custom HVAC condenser fan motor offers the only true solution.
By working with an experienced manufacturer that provides full customization—mechanical, electrical, thermal, and environmental—you can obtain a motor that fits perfectly, operates efficiently, and delivers years of reliable service. Whether you are an OEM designing next‑generation equipment or a facility manager seeking a dependable replacement, investing in a custom condenser fan motor is a decision that pays for itself many times over in reduced downtime, lower energy consumption, and enhanced system longevity.
