When an air conditioning or heat pump system stops moving air across the outdoor coil, the culprit is often a failed fan motor. In the vast majority of residential and light commercial HVAC systems, that component is a 230V condenser fan motor. This voltage standard powers millions of outdoor condensing units across North America, making it one of the most commonly replaced motors in the HVAC industry.
At Trustec, we help contractors, facility managers, and homeowners understand the technical details behind this essential component. In this comprehensive guide, we explain what a 230V condenser fan motor is, how it differs from other voltage ratings, how to select the correct replacement, common failure modes, and best practices for extending motor life.

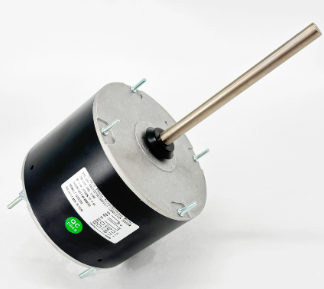

A 230V condenser fan motor is an alternating current (AC) electric motor designed to operate at a nominal voltage of 230 volts, typically at 60 Hz. This motor is mounted inside the outdoor condensing unit of a split air conditioning system, heat pump, or commercial refrigeration condenser. Its sole purpose is to drive the fan blades that pull ambient air across the condenser coil, removing heat from the refrigerant.
In practice, 230V motors are designed to tolerate a voltage range from approximately 207V to 253V (10% below and 10% above nominal). This tolerance accounts for voltage drop during peak utility demand, long wire runs, and normal grid fluctuations.
One of the most common points of confusion in the HVAC field is the difference between 230V, 208-230V, and 115V condenser fan motors.
Feature | 115V Motor | 230V Motor | 208-230V Motor |
|---|---|---|---|
Nominal voltage | 115V | 230V | 208V or 230V |
Common applications | Window units, mini-splits, PTACs | Most residential split systems | Apartments, commercial buildings |
Amperage (1/4 HP) | ~3.5 amps | ~1.8 amps | ~1.9 amps at 230V, ~2.1 amps at 208V |
Wiring requirements | 14-12 AWG | 14 AWG typical | 14 AWG typical |
Starting torque | Lower | Higher | Higher |
A 230V condenser fan motor is designed specifically for residential applications where the utility supplies 240V nominal (commonly labeled as 230V or 240V). A 208-230V motor is a broader rating that also accommodates commercial 208V systems. For most homes, a dedicated 230V motor works perfectly.
Understanding the operating sequence helps with troubleshooting.
Cooling Demand Signal: The indoor thermostat senses a temperature above the set point and sends a 24V signal to the contactor relay inside the outdoor unit.
Contactor Closure: The contactor closes its contacts, sending 230V power from the disconnect to both the compressor and the 230V condenser fan motor.
Fan Rotation: The motor shaft spins the attached fan blades, typically at 810, 825, 1075, or 1100 RPM, depending on the specific motor design.
Heat Rejection: As ambient air is drawn across the condenser coil, heat from the high-pressure refrigerant transfers to the air. The refrigerant condenses from a gas to a liquid.
Continuous Cycle: The motor runs continuously until the thermostat is satisfied, at which point the contactor opens and power is removed.
You will find a 230V condenser fan motor in the following equipment:
Residential central air conditioners (1.5 to 5 tons) from brands such as Carrier, Trane, Lennox, Rheem, Goodman, American Standard, Bryant, and York.
Residential heat pumps in both standard and premium efficiency models.
Packaged air conditioners and heat pumps (all-in-one rooftop or slab-mounted units) up to 5 tons.
Small commercial package units (typically 2 to 5 tons) in office buildings, restaurants, and retail spaces.
Remote condensers for commercial refrigeration in walk-in coolers and freezers.
Replacing a failed 230V condenser fan motor requires matching several specifications. Guessing leads to premature failure or poor system performance.
Common horsepower ratings for 230V condenser fan motors include:
1/6 HP (smaller 1.5-2 ton units)
1/4 HP (most common for 2-4 ton units)
1/3 HP (4-5 ton units and high-static applications)
1/2 HP (large residential and light commercial)
Rule: Never install a lower HP motor than the original. A higher HP motor is acceptable if the RPM matches and the mounting frame fits.
Matching RPM is critical for proper heat exchange.
810 RPM: Older residential units
825 RPM: Common universal replacement speed
1075 RPM: Standard for most modern residential condensers
1100 RPM: Some brands (Carrier, Bryant)
1625 RPM: Commercial applications
Using a motor with significantly higher RPM will move too much air, reducing the contact time (dwell time) needed for efficient heat transfer. A slower RPM will not reject enough heat, causing high head pressure and compressor overheating.
The frame size determines physical mounting dimensions.
48 frame: Most common residential size
48Y frame: Same mounting as 48 but with different stud spacing
51 frame: Larger units and some commercial applications
Universal replacement 230V condenser fan motors typically include multiple mounting brackets or a reversible base plate to fit all common frame sizes.
Diameter: 1/2 inch (most common) or 5/8 inch
Length: 4 inches to 6 inches, measured from the mounting face to the shaft end
Measure your existing shaft before ordering. A shaft that is too long will push the fan blade too low in the venturi ring. A shaft that is too short will not fully engage the blade hub, leading to wobble and eventual blade separation.
Most residential 230V condenser fan motors rotate counterclockwise when viewed from the top (shaft end) looking down. However, some brands use clockwise rotation. Universal motors allow rotation reversal by swapping the polarity of the start winding leads.
The vast majority of 230V condenser fan motors are permanent split capacitor (PSC) motors. The run capacitor stays in the circuit at all times, providing a phase shift that improves both starting torque and running efficiency.
When replacing a 230V condenser fan motor, always test or replace the run capacitor simultaneously. A weak capacitor causes:
30-50% reduction in starting torque
15-25% increase in running amperage
Motor overheating and thermal overload trips
Preminent winding insulation failure
The correct capacitor microfarad (µF) rating and voltage rating are printed on the motor nameplate. Common values for 230V condenser fan motors range from 3 µF to 15 µF, with voltage ratings of 370V or 440V.
Recognizing early warning signs can prevent a complete system shutdown.
1. The Fan Does Not Spin
The compressor hums, but the fan blades remain stationary. This could be a failed run capacitor, a seized motor bearing, or burned internal windings.
2. Intermittent Operation
The fan starts, runs for 5-15 minutes, then stops while the compressor continues running. After cooling down, it restarts. This pattern indicates a failing thermal overload protector due to worn bearings or failing windings.
3. Unusual Noises
Grinding or scraping: Worn ball bearings
Loud humming with no rotation: Failed capacitor or seized shaft
Rattling: Loose fan blade hub or debris inside the unit
Squealing on startup: Bearing wear or lack of lubrication
4. Slow Blade Rotation
The fan spins, but noticeably slower than normal. This reduces heat rejection, leading to high refrigerant pressures, increased energy use, and eventual compressor damage.
5. Tripped Circuit Breaker
A shorted 230V condenser fan motor can draw locked rotor amps (LRA), instantly tripping the outdoor unit's breaker.
6. Hot Air from Vents
If the motor spins at the wrong speed or stops intermittently, the system cannot reject heat properly, resulting in warm or only slightly cool air from indoor registers.
Before condemning the motor, perform these basic checks.
Step 1: Check Power to the Unit
Use a multimeter to verify 230V at the contactor line side. No voltage indicates a tripped breaker, blown fuse, or failed disconnect.
Step 2: Test the Contactor
With the thermostat calling for cooling, check for 230V on the load side of the contactor. No voltage with voltage on the line side indicates a bad contactor coil or welded contacts.
Step 3: Test the Run Capacitor
Disconnect power. Discharge the capacitor using a resistor or insulated screwdriver. Measure microfarads with a capacitance meter. Replace if reading is more than 10% below the nameplate rating.
Step 4: Test Motor Windings
Disconnect the motor wires. Measure resistance between common, start, and run terminals. An open winding (infinite resistance) or a short to ground (continuity between any terminal and the motor frame) indicates a failed motor.
Step 5: Try to Spin the Shaft by Hand
With power off, try turning the fan blade. If the shaft does not spin freely, the bearings are seized.
Preventive maintenance directly extends motor life.
Keep the Condenser Coil Clean: Dirty coils raise condensing temperature and pressure, forcing the motor to work harder. Clean the coil annually with a hose and coil cleaner.
Clear Debris from the Unit: Remove leaves, grass, cottonwood seeds, and other debris from the fan grille and inside the cabinet.
Maintain Clearance: Ensure at least 24 inches of clearance around the outdoor unit. Overgrown bushes block airflow.
Check the Run Capacitor Annually: Have a technician test the capacitor before each cooling season.
Listen for Noises Monthly: Walk past the outdoor unit while it is running. Any new noise is worth investigating.
Replace the Contactor When Pitted: Worn contactor contacts cause voltage drop and arcing, reducing motor life.
At Trustec (www.trustecgroup.com), we understand that a failed 230V condenser fan motor cannot wait. Every motor in our inventory is selected for reliability, efficiency, and ease of installation. Trustec motors feature:
High-purity copper windings for maximum electrical conductivity and heat dissipation.
Sealed ball bearings that never require lubrication and operate quietly for years.
Automatic thermal overload protection to prevent fire hazards and complete burnout.
Class F insulation rated for 155°C (311°F) to withstand extreme operating conditions.
Universal mounting brackets that fit 48, 48Y, and 51 frame applications.
Easy-to-follow wiring diagrams with color-coded leads.
The 230V condenser fan motor is a small but critical component that protects your much larger investment—the compressor and the entire HVAC system. Ignoring early warning signs such as slow spinning, unusual noises, or intermittent operation leads to high head pressure, compressor overheating, and eventual system failure costing thousands to replace.
By understanding the specifications required for replacement, testing the run capacitor, and performing basic preventive maintenance, you can extend motor life and maintain efficient cooling. When replacement becomes necessary, choosing a quality 230V condenser fan motor from Trustec ensures reliable performance season after season.
